Bowers & Wilkins (B&W) MT-50 5.1 Channel Speaker Package with ASW608 compact subwoofer
Take five compact, discreet and high-performance M-1 speakers. Add the punchy, powerful and yet equally unassuming ASW608 subwoofer. The result is a high-performance, full-range surround sound system for television, music and movies.
Usefully compact yet startlingly potent
The M-1 is just 25cm high and sits on a versatile and good-looking stand. And our engineers have somehow managed to incorporate Nautilus tube technology for extraordinary scale and fidelity of performance.
Designed to make your room go “boom”
If it’s deep, punchy and perfectly controlled bass from a small, unassuming subwoofer you want, don’t look any further. The ASW608 may look neat and unassuming, but it’s got the explosive power and control your favourite soundtracks demand.
As easy to position as it is to listen to
M-1 is as happy to be fixed to the wall as it is to stand on a surface – just choose.
An advanced composite driver helps ASW608 deliver the goods
Big sonic presence from a tidy little speaker
The little M-1 is fitted with a 25mm tweeter and a 100mm mid/bass driver. Big drivers/small cabinet = impressive scale of sound.
Technical Specifications of B&W M-1 Lifestyle Satellite Speaker:
Speakers | B&W M-1 Satellite Speaker |
Speaker Use | Satellite Speaker |
Design |
2-way vented-box system
|
Drive Units | 1x ø25mm (1in) metal dome high-frequency 1x ø100mm (4in) woven glass fibre cone bass/midrange |
Frequency range
|
-6dB at 55Hz and 50kHz
|
Frequency response
|
64Hz – 23kHz ±3dB on reference axis
|
Crossover frequency
|
4kHz
|
Dispersion
|
Within 2dB of reference response Horizontal: over 60º arc Vertical: over 10º arc
|
Sensitivity
|
85dB spl (2.83V, 1m)
|
Harmonic distortion
|
2nd and 3rd harmonics (90dB, 1m) <1% 120Hz – 30kHz
|
Crossover frequencies
|
4kHz
|
Nominal impedance
|
8Ω (minimum 4Ω)
|
Recommended Amplifier Power
|
20W – 100W into 8Ω on unclipped programme
|
Dimensions
|
Height: 248mm (9.8in)
Width: 114mm (4.5in) |
Weight |
2.3kg (5lb) including table stand
|

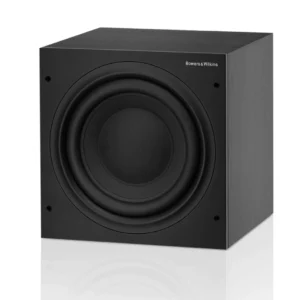

Technical Specifications of B&W ASW608 Powered Subwoofer:
Model # | B&W ASW608 Subwoofer |
Design |
Powered subwoofer
|
Enclosure
|
Active closed-box subwoofer system
|
Drive Units |
200mm (8in) paper / Kevlar® cone long-throw
|
Power Output
|
200 Watts
|
Rated power consumption
|
40 Watts
|
Standby power consumption
|
0.5 Watts |
Input impedance
|
33k
|
Signal/Noise
|
>90dB
|
Sensitivity
|
87dB spl (2.83V, 1m)
|
Inputs |
Stereo Line In (RCA Phono)
Speaker In (Binding post) |
Functions |
Volume level – line in
Volume level – speaker in |
Power consumption |
250VA
|
Dimensions
|
Height: 260mm (10.2in) not including feet
Width: 260mm (10.2in) Depth: 330mm (13in) including grille and controls
|
Weight |
8.85kg (19.5lb)
|
