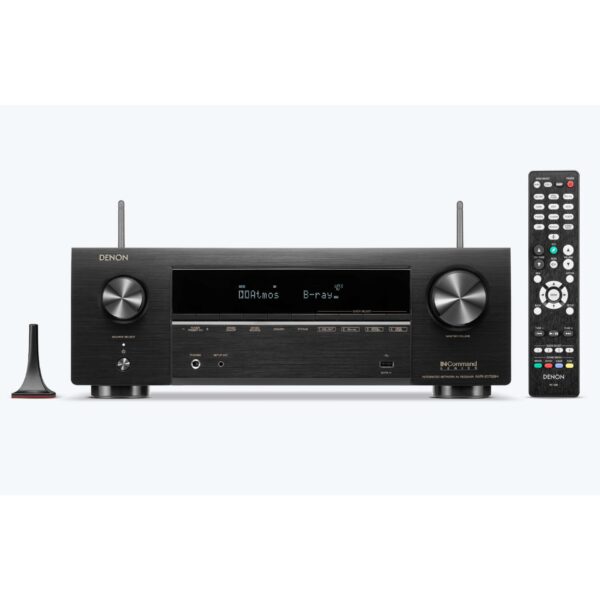

Denon AVR-X1700H AV Receiver
The Denon AVR-X1700H AV Receiver is a 7.2 Ch. 145W 8K AV Receiver with HEOS® Built-in
The Denon AVR-X1700H AV Receiver is a home theater amplifier that provides a high-performance audio and video experience. It delivers immersive and multi-dimensional audio and video experiences to bring your entertainment to life.
With an output of 80 watts per channel, the Denon AVR-X1700H is capable of driving different types of speakers, from small bookshelf speakers to larger floor-standing models. It provides various connectivity options, including 8 HDMI inputs and 2 outputs, as well as built-in Wi-Fi and Bluetooth for wireless streaming from your favorite devices.
Enjoy an immersive surround sound experience with advanced audio formats like Dolby Atmos, DTS:X, and DTS Virtual:X. The AVR-X1700H also features advanced room calibration technology, which uses an included microphone to automatically optimize the sound for your specific room setup.
You can control the Denon AVR-X1700H hands-free with Amazon Alexa, Google Assistant, and Apple Siri, making it convenient to use. Additionally, it has HEOS multi-room audio technology for streaming music throughout your home.
In summary, the Denon AVR-X1700H is a powerful and versatile home theater receiver that offers an impressive combination of features, performance, and convenience.
Powerful, discrete 7-channel amplifier
Delivers maximum performance and 145W per channel to provide the classic and dynamic Denon sound experience.
Advanced 8K HDMI video with eARC support
Three 8K inputs support the latest HDMI specifications—8K/60Hz, select 4K/120Hz pass-through, VRR, Dolby Vision™, HDR10+, ALLM.
Full 3D audio support with virtual surround sound
Enjoy immersive 3D audio with Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, and DTS Virtual:X™.
Enhanced gaming experiences
Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM) care for amazing imaging as well as reduced lag and latency.
Wireless music streaming
Enjoy music services like Spotify®, Pandora®, Amazon Music HD, and more with HEOS® Built-in.
Audyssey room correction
Precisely analyzes the output of each speaker to optimize every channel’s performance.
Built-in Bluetooth, Wi-Fi
Dual-antenna transceiver for robust Bluetooth and Wi-Fi streaming even in congested environments.
Defining audio excellence
With a deep legacy of firsts and amazing sound, Denon is the defining audio company of Japan.
-
TECHNICAL SPECIFICATIONS of the Denon AVR-X1700H AV Receiver
Specifications
Number of Power Amps 7 Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) 80 W Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 120 W Power Output (6 ohm, 1 kHz, 1% 1ch Drive) 145 W General
Speaker impedance 4-16Ω/ohms Input sensitivity 200 mV Frequency response 10 Hz – 100 kHz — +1, –3 dB (Direct mode) S/N Ratio 98dB (IHF-A weighted, Direct mode) FM section (Tuning frequency range) 87.5 – 107.9 MHz Power Supply AC 230 V, 50 Hz Power Consumption in W 440 Power Consumption No-Sound (ECO On / Off) in W 29 W / 39 W Weight in kg 8.6 3.5mm audio line-in connection Yes System Remote Control RC-1244 Standby Consumption in W 0.1 CEC Standby Consumption in W 0.5 Carton Maximum Dimensions (W x D x H) in mm 523 x 435 x 232 Carton Weight (inc. product) in kg 10.6 Available colours: Black / Premium Silver Yes / No Maximum Dimensions (W x D x H) in mm 434 x 339 x 151 mm Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
【 w/o Antenna :(W x D x H) in mm】434 x 339 x 215 mm Inputs Outputs
HDMI In / Out 6 / 1 Composite In / Out 2 / 1 Phono (MM) In Yes Analogue In/out 2 / No Digital Optical In/Out 2 / No Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes Pre-out / Main-in 0.2 ch / no Multi-Room Speaker Terminal assignable Headphone output Yes Ethernet Yes AM/FM Tuner Yes USB Audio / Made for iPod / Made for iPhone Yes / AirPlay / AirPlay Bi-amp Drive assignable Speaker A / B assignable Number of Speaker Terminals 7 Subwoofer Out 2 Multichannel Preout Yes (0.2) Digital Outputs: Coaxial / Optical 2 / 0 Digital Coaxial In / Out 2 / 0 DAB / DAB+ tuner Yes FM Tuner with RDS Yes Multichannel Surround
Max Number of Processing (Preamp) Channels 7.1 DTS HD Master / DTS:X Yes / Yes DTS Neo:X / DTS Neural:X No / Yes DTS Virtual:X Yes Dolby TrueHD / Dolby Atmos Yes / Yes Dolby ProLogic Ilz / Dolby Surround No / Yes Dolby Height Virtualization Yes Multichannel Stereo Yes Dialog Enhancer Yes Sound Enhancements
Discrete Power Amplifiers 7 Audyssey Dynamic EQ / Dynamic Volume Yes / Yes Speaker Setup Presets 2 Audyssey MultEQ XT Audyssey APP Support Yes Compressed Audio Restorer Yes Network
Gapless playback Yes (FLAC, WAV, ALAC, DSD) Internet Radio TuneIn Compatible with Remote APP for Smart Phones Android / iOS Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle HEOS Multiroom and Streaming Yes Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes DSD Audio Streaming up to DSD5.6 FLAC HD 192/24 Yes WAV 192/24 Yes ALAC 192/24 Yes AirPlay 2 Yes Roon Tested Yes Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes Amazon Prime Music* / Pandora* Yes / Yes Ethernet Ports Yes Wi-Fi Yes Bluetooth Yes Bluetooth Headphone transmission Yes HDMI
HDMI Inputs: Back / Front 6 (3x 8K) / 0 HDMI max Resolution (8k / 4k) 8k/60 – 4k/120 HDMI Outputs: Main / Zone 1 / – HDMI to HDMI Scaling up to 8K 60/50 HDCP2.3 support Yes HDMI: 8K / 4K / CEC / eARC Yes / Yes / Yes / Yes HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG Yes / Yes / Yes / Yes HDMI: ALLM / QMS / QFT / VRR Yes / Yes / Yes / Yes HDMI pass-though in standby mode Yes Multi-room CI
Multiroom zones 2 Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes HEOS Multiroom integrated Yes TV Sound grouping Yes Main room multichanel audio – Zone stereo downmix Yes Zone Audio Output: Speaker / Preout Yes / No Webbrowser User Interface Yes IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes Others
Auto Speaker Setup by Microphone Audyssey MultEQ XT FL Display 1 line Graphic User Interface – GUI Hybrid GUI GUI Languages 9 Voice Control – Works with Amazon Alexa Yes Voice Control – Google Assist / Apple Siri Yes Setup Assistent Yes Quick Select Plus / Quick Select Yes / No Firmware Update by: Network / USB Yes / Yes Variable Cross Over Yes Optimized Bass Redirection Yes ECO Mode Yes Auto Power Off Yes Sleep Timer Yes
