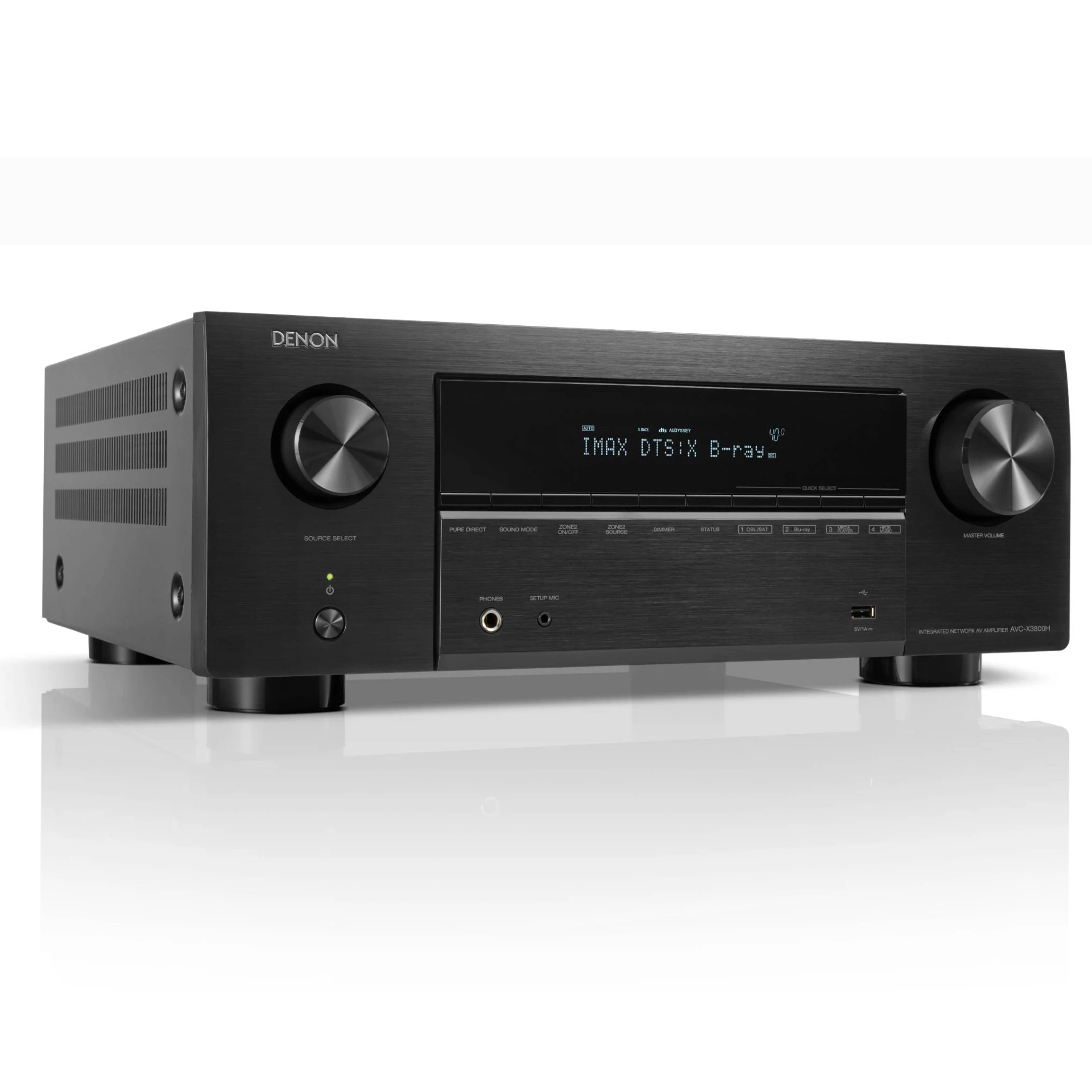

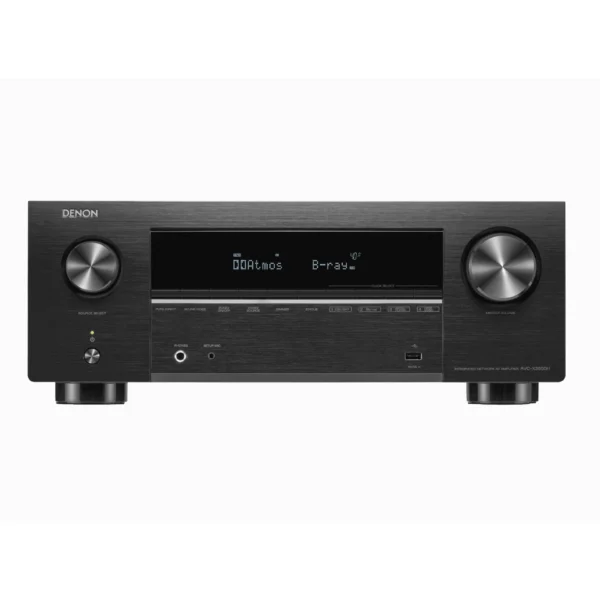

Denon AVR-X3800H AV Receiver
The Denon AVR-X3800H AV Receiver is an 8K video and 3D audio experience from a 9.4-channel amplifier.
The Denon AVR-X3800H AV Receiver has nine channels of amplification, up to four independent subwoofers, Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X3800H envelops larger living spaces in theatre-quality sound. Enjoy amazing 8K video quality with HEOS® Built-in, wirelessly stream and share online music between rooms.
High-performance nine-channel amplifier
Discrete high-current amplifiers deliver up to 105W per channel (at 8 ohms, 20- 20kHz, THD 0.08%)—enough power to drive any speaker.
3D audio experience
Get enveloped in sound with Dolby Atmos®, DTS: X®, IMAX Enhanced and Auro 3D, along with Dolby Surround, DTS Neural:X and Auro-Matic upmixer to optimize legacy content.
Configuration flexibility
Denon AVR-X3800H AV Receiver offers many setup options and flexibility to adjust your home theatre to meet your needs. Supports 11.4 channel processing capability, Pre-Amplifier mode, and optional Dirac Live upgradability (with a fee, coming soon in 2023).
Advanced 8K home theatre
8K video is supported on all six HDMI inputs and two of the three outputs. Enjoy easy video compatibility and great picture quality with HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR passthrough.
Specifications of the Denon AVR-X3800H AV Receiver
-
TECHNICAL SPECIFICATIONS
Multichannel Surround
DTS HD Master, DTS:X, DTS:X Pro Yes, Yes, No DTS Neo:X, DTS Neural:X No, Yes DTS Virtual:X Yes IMAX Enhanced Yes Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music Yes, Yes, Yes, Yes Dolby ProLogic Ilz, Dolby Surround No, Yes Auro 3D Yes 360 Reality Audio / MPEG H Yes, Yes Multichannel Stereo Yes Max. Number of Processing (Pre-Amp) Channels 11.4 Sound Enhancements
Discrete Power Amplifier Yes Pure Direct Yes Audyssey MultEQ XT32 Audyssey Dynamic EQ, Dynamic Volume Yes, Yes Audyssey LFC Yes Dirac Live Upgradability Yes Compressed Audio Restorer Yes Network
Media Server Yes HEOS Wireless Multi-Room Technology Yes Alexa / Google Voice Assistant / Apple HomePod Yes, Yes, Yes Lossy Formats: MP3, WMA, AAC Yes, Yes, Yes Lossless Formats: FLAC, ALAC, WAV Yes, Yes, Yes Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) Yes, Yes, Yes DSD Audio Streaming Yes (2.8/5.6MHz) AirPlay 2 Yes TuneIn Yes Spotify Connect Yes Pandora Yes SiriusXM* Yes Roon Tested Yes HEOS App Control Yes Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote Ethernet Ports Yes Wi-Fi Yes Bluetooth Yes HDMI
HDMI Inputs: Back, Front 6, No HDCP2.3 support Yes HDMI Outputs: Main, Zone 2, 1 HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB Yes, Yes HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR Yes , Yes, Yes, Yes, Yes ALLM (Auto Low Latency Mode) Pass-through for gaming Yes Variable Refresh Rate, Quick Flame Transport, Quick Media Switching Yes, Yes, No 3D Signal Pass-through Yes 8K Signal Pass-Through, Scaling, GUI Overlay Yes, Yes, Yes DSD Audio Capability Yes Audio Return Channel (ARC), Enhanced ARC Yes, Yes Auto LipSync Yes Multi-room CI
Multi-Room Zones 2 Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog Yes (2ch), Yes (2ch), Yes, Yes Zone Audio Output: Speaker, Pre-Out Yes, Yes Zone HDMI Output from HDMI Source Yes IP Control, RS232 Control, Web Control, App Control Yes, Yes /Yes, Yes Remote In / Out Yes, Yes DC Trigger Output 1 HDMI Diagnostics Yes Others
Auto Speaker Setup by Microphone Audyssey MultEQ XT32
Dirac Live (upgrade)Front Display 1-Line FLD GUI Languages 3 Setup Assistent Yes Quick Select Plus, Quick Select Yes, No Variable Crossover Yes Optimized Bass Redirection Yes Bass Sync Yes ECO Mode Yes Auto Power Off Yes Sleep Timer Yes Inputs Outputs
HDMI In, Out 6, 3 Multi-Room Video Out: Video, HDMI No, Yes Analog In, Out 5, No Phono (MM) In Yes Digital In: Optical, Coaxial 2, 2 Multi-Room Out: Analog, Digital 1, No Multichannel Preout Yes (11.4) Subwoofer Out 4 (independent) Speaker Terminal: Gold-Plated Screw, Regular Screw No, Yes Number of Speaker Terminals 11 Speaker A / B Assignable Bi-amp Drive Assignable Multi-Room Speaker Terminal Assignable Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB No, No, No, No, Yes USB Audio, Made for iPod, Made for iPhone Yes, No, No AM/FM Tuner Yes Specifications
Number of Power Amps 9 Power Output (8 ohm, 20 Hz – 20 kHz, 0.08% 2ch Drive) 105W Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 135W Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 215W General
System Remote Control RC-1253 Pre-Programmed, Learnable, LCD Display No, No, No Power Consumption in W 660W Power Consumption No-Sound (ECO On / Off) in W 60W/100W Standby Consumption in W 0.1 CEC Standby Consumption in W 0.5 Network Standby Consumption in W Less than 2.0 Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches17.1 x 15.3 x 6.6
( 17.1 x 15.3 x 9.3 )
【 17.1 x 14.9 x 6.6 】Weight in LBS 27.6 Weight in LBS (Packaging) 33.3
