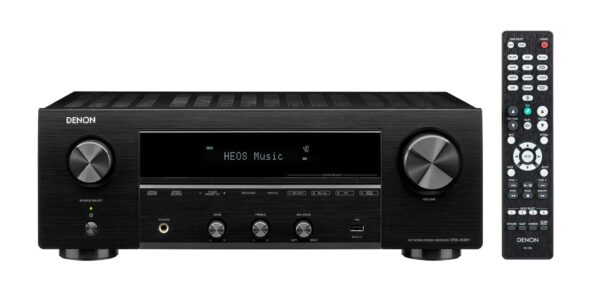

The Denon DRA-800H seamlessly integrates Hi-Fi amplification, a network player and advanced AV receiver technologies. Featuring advanced custom amplifier design, the DRA-800H ensures your loudspeakers drive detailed, precise imaging through the dedicated circuitry. With five 4K Ultra HD HDMI inputs and the latest wireless music streaming technologies (Wi-Fi, AirPlay 2, Bluetooth and HEOS Built-in), the DRA-800H integrates seamlessly with your TV, game consoles, turntable, CD Player, wireless music and Hi-Fi systems.
Enjoy network streaming and USB front-panel audio playback of MP3, WAV, FLAC, ALAC and DSD (2.8/5.6MHz) files. Equipped with A/B speaker terminals (supports bi-wiring), dual subwoofer pre-outs, three digital and two analog inputs, one phono (MM) input and ARC for TV audio, the DRA-800H delivers a premium stereo listening experience for your music
HIGH-PERFORMANCE DISCRETE 2-CHANNEL AMPLIFIER
The DRA-800H stereo network receiver amplifier is specifically designed to meet the needs of your two-channel system. Featuring a custom discrete high-current power amplifier, symmetrical design and an OFC (oxygen-free copper) winding power transformer, the DRA-800H delivers maximum performance and 100W of power per channel (8ohms, 20Hz-20kHz, THD: .08%, 2ch driven). With low impedance drive capability, it offers greater stability with a wide range of floor-standing and bookshelf loudspeakers for balanced, quality sound, every time. Optional auto ECO mode helps reduce power consumption, without sacrificing audio quality.
EXPERT SOUND ENGINEERING
Denon sound engineers use carefully selected Hi-Fi parts, including custom resistors and audio grade capacitors, to tune the stereo receiver. Using the design principles found in Denon award-winning amplifiers, the DRA-800H features a symmetrical layout, double differential DAC circuit and analog preamp circuits that don’t interfere with the power supply. The dedicated circuitry with its short, straight paths between the power supply, signal and amplification ensure your loudspeakers drive detailed and precise imaging.
Enjoy superb audio fidelity with your favorite high-resolution audio tracks. The DRA-800H with AKM 32-bit D/A converters features high-resolution audio decoding with multiple lossless file types, including ALAC, FLAC and WAV at up to 24-bit/196-kHz. It’s also compatible with 2.8/5.6-MHz DSD files (DSD is the audio coding format of SACD). Play them from memory devices via the front panel USB or over network sources. The DRA-800H also supports other file types such as MP3 and WMA.
PEAKER A/B AND ZONE 2 PRE-OUT
Connect two pairs of speakers for easy A/B switching. Or, extend your system to a second room and listen to a different source in Zone 2 via pre-outs.
INTEGRATED PHONO INPUT
For nearly 50 years, Denon has been developing and manufacturing turntables and cartridges. The Denon designed phono input allows you to easily connect your turntable to the receiver and enjoy your vinyl collection.
DUAL DAC DIFFERENTIAL CIRCUIT
The DRA-800H utilizes an eight-channel premium DAC to deliver amazing stereo imaging and detail. By assigning two DAC’s per channel including the subwoofer output, hear increased dynamic range and improved signal to noise (s/n).
ADVANCED HDMI VIDEO SECTION WITH ARC
The DRA-800H features 5 HDMI inputs and 1 output — that support full 4K Ultra HD 60Hz video, 4:4:4 Pure Color sub sampling, High Dynamic Range (HDR10), Hybrid Log-Gamma (HLG), and BT.2020 pass-through support for exceptional color, clarity and contrast. HDCP 2.3 processing is available on all HDMI ports. Audio Return Channel (ARC) support enables the transmission of audio directly from the smart TV to the receiver through the connected HDMI cable.
ADVANCED VIDEO CONTROLS
HDCP 2.3 processing is available on all HDMI ports, letting you enjoy copy-protected content totally uninhibited. Enjoy seamless compatibility with the latest HD and Ultra HD TVs, Blu-ray players and game consoles.
EASY SETUP EXPERIENCE
The included DRA-800H Quick Start Guide provides simple, clear instructions for how to get started. Once you connect your TV to the DRA-800H via HDMI, the exclusive Denon Setup Assistant appears on your TV screen to walk you through setup, step-by-step.
BUILT-IN BLUETOOTH AND WI-FI CONNECTIVITY
The heart of your wireless network. For Bluetooth, Wi-Fi and AirPlay 2 wireless streaming connectivity, the Denon DRA-800H is equipped with an advanced dual antenna transceiver system for robust streaming even in congested urban environments. Enjoy listening to your favorite audio content wirelessly from your smart devices.
With HEOS Built-in technology, play the same song in every room or select a different song for each connected room — the choice is yours. HEOS works with Amazon Alexa and Google Assistant, providing effortless voice control.
HEOS supports free and premium Spotify, Pandora, Amazon Music, TuneIn, iHeart Radio, Sound Cloud, SiriusXM, Tidal and more.
YOU’RE IN CONTROL
Better control in your back pocket. The free Denon AVR Remote app for iOS and Android makes using the DRA-800H even easier — adjust volume, turn it on or off, mute the music, select a source or switch to HEOS. Download the Denon AVR Remote app and the HEOS app to your smartphone today. Available for both iOS and Android.
Use Amazon Alexa, Siri, or Google Assistant to control your music.
SMART TV CONNECTIVITY
Control the Denon DRA-800H with your TV remote via the HDMI CEC functionality associated with your TV. The Smart Menu home screen provides you quick access to source and surround mode selections, the AV receiver setup menu and four Quick Selects.
AUTO LOW LATENCY MODE
Auto Low Latency Mode (ALLM) ensures Xbox One users have a more responsive and immersive gaming experience when connected with select TV models that also support ALLM.
QUICK SELECTS FOR USER-FRIENDLY AUDIO TUNING
The Denon DRA-800H front panel features four Quick Select buttons that store your preferred audio settings for each source. Switch between TV audio, Blu-ray, media players and more, and the DRA-800H adjusts the EQ settings to your preferences for that media source. Use the buttons on the front panel or opt for the same Quick Select on the AV receiver remote for faster control. Now allows for one-push all zone stereo mode via Quick Select.
WORKS WITH LATEST VOICE ASSISTANTS
Enjoy effortless voice control and total flexibility from the leading voice services. Using a smart speaker or your phone, speak commands with Amazon Alexa, Google Assistant, Apple Siri and high-end smart home automation, Josh.ai. Ask to play your favorite music, turn the volume up, skip to the next track, switch inputs and more. Switch between voice services or pick a favorite to use — the choice is yours. Functionality varies by voice agent.
HEOS BUILT-IN FOR WIRELESS MUSIC STREAMING
Stream your favorite music from anywhere and everywhere around your home with HEOS Built-in technology. Enjoy high quality music from a wide range of streaming services including Spotify®, TuneIn, Pandora®, Amazon Prime Music, iHeartRadio, SiriusXM, Soundcloud®, Tidal, Napster, Deezer or local music sources. Control it all seamlessly with the free HEOS app.
PLAY YOUR MUSIC ANYWHERE WITH HEOS SPEAKERS
With the HEOS multi-room function, the Denon DRA-800H can connect with any other product with HEOS Built-in to play music throughout your entire home. Play the same song in every room or select a different song for each connected room — the choice is yours.
Channels 2 Digital in: USB-B / optical / coaxial / USB-A No / 2 / 1 / 1 Sample Rate digital In 192 kHz / 24-bit USB-A: DSD / WAV / FLAC / AIFF / ALAC <=5.6 / 192 / 192 / No / 192 DAC chip AK4458 Tuner: DAB / DAB+ / FM (RDS) Yes / Yes Bluetooth / aptX / NFC Yes / No / No Streaming audio from PC Yes Wi-Fi / Wired LAN Yes / Yes Internet Radio Yes AirPlay 2 Yes Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes Amazon Prime Music* / Pandora* Yes / No HEOS Multiroom and Streaming Yes Voice Control – Works with Amazon Alexa Yes Voice Control – Google Assist / Apple Siri Yes DSD-Audio network streaming Yes Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 / AIFF Yes / Yes / Yes / Yes / No Gapless Playback Yes Remote APP: iDevice / Android Yes / Yes Wide range amplifier Yes Power amp discrete construction Yes Balance / Bass / Treble / Loudness Yes / Yes / Yes / No
Source Direct Yes
Audio Inputs 5 Digital in: USB-B / optical / coaxial / USB-A No / 2 / 1 / 1 Phono Input: MM / MC Yes / No Pre-out / Main-in subwoofer / Zone2 Gold plated Cinch Yes Speaker A / B Yes Number of terminals 4 Remote Control Bus in / out Yes / No HEOS Link compatibility: IR / IP Yes Headphone Out Yes
Output power 8 Ohm (20 Hz – 20 kHz, T.H.D. 0.07%) 100 W (0.08%) Total Harmonic Distortion 0.01% Input Sensitivity: MM 2.5 mV / 47 kohm Signal to Noise Ratio: MM/MC 74 dB / No Input Sensitivity: High level 200mV / 47k ohm Signal to Noise Ratio: High level 98dB Treble Control ± 6 dB at 20kHz Bass Control ± 6 dB at 20Hz
Available colours: Black / Premium Silver Yes / Yes Metal Front Panel Yes Power Consumption in W 220 Auto Power Off Yes Detachable Power Cable Yes Remote Control RC-1235 System Remote Function Yes Maximum Dimensions (W x D x H) in mm 434 x 339 x 151 Weight in kg 8.6 Carton Maximum Dimensions (W x D x H) in mm 523 x 435 x 232 Carton Weight (inc. product) in kg 10.3
