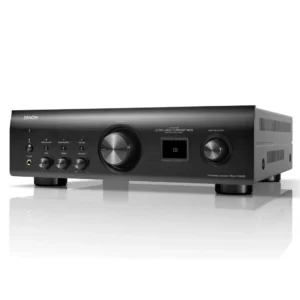

Denon PMA-1700NE Integrated Amplifier

235,000.00

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing Plus, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.

Availability: In stock

☑ Lowest Price Match Guarantee
Question about product/price? Get expert advice from India's most experienced online seller!
+918779579179 WhatsApp Click to ChatWhatsApp Click to Chat

Shop With Confidence!

  • Price includes GST + Shipping to Major Towns & Cities
  • Official Manufacturers Warranty valid in India
  • Brand NEW in Box & 100% Original
  • Authorised Online Dealer
  • Electronic products run on 230 volts
  • EMI & Pay Later payment option available
Guaranteed Safe Checkout
Designed & Engineered in:
Manufactured in:

Denon PMA-1700NE Integrated Amplifier

Denon PMA-1700NE Integrated Amplifier with USB-DAC

Denon PMA-1700NE Integrated Amplifier with 140W Power per Channel

With ultra-high current single push-pull circuit power and Advanced AL32 Processing Plus, the Denon PMA-1700NE retains the detail of the original recording. Listen to your favourite music digital via the three digital inputs or a rear USB-B input—or go analogue with MM or MC phono equalizer and the dedicated Analog Mode

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing Plus, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.

Powerful sound from an integrated amplifier
Engineered with premium Denon technologies, this amplifier drives two channels at 140W.

Faithful audio reproduction
Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.

Build integrity with selected components
With more than 110 years of audio excellence, Denon products are built to last.

High-power 140W integrated amplifier
Drive your loudspeakers with 140 Watts of power per channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.

Advanced AL32 Processing Plus
Advanced AL32 Processing Plus supports digital audio sources up to a high resolution of 384-kHz/32-bit. The algorithms restore information that was lost during the digital recording to ensure detailed playback.

USB-DAC
PMA-1700NE provides a USB-DAC function that supports high-resolution audio signals up to 11.2-MHz DSD and 384-kHz/32-bit PCM. These digital signals with suppressed jitter will get passed on to the high-quality DAC for an optimal D/A conversion with the highest precision.

High-precision electrical controls
The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analogue feeling of operation. The unique mechanism offers smooth, linear control. A Source Direct function passes by all tone control for purest audio.

Advanced Ultra High Current MOS single push-pull circuit Wide bandwidth captures everything from deep bass to detailed highs. The UHC (Ultra High Current) design ensures the drivability of a wide range of speaker types and impedances.

Hi-Res Audio certified

Able to decode high-resolution audio ALAC, FLAC, and WAV lossless files up to 24-bit/192 kHz, as well as DSD 2.8MHz and 5.6MHz tracks (the audiophile format of SACD), PMA-1700NE lets you enjoy each note exactly as the artist intended.

Advanced AL32 Processing Plus

Advanced AL32 Processing Plus uses data interpolation

algorithms, which supports digital audio sources up to high-resolution 384-kHz/32-bit. The algorithms add in the points that should exist before and after large quantities of data, smoothing out the waveform and restoring information lost during the digital recording. The resulting playback is highly detailed, free of interferences, richly expressive in the lower range, and beautifully faithful to the original sound. Hear your favourites like never before.

Built-in phono equalizer

Denon is well known for high-quality vinyl playback. The built-in phono equalizer allows direct connection to a turntable and supports input from MM cartridges. Some models also support input from MC cartridges.

Digital inputs

The amplifier features optical and coaxial digital inputs supporting PCM signals up to 192-kHz/24-bit to improve the sound quality of your TV audio, Blu-ray, media players, computer, and more.

110+ years of firsts in audio technology

Founded in 1910, Denon has a deep heritage of “firsts” in audio technology—from Japan’s first audio electronics manufacturer to producing the world’s first commercial CDs. This focused investment in audio R&D ensures you get the latest technology and the highest quality with every listening experience.

TECHNICAL SPECIFICATIONS of the PMA-1700NE Integrated Amplifier

General

Unit (W x D x H) 434 x 410 x 135mm
17.1 x 16.1 x 5.3in
Cabinet Size (W x D x H) 434 x 374 x 135mm
17.1 x 14.7 x 5.3in
Net weight 17.6kg
38.8lb
Packaging Dimensions (W x D x H) 548 x 520 x 249mm
21.6 x 20.5 x 9.8in
Packaging gross weight 20.4kg
45lb
Carton Color 2 Color
Cushion / Packing 4 Separate / Sheet
Panel Color SP / BK
Front (Center) Panel Aluminum
Side cover SECC with 4 straight emboss
Side screw SP: Nickel / BK: Black
Rear Panel SECC t1.0mm
Chassis Material SECC t1.2mm
Bottom Layer Single
Volume Knob Aluminum
Input Selector Aluminum
Bass/Treble/Balance/ Phono Sel knobs Aluminum
Power button Aluminum
Other knob/button (LOUDNESS, SOURCE DIRECT etc) Mold (Source Direct,Analog Mode,MM/MC)
Foot ABS resin with rigid rib
w/Hot stamp
(H : 20mm)
Heatsink for Power Amplifier Extruded Aluminum
Specifications

Rated Output Power 70W + 70W
(8ohm,20Hz-20kHz,THD0.07%)
140W + 140W
(4ohm, 1kHz, THD0.7%)
Speaker Impedance A or B : 4 ~ 16ohm
A + B : 8 ~ 16ohm
Frequency Response 5Hz – 100kHz (0~ -3dB)
Total Harmonic Distortion 0.01 % (Rated output: –3 dB),
8 ohm/ohms, 1 kHz
Dumping Factor 100 and over
Input Sensitivity: Phono input MM: 2.5 mV / 47 kohm
MC: 200
RIAA Deviation 20 Hz – 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input MM : 130mV / 1kHz
MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER 125 mV / 19 kohm
Input Sensitivity: Power Amp input 0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio PHONO (MM): (89dB)
PHONO (MC): (74dB)
CD: (107dB)
Tone Control BASS : 100Hz ±8dB
TREBLE : 10kHz ±8dB
Power Consumption 295W
at Standby 0.2W TV autoplay off
0.4W TV autoplay on
Audio Feature

Power Amplifier Circuit New UHC-MOS
Single Push Pull (7)
Power Trans Dual El Core
Pre Amplifier Circuit Variable Gain Preamplifier
(OP AMP)
Volume Electric
(MUSES 72323)
Bass / Treble / Mid / Balance Control Yes / Yes / No / Yes
Type of Tone Control Electric
Controlled by Potentiometer
Headphone Circuit Use Poweramplifier
Source Direct Yes
Analog Amp Mode Yes (button on front panel)
Other 70
DAC Circuit PCM1795
Digital Filter Fixed
Digital Processing Advanced AL32 Processing Plus
DAC Master Clock Design (Not Support Network Playback) Yes
Asyncronous mode (for USB-B input) yes
Isolator (for USB-B input) Yes
Full Isolation
Connectivity

Phono Input Yes (MM / MC)
*default=MM
Analog Input (include Phono) / REC Out (RCA) 4/1
(PHONO / CD / NETWORK ,AUX/ RECORDER)
Optical input / output (Maximum Support) 2 / 0 (192kHz/24bit)
Coaxial input / output (Maximum Support) 1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct) Yes(Ext.Pre)
2 sets of Speaker Output Yes (Bi-wiring)
Speaker Terminal Gold Plated
Headphone Output 1
(Turn off the speaker when inserting headphone)
Remote Control Bus Terminal Yes (mini)
AC Inlet Yes
Wi-Fi No
HEOS No
USB B (USB DAC) 1 (Rear)
Module or Main Device New XMOS
(XU210-256-TQ128 )
PCM Sample Rate ~384kHz/32bit
DSD Audio Streaming (DoP) ~11.2MHz
Roon Certificaton Yes(Roon Tested)
TBD
Control

Remote Controller System Remote
(w/CD Player Control)
Unit control (Button) Push Switch: 1
POWER
Tact Switch : 3
ANALOG MODE, SOURCE DIRECT, MM / MC
Unit control (Knob) 5
VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
LED POWER: 1 Red / Green
ANALOG MODE: 1 Green
SOURCE DIRECT: 1 Green
MM / MC :1 Green
Front Panel Display Yes
(OLED 128 x 100 dot)
MXS4036-A
Display Language Alphabetical
Dimmer for Front Display Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus) Yes
TV Auto-play (Opt/Coax digital-in detecter) Yes
Last Function Memory Yes
Auto Standby Mode Yes
Owner’s Manual Web Manual
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Paper
JP: (Japanese)
Quick Start Guide Paper
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Remote Controller Yes
Battery Yes (AAA x2)
Power Cord Yes

Brand

Denon

Buy brand new & 100% genuine Denon products from India's official online dealer at the special offer price with a manufacturers warranty.
