Denon PMA-60 Amplifier

Design Series Integrated Amplifier with 2x 50W and Bluetooth

Introducing the Denon Design Series: Real Hi-Fi For Today’s Lifestyles. The PMA-60 amplifier delivers true Denon sound, with outstanding performance despite its compact size.

Elegantly Designed

With a combination of soft-look Aluminium, bright silver-tone accents and a mixture of glossy and matt black surfaces.

High-Resolution Audio

USB-B input for High-Resolution Audio up to 384 kHz /32 bit and 11.2 MHz DSD.

Stream Music With Bluetooth®

Features analogue and digital connectivity as well as Bluetooth® audio streaming from your computer or portable device.

Advanced AL32 Processing Plus

Advanced hardware utilizes data interpolation algorithms, which support high-resolution audio sources.

TECHNICAL SPECIFICATIONS of the Denon PMA-60 Amplifier

Features

Channels             2

Digital in: USB-B / optical / coaxial / USB-A           Yes / 2 / Yes / No

Sample Rate digital In     192 kHz / 24-bit

USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6         <=11.2

USB-B PCM sample rate 384 kHz / 32-bit

Asynchronous mode rear USB    Yes

Bit-perfect transmission Yes

Ground isolator for DAC Mode operation              Yes

Bluetooth / aptX / NFC   Yes / Low Latency / Yes

Balance / Bass / Treble / Loudness           Yes / Yes / Yes / No

Others

Vertical Installation         Yes

Low Noise OELD display Yes

Source Direct     Yes

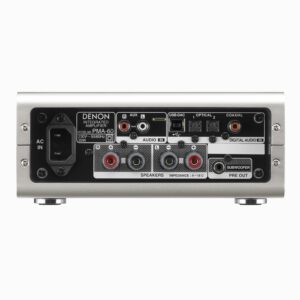

Inputs Outputs

Audio Inputs      1

Digital in: USB-B / optical / coaxial / USB-A           Yes / 2 / Yes / No

Pre-out / Main-in             Subwoofer / No

Number of terminals      2

Headphone Out Yes

Headphone Gain Control (low / mid / high)           Yes

Specifications

Output power 8 Ohm (20 Hz – 20 kHz, T.H.D. 0.07%)         25W (1kHz)

Output power 4 Ohm (1 kHz, T.H.D. 0.7%)             50 W

Total Harmonic Distortion            0.00%

Signal to Noise Ratio: MM/MC   No / No

Input Sensitivity: High level          70 mV

Signal to Noise Ratio: High level 110dB

Treble Control   ± 8 dB at 12 kHz

Bass Control       ± 8 dB at 100 Hz

General

Available colours: Premium Silver / Black  Yes / No

Power Consumption in W             35

Standby Consumption in W          0.2

Auto Power Off Yes

Detachable Power Cable               Yes

Remote Control RC-1220

Maximum Dimensions (W x D x H) in mm              200 x 240 x 86

Weight in kg       2.7
