Denon PMA-A110 Anniversary Edition Amplifier
110th Anniversary Edition Amplifier
The Denon limited series Anniversary Edition silver graphite PMA-A110 integrated amplifier delivers best in class audio performance for a best in class audio experience.
110 years defining audio excellence
For 110 years, Denon has delivered the most cutting-edge audio and video technical achievements.
Sound master inspired
The Denon sound master didn’t just tune this product, he obsessed over it.
High-power, integrated amplifier
160 watts of power delivers the most precise and powerful Denon sound.
Ultra AL32 processing
The PMA-A110 is equipped with Ultra AL32 Processing, the latest in analogue waveform reproduction technology from Denon.
TECHNICAL SPECIFICATIONS
Features
Channels 2
110th Anniversary Audio Tuning Yes
All black interior Yes
Exclusive A110 speaker terminals Yes
Aluminium Top Cover Yes
Aluminium Feet Yes
Digital in: USB-B / optical / coaxial / USB-A 1 / 3 / 1 / No
Sample Rate digital In 192 kHz / 24-bit
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 <=DSD11.2
USB-B PCM sample rate 384 kHz / 32-bit
Quad DAC Configuration Yes
DAC chip 4x PCM1795, Burr Brown Mono-Mode
Asynchronous mode rear USB Yes
Bit-perfect transmission Yes
Ground isolator for DAC Mode operation Yes
AL 32 Processing ULTRA AL32
DAC Master Clock Design Yes
Streaming audio from PC Yes
Analogue Mode Yes

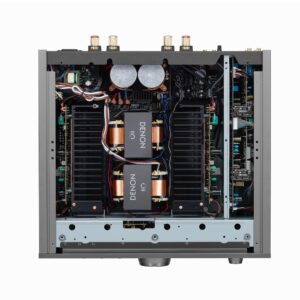

UHC-MOS single push pull circuit 7th Generation
LC mounted twin transformer Yes
Wide range amplifier Yes
High current dynamic power supply Yes
Power amp discrete construction Yes
Balance / Bass / Treble / Loudness Yes / Yes / Yes / No
Others
Shottky diodes Yes
Solid Heat Sinks Yes (BLACK)
Source Direct Yes
Power Amp direct Yes

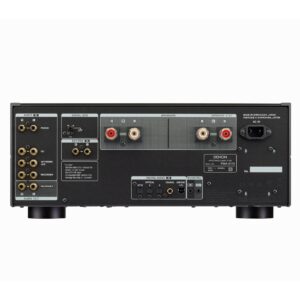

Inputs Outputs
Audio Inputs 5
Digital in: USB-B / optical / coaxial / USB-A 1 / 3 / 1 / No
Phono Input: MM / MC Yes / Yes
Audio Outputs 1
Power Amp Direct IN Yes
Gold plated Cinch Yes
Number of terminals 4
Remote Control Bus in / out Yes
Remote Control Bus in / out Yes
Specifications
Output power 8 Ohm (20 Hz – 20 kHz, T.H.D. 0.07%) 80 W
Output power 4 Ohm (1 kHz, T.H.D. 0.7%) 160 W
Total Harmonic Distortion 0.01%
Input Sensitivity: MM 2.5 mV / 47 kohm
Signal to Noise Ratio: MM/MC 89 dB / 74 dB
Signal to Noise Ratio: MM/MC 135 mV / 47 kohms
Signal to Noise Ratio: High level 110dB
Treble Control ± 8 dB at 10 kHz
Bass Control ± 8 dB at 100 Hz
General
Available colors: Premium Silver / Black Silver Graphite
Metal Front Panel Yes
Power Consumption in W 400
Standby Consumption in W 0.2
Auto Power Off Yes
Detachable Power Cable Yes
Remote Control RC-1237
Remote Control Yes
Maximum Dimensions (W x D x H) in mm 434x450x182
Weight in kg 25
Carton Maximum Dimensions (W x D x H) in mm 573 x 533 x 317
Carton Weight (inc. product) in kg 29.8
