Focal SIB EVO 5.1.2 HOME CINEMA SYSTEM

Focal SIB EVO 5.1.2 HOME CINEMA SYSTEM

The Focal SIB EVO 5.1.2 HOME CINEMA SYSTEM consist of THREE SIB EVO SATELLITES, TWO SIB EVO DOLBY ATMOS® LOUDSPEAKERS AND ONE CUB EVO SUBWOOFER.

Dare to bring true cinema sound effects into your living room! Enjoy Atmos sound effects worthy of cinemas, and created by Dolby, when watching your favourite films at home. Your films will take on a completely new dimension! Although it hasn’t quite made its way into every living room, but rapidly on the increase, this system distinguishes itself by offering sound effects on a vertical plane, reflected off the ceiling. This gives the spectator the impression of being plunged into an ultra-realistic 3D universe! The strict minimum for Dolby Atmos® is a 5.1.2 system, and Focal wanted to integrate this technology into the new generation of Sib & Co loudspeakers, the iconic Home Cinema range launched in 2002! The 5.1.2 pack is composed of two loudspeakers equipped with an additional speaker driver on the top featuring Dolby Atmos® technology. This new-generation “enabled loudspeaker” was designed to reproduce both horizontal and vertical waves (towards the ceiling). The major innovation of this technology lies in the reflection of sound waves off the ceiling towards the listener using an extra speaker driver on top of the loudspeaker. Get ready to live a completely new audio experience worthy of cinemas! This pack is ideal for rooms measuring 100ft2 to 540ft2 (10 to 50m2), and it will blend in perfectly with your interior, giving it a very stylish touch.

Sib Evo is composed of a 5″ Polyflex speaker driver and a ¾″ silk dome tweeter integrated into a sizeable enclosure in order to give it an extended frequency response. The Dolby Atmos® loudspeaker is equipped with an additional 4″ full-range Polyflex speaker driver on top dedicated to the Atmos® effects. The Cub Evo subwoofer recalls the same design codes as our Hi-Fi subwoofers in a ‘‘lifestyle” product. Equipped with an 8’’ speaker driver and a 200W Class D amplifier, it’s characterised by its MDF structure and its Matt Black finish.

Sib & Co has been a reference in the Home Cinema market since 2002! This new Sib Evo edition completes the first: the two systems are perfectly compatible. The performance has been improved and the size has been increased. The 5.1.2 set-up is a very coherent system providing you with unprecedented sensations! This pack of Sib Evo Dolby Atmos® loudspeakers will complete your 5.1 set-up, turning it into a 5.1.2 system.

The particularity with this loudspeaker is its capability to reproduce the Atmos® effects of cinemas in the comfort of your own home. In addition to the front-firing speaker driver, an additional full-range speaker driver has been integrated into the top of the loudspeaker. This system prevents having to add accessories to your loudspeakers to reproduce the vertical effects, which may spoil the design or the overall harmony of the system. This surrounds the spectator with sound effects, particularly those coming from above, a major innovation for this type of product. Imagine an action scene with planes flying overhead, rain falling down or the rumbling of thunder… Atmos®-enabled loudspeakers, through the front-firing and vertical-firing speaker drivers, form a complete system with all elements working in perfect harmony. Thus, Sib Evo is an excellent system that is compact and structured.

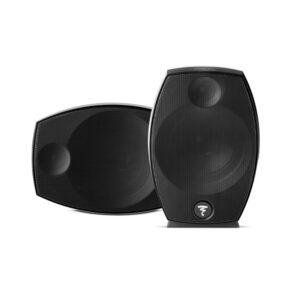

SIB EVO Satellite Speakers

Key points
• Unrivalled power in its category
• An optimal design for advanced integration
• Acoustic accuracy whether for Home Cinema or Hi-Fi
• Optional Hip Evo stand

Type of loudspeaker Two-way compact bass-reflex loudspeaker
Speakers 5″ (13cm) Polyflex woofer
3/4″ (19mm) soft dome tweeter
Frequençy response (+/-3dB) 70Hz to 25kHz
Low frequençy point (-6dB) 66Hz
Sensibility (2.83V/1m) 90dB
Nominal Impedance 6 Ohms
Crossover Frequency 3.5kHz
Recommended Amplifier Power 25 – 200W
Dimensions (HxWxD) 915/16″x63/8″x63/8″ (252x162x162mm)
Weight (unit) 4lbs (1.8kg)

CUB EVO Subwoofer

Key points
• With the high performance of our Hi-Fi subwoofers
• Powerful 200W Class-D amplifier
• Exclusive streamlined port
• Large 81/4″ (21cm) speaker driver

Type of loudspeaker Active bass-reflex subwoofer
Speaker 81/4″ (21cm) Polyflex woofer
Frequency response (+/-3dB) 35Hz – 150Hz
Cutoff frequency (-6dB) 30Hz
RCA input Right, left LFE
Cut-off frequency 3.5kHz
Phase adjustment Phase inverter 0° / 180°
Amplifier power 200W Class-D amplifier
Power mode On / Autopower (0.5W)
Dimensions (H x W x D) 2″ x 111/8″ x 113/4″ (305x282x299mm)
Weight (per unit) 17.5lbs (8kg)

SIB EVO DOLBY ATMOS®

The Sib Evo Dolby Atmos® loudspeaker is the evolution of Sib Evo. Keeping in line with the design codes of the range, its style is futurist but timeless. Easy to install and use, the Sib Evo Dolby Atmos® system will submerge you in a 3D universe, making you feel like you’re at the heart of the action. Also available as a 2.0 pack, it can be used to upgrade your 5.1 system to a 5.1.2 system without you having to change all your loudspeakers.

Key points
• Integrated Dolby Atmos® technology for 3D sound effects
• Transform your Home Cinema system without changing your loudspeakers
• Acoustic accuracy whether for Home Cinema or Hi-Fi
