KLH Model Five Floorstanding Speaker

KLH Model Five Floorstanding Speaker

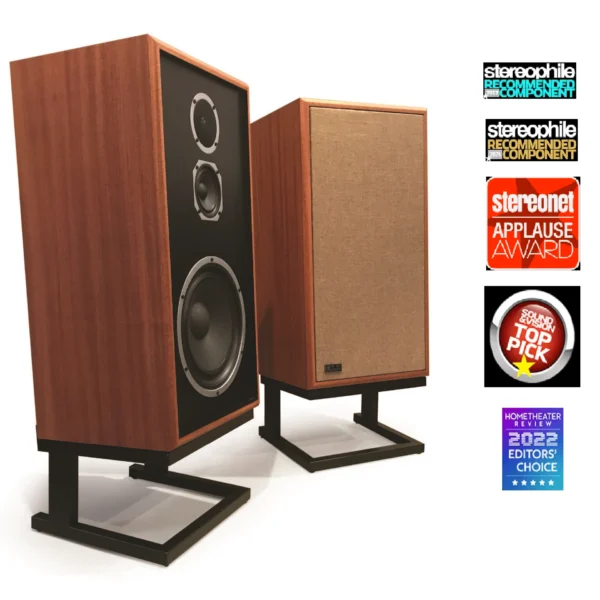

The KLH Model Five Floorstanding Speakers are known as one of the finest and most sought-after speakers for audiophiles, both new and seasoned. The updated version of this classic speaker has real wood veneers, cast aluminum baskets, and uses acoustic suspension design principles made famous by founder Henry Kloss.

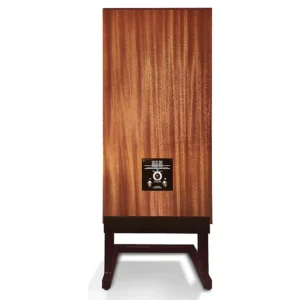

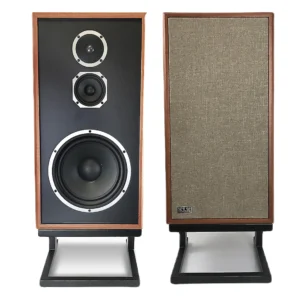

The KLH Model Five vintage speaker is offered in three gorgeous finishes (English Walnut, West African Mahogany, and Nordic Noir), allowing the loudspeaker to blend with all home decor. The English Walnut Model Five comes with a beautiful Stone Wash Linen grille cloth that magnifies the rich finish of the real wood veneers. Meanwhile, the West African Mahogany finish is complemented by an Old-World Linen grille cloth that will stop you in your tracks. And lastly, the Nordic Noir finish is shipped wearing the lovely Medici Grey Linen grille cloth. Want the option of pairing any grille cloth with the finish of your choosing?

Main features of the KLH Model Five Floorstanding Speaker

• Iconic Mid-Century Modern Styling
• Acoustic Suspension Design – The most accurate and linear enclosure design available today

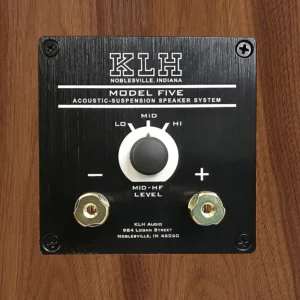

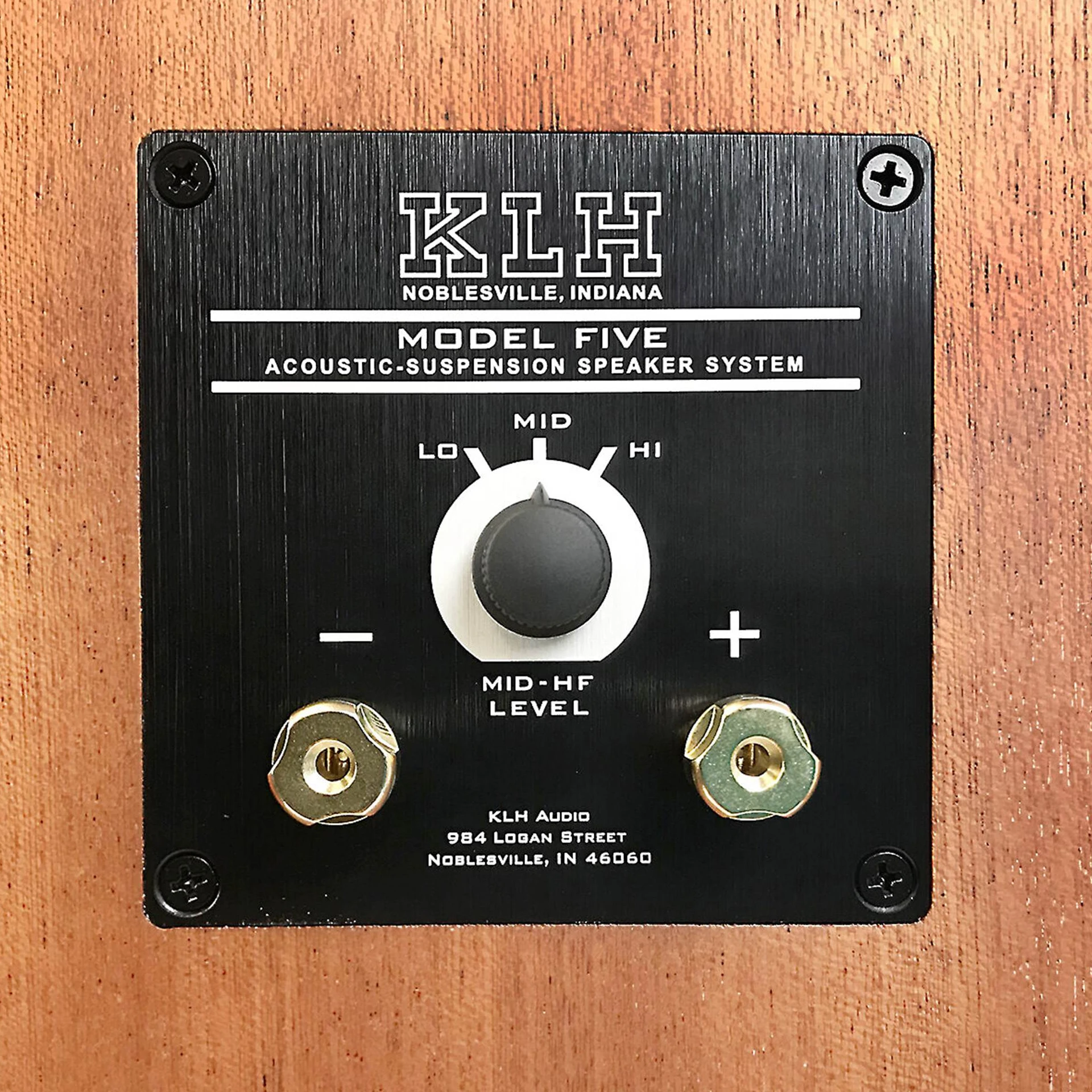

• Three-Position Acoustic Balance Control to tailor the loudspeaker’s output for the most difficult acoustic environments
• Dedicated midrange driver to reproduce the critical mid-frequency band
• Non-Resonant Die-Cast Aluminum Midrange & Woofer Frames
• Die-Cast Aluminum Tweeter Faceplate
• KLH cabinetry featuring a structurally reinforced ¾” MDF enclosure
• Thirteen component network using high-quality iron-core inductors & Mylar capacitors

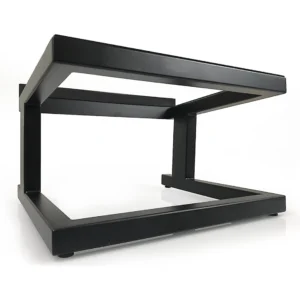

• 5° slant riser base made of powder coated 14-gauge steel (included with speaker purchase)
• Low-profile magnet attached grille

Specifications of the KLH Model Five Floorstanding Speaker

Frequency Response: 42Hz – 20,000Hz +/- 3dB
Low Frequency Extension: -10dB @ 32Hz
In-Room Sensitivity: 90.5dB @ 2.83V / 1M
Free-field Sensitivity: 87.5dB @ 2.83V / 1M
Power Handling: 200 Watts / 800 Watts Peak
Recommended Amplification: 20 Watts to 200 Watts
In-Room Maximum SPL: 112.3dB
Maximum Output @45Hz: 106dB
Impedance: 6 Ohms (3.5 ohm minimum @140 Hz)
Horizontal Dispersion: 140° Degrees
Features: Three-Position Acoustic Balance Control
Crossover Frequency: MF: 380Hz (2nd Order Electro-Acoustic), HF: 2,850Hz (2nd Order Electro-Acoustic)
High Frequency Driver: 1″ Aluminum Dome with Soft
Rubber Suspension
Mid Frequency Driver: 4″ Pulp-Paper Cone with Reverse
Roll Rubber Suspension
Low Frequency Driver: 10″ Pulp-Paper Cone with Reverse
Roll Rubber Suspension, 2″ Diameter
Flat-Wire Voice Coil
Enclosure Material: Structurally Reinforced ¾” Medium
Density Fiberboard
Inputs: Five-Way Gold-Plated Binding Posts
Height: 34.25″ (87.0cm) w/ Included Riser Base
26.0″ (66cm) w/o Riser Base
Width: 13.75″ (35.0cm)
Depth: 13.0″ (33.0cm) w/ Included Riser Base
11.5″ (29.2cm) w/o Riser Base
Weight: 44Ibs. (20.0kg) w/o Riser Base
52Ibs. (23.6kg) w/ Included Riser Base
Included Accessories: 5° Slant Riser Base
