Magnat Transpuls 1000 Floorstanding Speaker
Magnat Transpuls 1000 is a 3-way Speaker With All Of The Ingredients For Pure Music Enjoyment
- Heavy-duty, audiophile stereo speaker in a legendary design
- Single-compression horn tweeter for excellent dynamics
- Low housing depth for simple and uncomplicated installation
- 260 mm woofer with ultra-lightweight paper cone

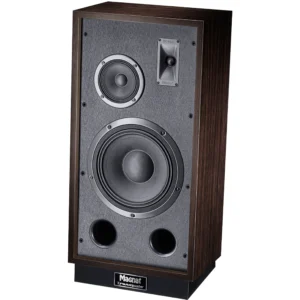

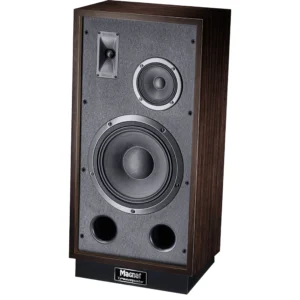

The look speaks for itself: Someone wants to make music here. Proper, real music. The honest and down-to-earth appearance of the Transpuls 1000 also embodies the way in which it performs. The three-way system, which consists of a fully-fledged 260 mm woofer, a 135 mm dome and, of course, a horn tweeter, represents a journey back in time – both technically and visually speaking. In terms of sound, however, the Transpuls 1000 sets the pace.
An efficient, dynamic and unbeatable musical performance
Thanks to its impressive efficiency rating of 92.5 dB, the stereo speaker enables even smaller amplifiers to perform amazing acoustic feats. In the deep bass and mid-range frequencies, this is due, in part, to the extremely lightweight paper cones and their mounting using PA technology. In the treble range, it is the unbeatable efficiency of the horn principle that simply makes normal tweeters appear “old”. The dynamics generated by the Transpuls 1000 are breathtaking and its acoustic coordination seems as though it were made for rock, urban and all manner of impulsive music.
Superb technology combines old and new alike
With a whopping 26 cm woofer and a perfectly coordinated bass reflex configuration, the Transpuls 1000 is capable of performing down to the lowest frequencies. It generates pleasant vibrations within the room from 22 Hz onwards and the single-compression horn tweeter only lets up at 32,000 Hz.

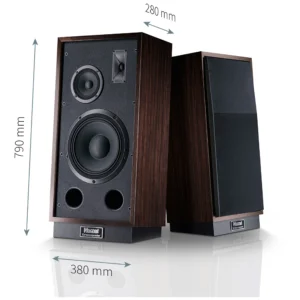

The Transpuls 1000 thereby retains its living room-friendly dimensions. Standing 79 cm high, 38 cm wide and just 28 cm deep, it is the compact member of the family. Nevertheless, the construction provides more than enough volume for a deep, dynamic and impressive bass range. The forward-facing ports of the bass reflex configuration make it uncritical in terms of where it is installed, which means that the Transpuls 1000 can be placed closer to the wall. All of this also manifests itself in an impressive overall weight of 20 kilos per speaker.
Not retro, but groundbreaking

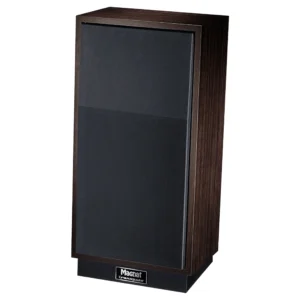

Like all of the members in the Transpuls family, the 1000 series also exhibits the typical look, which, on the one hand, is reminiscent of the legendary heyday of hi-fi systems in the 70s and 80s, yet exudes the blunt musicality of today on the other. This applies both when the elegant fabric grille with its sturdy MDF frame is attached, and when the pure technology is visible when the grille is removed. A left- and right-hand model with a symmetrical arrangement of the chassis ensures the Transpuls 1000 is also a visual delight. The Dark Wood housing represents a successful combination of discreet and sensational. The latter mainly because of the striking proportions.
Last but not least, details such as the 5° angled housing, which is a component of holistic phase correction, ensure that all of the frequencies reach your ears at the same time.
HIGHLIGHTS of the Magnat Transpuls 1000 Floorstanding Speaker
- Solid MDF enclosure with 5° sloping surface for phase-optimized sound dispersion
- Sound-optimized for rock, urban and impulsive music styles
- Powerful midrange driver with a lightweight paper cone and high degree of efficiency
- Deep and precise bass response thanks to the 26 cm high-power woofer and paper cone
- Classic speaker technology in a large enclosure that delivers a powerful and lively sound with a rich bass line
- Single-compression horn tweeter with 25 mm fabric dome for excellent dynamics and a natural sound pattern
Single-compression horn tweeter (SC-horn) with dispersion-optimized horn geometry
25 mm fabric dome with powerful neodymium drive for excellent dynamics and a natural sound pattern
WOOFER / MIDRANGE
26 cm high-power woofer with powerful Klippel®-optimized magnetic drive
Large hardened paper cone and PA fabric mount
Powerful midrange driver with a lightweight paper cone and high degree of efficiency
High-quality crossover with 2nd and 3rd order filters and additional phase correction for a balanced sound pattern and maximum load-handling capacity.

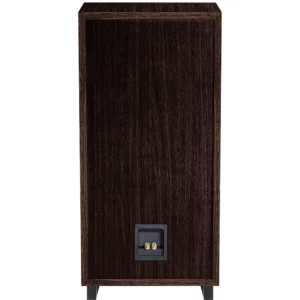

Sturdy connecting terminal with insulated screw terminals for large cable cross-sections
Solid MDF enclosure with two large, flow-optimized reflex tubes in a front-firing configuration
