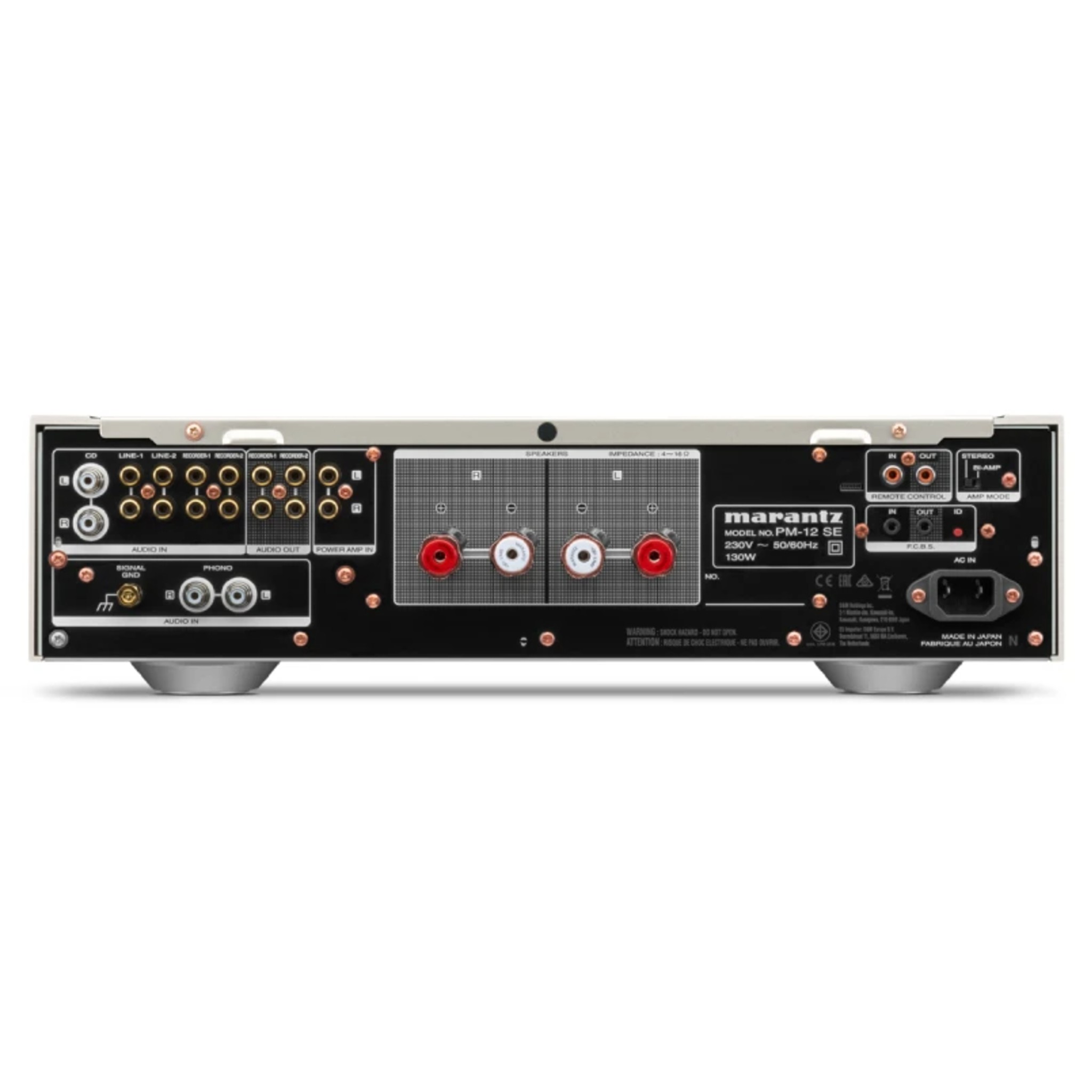

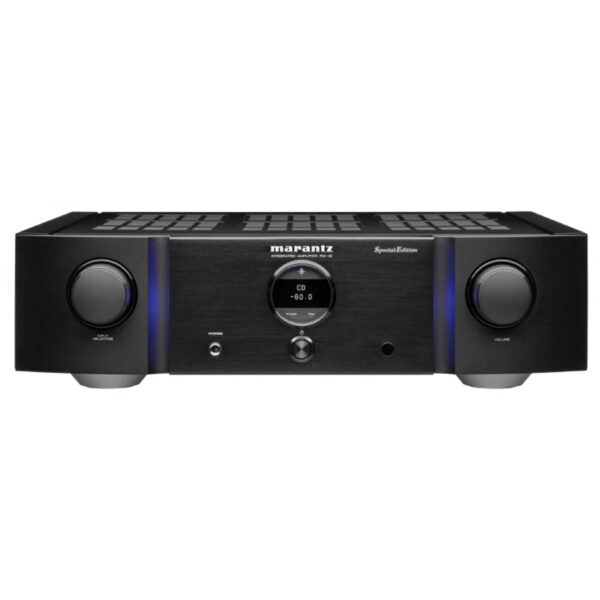

Marantz PM12SE Integrated Amplifier

SPECIAL EDITION INTEGRATED AMPLIFIER

Key Features

Built To Perform

Engineered and extensively tuned by a team, drawing on more than 65 years of Marantz amplifier design knowledge.

Masterfully Tuned

The team of Sound Masters located in Japan and Europe didn’t stop their intensive work until they were absolutely certain they reached the height of quality worthy of the Marantz name.

Pure Sound

Built to leverage enhancements, maintain the purest possible sound and supply the power needed to drive the most demanding speakers.

Balanced Power Amplification

Drawing on design elements of the PM-10, the PM-12SE is built to leverage enhancements, maintain the purest possible sound and supply the power needed to drive the most demanding speakers.

Current Feedback Amplifier

Current Feedback amplification is a well-known, Marantz-original circuit technology, thoughtfully designed to match the expectations of your Hi-Res music for wide-bandwidth and ensured high-speed reproduction.

Marantz HDAM Technology

The result is a much more dynamic, accurate and detailed sound. Over the years, Marantz has developed different HDAM technology to fit the particular requirements of players and amplifiers. The PM-12SE uses the latest high-grade HDAM-SA3 technology, combined with optimized circuit design layout and carefully selected components, the PM-12SE ensures exceptional sound quality and performance.

Marantz Musical Premium Phono EQ

Designed to deliver optimal sound quality by simplifying the signal path, the Marantz Musical Premium Phono EQ stage in the PM-12SE amplifier can be used with both moving magnet and low-output moving coil cartridges.

High-Quality Volume Control

Newly developed electric volume control uses the latest volume control IC to realize better channel separation, dynamic range and distortion-reduction, while retaining the operational feel of an analog volume control device. The amplifier employs new Marantz-designed electric volume control for high linearity and best-in-class channel separation.

Specifications of the Marantz PM12SE Integrated Amplifier

Power Output (8 / 4 Ohm RMS) 100 W / 200 W

Frequency response       5 Hz-50kHz

Total Harmonic Distortion            0.005%

Damping Factor 500

Input Sensitivity: MM     2.3 mV / 39 kohm

Input Sensitivity: MC       250 mV / 100 ohm

Signal to Noise Ratio: MM/MC   88 / 75 dB

Input Sensitivity: High level          220 mV / 13 kohm
