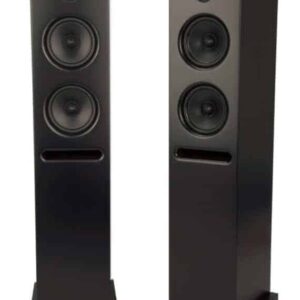

Mission QX-5 Floor Standing Speakers (PAIR)
Celebrating 40 years of audio expertise, Mission has introduced the new QX series – a range that combines a beautiful design with an astounding performance. Perfect for use within both hi-fi and home cinema setups, the new QX series speakers will impress not only with the sound they can produce but the affordable price tag that comes attached. The whole range has undergone a complete redesign, offering advanced technologies and enduring extensive, exacting listening tests to evolve into a loudspeaker that will deliver an exciting and dynamic performance over all types of music or movie soundtracks.
The Mission QX-5 floor standing speakers boast bass drivers that feature Mission’s DiaDrive system, a seam-free curvilinear cone that has been formulated from a mixture of the soft pulp and acrylic fibre. This DiaDrive system has been specially designed in order to provide these stunning speakers with natural midrange clarity and lucidity. Backing this curvilinear front cone is stiff, conical support that creates an increased area of contact with the voice coil in order to produce an outstanding transient impact. Finally, the drive unit surround and the fixing screws have all been cleverly concealed behind a unique comb-tooth trim – a design that gives the front face of the speaker it’s signature “high-tech” look.
Design and Drivers
The Mission QX-5 floor-standing speaker has been designed to marry advanced engineering with stylish and attractive aesthetics, allowing them to seamlessly integrate within any pre-existing system and match almost every type of home décor. The front panel of these speakers both hints at the advanced technology held within and present an attractive face to the listener.
The Mission QX-5 utilises Mission’s Inverted Driver Geometry (IDG) driver format which positions the treble unit below the bass/midrange driver, equalising the length of the signal path and thus allowing the sound waves to coincide at head height for the listener. This driver design principle will improve time alignment and offer an overall better response when listening to music or watching movies.
The new ‘ring dome’ treble unit within the QX-5 speakers works to offer high levels of musical detail whilst keeping the distortion levels as low as possible, with the usual dome cavitation effects held at bay. The ‘ring dome’ then utilises what is known as the dual ring radiator – a woven, textile material that is formed in a double ring arrangement. This combination of textile dome and multi-ring surround will help to achieve the optimum stiffness across the maximum radiating area. To top this all off, the Mission QX-5 then incorporates a twin rear cavity non-reflecting design to vent back pressure from the diaphragm into a twin rear cavity, thus reducing any resonance and maintaining a wide operating bandwidth.
When it comes to aesthetics, the QX-5 speakers work hard to ensure they remain stylish whilst able to fit within any system, but the design aspects of the speakers have more than one function. Aluminium top and bottom plates enhance the quality of sound whilst providing a more modern feel; a ribbon-like design across the slot ports ensure the speakers look high-tech whilst enhancing the airflow and avoiding any chuffing from within the bass reflex ports, resulting in a low-frequency performance that achieves lower levels of distortion; and the arc-shaped cabinet corners employ a semi-circular shape to the corners of the speaker in order to smooth diffraction from the drive units, thus allowing them to yield better power distribution into the listening area.
Main features of the Mission QX-5 Floor Standing Speakers
- The crossover uses laminated iron core bass coil to avoid magnetic field interaction
- ‘Ring Dome’ treble unit for high levels of musical detail + low distortion
- Slot port is profiled to reduce ‘chuffing’ distortion
- Carefully crafted acoustic crossover slopes
- Oversized magnet motor system
- Advanced DiaDrive cone system
Specifications of the Mission QX-5 Floor Standing Speakers
- Transducer Compliment: Bass Reflex
- Enclosure Type: 3-Way
- Bass: 2x 6.5″ Long Fibre Composite cone
- Bass: 12” (300mm) cone long-throw
- Treble: 1.5″ Textile Ring Dome
- Sensitivity (2.0V@1m): 90dB
- Recommended Amp Power: 30-200W
- Peak Power Handling: 96dB
- Nominal Impedence: 8Ω Compatible
- Minimum Impedance: 3.5Ω
- Freq Response (Hz): 32 24kHz
- Bass Extension (-6dB): 27Hz
- Crossover Frequency: 180Hz, 1.8kHz
- Cabinet Volume: 16 / 48 Litres
- Dimensions (HWD): 1100 x 220 x 400mm
- Plinth Height: Additional 20mm
- Net Weight: 31.18Kg/pcs
- Finish: Black
