This is Bronze bass, deeply provisioned, authentically proportioned and dynamically fleet of foot, re-tooled from the ground up to punctuate the sound of every Bronze system with stunningly natural bass transients, timed to perfection.

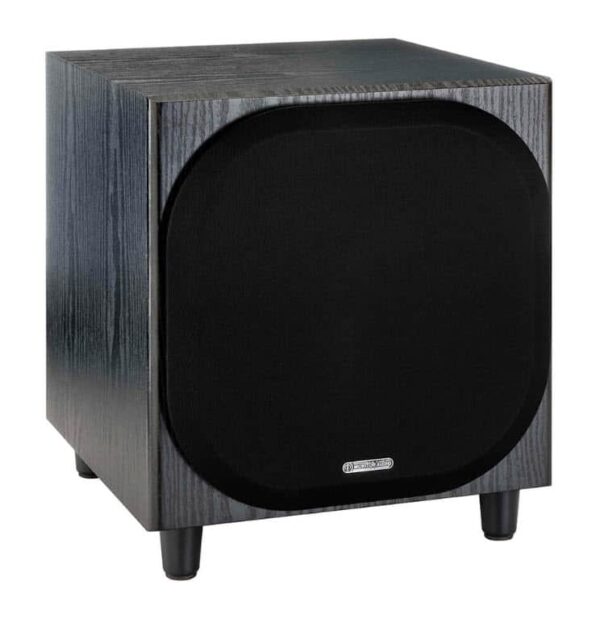

The sophisticated W10 subwoofer is a Bronze original, featuring an exclusive trinity of uprated amplifier topology, powerful DSP processing and long-throw driver design. Advanced switch-mode power conversion techniques, custom DSP tuning and a massive power reservoir combine to generate enormous dynamic headroom from the Class D power-pack, allowing the driver to drop low and punch hard without distortion for a truly sensational deep bass experience.
A down-firing 10″ ABR (Auxiliary Bass Radiator) ensures that with the same compact footprint as its predecessor, the W10 delivers an incredible 6 dB greater SPL at 40 Hz. Choose how you enjoy the W10’s prodigious bass energy with pre-set EQ settings for music, movie or impact.
Technology
Ultra long throw 10″ driver featuring concave ‘dished’ C-CAM cone
10″ flat panel ABR (auxiliary bass driver) mounted on the bottom to augment low frequency extension and power handling
Powerful Class-D Amplifier delivering over 200 W with low distortion
Switch Mode power supply, designed to deliver high continuous rating and provides the instantaneous delivery of high current when required
DSP processing with all control features and crossover performed in the digital domain
Three pre-set EQ mode settings (Music, Movie, Impact)
12 volt trigger – provides switching control from AV amp, processor or home automation control system
18 mm thick MDF construction
Heavy cabinet bracing applied to provide stiff, low resonance cabinet
Premium quality vinyl veneer finishes
Specifications:
Lower Frequency Limit
30 Hz
Upper Frequency Limit
40 —120 Hz (Variable Low Pass filter)
Low Pass Filter Alignment
12 dB/ Octave variable + 12 dB/ Octave Fixed @ 150 Hz
Amplifier Output
220 W
Amplifier Classification
Class D with Switch mode PSU
Drive Unit Complement
1 x 10″ C-CAM Long throw subwoofer driver + 1 x 10″ flat panel ABR
Dimensions (Excluding Amp and Feet (H x W x D))
320 x 320 x 330 mm (125/8 x 125/8 x 13″)
Dimensions (Including Amp, Drivers and Feet (H x W x D))
364 x 320 x 364 mm (145/16 x 125/8 x 145/16″)
Input Impedance
20 ohms
Standby Power Consumption
0.5 W (ErP approved)
Mains Input Voltage
220-240 Vac – 50-60 Hz
Electronic auto-select
Weight
12.8 kg (28 lb 2 oz)
