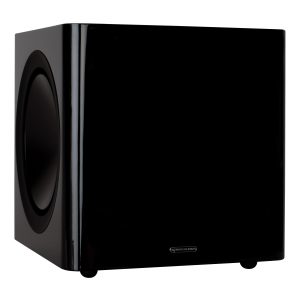

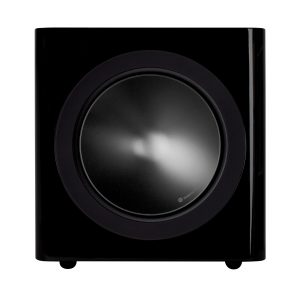

Monitor Audio Radius 390 Subwoofer
The Monitor Audio Radius 390 Subwoofer comprises colour-coded 10″ C-CAM active/ABR drivers, powered by a 200 W Class D amplifier. Enjoy rapid EQ optimisation from Impact, Music and Movie settings, and system automation via the 12 V trigger.
The technology used in the Monitor Audio Radius 390 Subwoofer
- 18 mm MDF cabinet construction with internal bracing
- Cool-running 200 W Class D amplifier with switch mode power supply (SMPSU)
- Twin side-firing 10″ C-CAM drivers – one active and one passive ABR
- Low pass filter switch – for LFE or Stereo input selection
- Power switch with ON – Auto- Off/ trigger settings
- Stereo/ LFE RCA inputs
- 3 x Pre-set EQ settings – Music/Movie/Impact
Specifications of the Monitor Audio Radius 390 Subwoofer
System Format
Active sub-woofer system – Auxiliary (ABR) loading. 18 mm MDF cabinet
Lower Frequency Limit
30 Hz (- 6 dB)
Upper Frequency Limit
Variable 40 – 120 Hz @ 24 dB/Octave
Amplifier Output
200 W @ 1% THD+N
Amplifier Classification
Class D amplifier with Switch mode power supply (SMPSU)
Bass EQ Profiles
Music / Movie / Impact
Phase Control
0 & 180 degrees
Auto Sensing
Line Level >3.5mV
Input Level Requirements
Standby after approximately 15 minutes if no signal sensed
Drive Unit Complement
1 x 10″ (250 mm) C-CAM long throw driver 1 x 10″ (250 mm) ABR
Input Impedance
> 20 ohms
Mains Input Voltage
AC 110 – 120 V ~ 50/60Hz; AC 220 – 240 V ~ 50/60Hz (Factory Region Preset)
Dimensions (Including Amp and Feet (H x W x D))
348 x 330 x 345 mm (1311/16 x 13 x 129/16″)
Connection
Stereo RCA in, LFE in, 12v Trigger in (3.5 mm mono mini-jack)
Trigger Input
5 – 12v via 3.5mm mono mini-jack socket
Power Consumption
200 W / 0.5 W in Standby (ErP approved)
Weight (unpacked)
13.76 kg (30 lb 4 oz)
Brand
Monitor Audio
Monitor Audio is a British company that has been designing and manufacturing high-end loudspeakers for over 40 years. Founded in 1972, the company has built a reputation for creating high-quality, audiophile-grade speakers that deliver exceptional sound quality and performance.
One of Monitor Audio's strengths is their use of innovative technologies and materials in their speaker designs. For example, they were one of the first companies to use ceramic-coated aluminum/magnesium (C-CAM) drivers, which provide a lightweight yet rigid material for the cones that allows for greater accuracy and clarity in sound reproduction. They have also developed a range of other proprietary technologies, such as their ribbon tweeters, which offer high-frequency response and low distortion, and their "Bass Drivers," which use a "dished" cone design to reduce distortion and improve bass performance.
Monitor Audio offers a wide range of speaker models to suit different budgets and needs, from bookshelf speakers to large floor-standing models. They also offer a range of home theater systems that include surround sound speakers and subwoofers, as well as architectural speakers that can be installed in walls or ceilings for a discreet, high-quality audio solution.
In addition to their focus on sound quality and performance, Monitor Audio is also committed to sustainability and environmental responsibility. They use sustainable materials in their products and packaging, and they have implemented a range of initiatives to reduce their carbon footprint and promote eco-friendly practices.
Overall, Monitor Audio is a well-respected brand in the world of high-end audio, known for their innovative designs, exceptional sound quality, and commitment to sustainability.
Buy brand new & 100% genuine Monitor Audio speakers from India's official online dealer at the special offer price with a manufacturers warranty.
