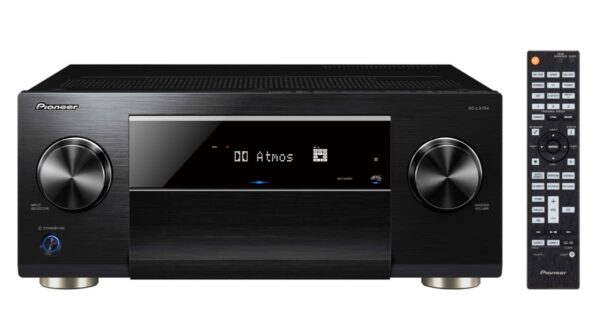

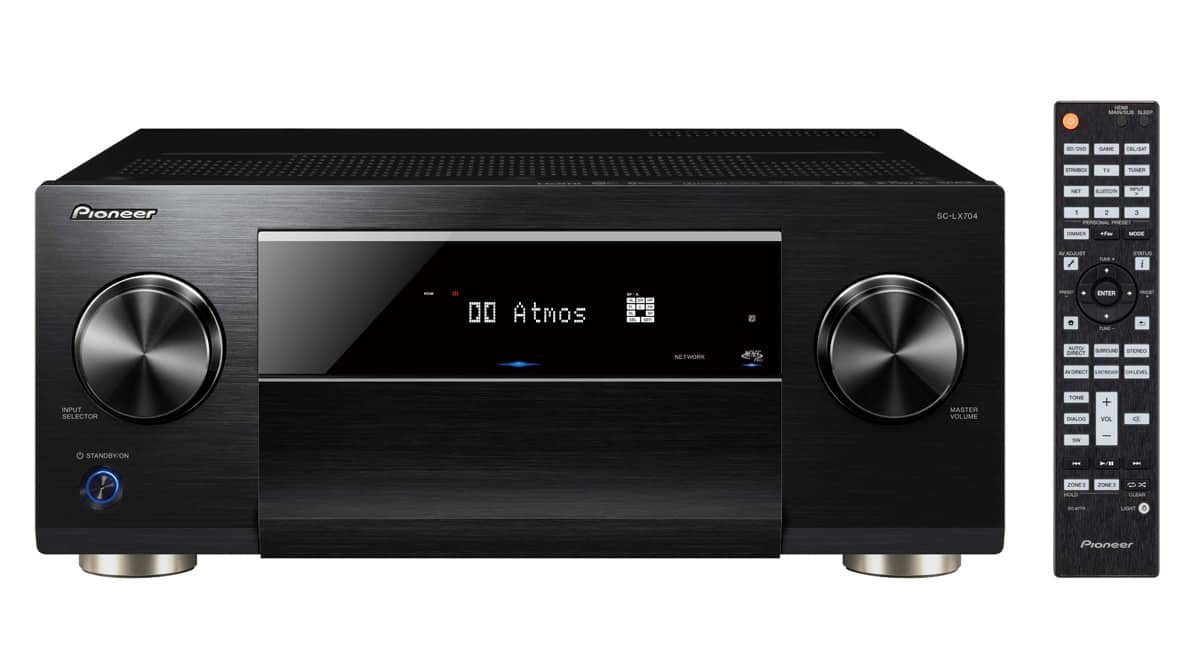

The Pioneer SC-LX704 is a 9.2-channel receiver with 9×205 Watt Direct Energy HD Amplifier, 6 HDMI Inputs (4K), IMAX Enhanced, Dolby Atmos, DTS:X, Zone 2/3, 32-bit DAC, Works with Alexa.
Equipped with the 6th generation of Direct Energy HD Amplifier, the SC-LX704 is worthy of being your home cinema’s centrepiece, and an ideal combination for Pioneer’s flagship universal disc player. Two ES9026PRO DACs ensure quality audio reproduction, while MCACC Pro Auto Room Tuning technology with Full Band Phase Control brings out the best from 3D surround sounds of IMAX® Enhanced, Dolby Atmos®, and DTS:X. Enjoy rich, vibrant sound with PQLS jitterless transmission. The new Audio Exclusive Mode and AV Direct Mode enhance detailed sound reproduction by turning off the unused functions to eliminate unwanted noise.
DIRECT ENERGY HD AMPLIFIER
Continuously evolving throughout the years, Pioneer’s Direct Energy HD Amp has now reached the 6th generation. New power coils are adopted for the ideal speaker drive, as well as new custom film capacitors co-developed with Shinyei Capacitor for the ultimate sound. The power supply and patterning has been developed through repeated tuning. Also, the entire transmission path from the pre stage to the power stage has been changed to balanced circuitry, to transmit noise-free high-quality signals to the power stage.
MCACC PRO AUTO ROOM TUNING
MCACC Pro, the pinnacle of Pioneer’s auto room tuning technology, analyses the phase and group delay characteristics to precisely control phase differences between speakers. MCACC Pro corrects phase differences in all ranges and all channels, from phase difference in the original audio material to the sound emitted from the speakers.
The SC-LX704 is IMAX Enhanced, certified to deliver the powerful sound just as intended by the filmmaker, and provide the immersive experience on your home theater.
DOLBY ATMOS/DOLBY SURROUND UPMIXING
The SC-LX704 is compatible with 7.2.4ch/7.2.2ch/5.2.4ch configuration of Dolby Atmos®. You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs such as PCM and DSD can be upmixed using Dolby Surround for enjoying 3D surround sound.
DTS:X/DTS NEURAL:X UPMIXING
DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required. Experience an immersive soundscape with incredibly rich and lifelike audio. Other audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for enjoying 3D surround sound.
FULL BAND PHASE CONTROL
The technology focuses on the group delay in the speaker network filter, and adjusts the phase of each unit as well as the group delay for each speaker. The technology gives multi-range speakers the sound coherence of full-range speakers, while retaining the wide frequency range advantage.
WORKS WITH ALEXA
Works with Alexa makes you control SC-LX704 with your voice via Alexa-enabled device such as the Amazon Echo, to play, pause, and skip titles or control the volume. You can enjoy the music via streaming service such like Amazon Music by selecting song title, artist name, release year, and genre.
NEXT GENERATION VIDEO STANDARD READY
The SC-LX704 supports pass-through for HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What’s more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Colour Gamut (BT.2020), and HDCP 2.3, so you will have no problem when upgrading to new devices, and can also enjoy premium content such as 4K videos with digital copy protection.
ESS 384 KHZ/32-BIT DAC
Two 384 kHz/32-bit ESS DACs (ES9026PRO), same as the ones used for Pioneers PD-70AE SACD player, are used for all channels. With extremely precise D/A conversion and high S/N ratio, the DAC provides powerful sound full of rich details.
2 SUBWOOFER PRE-OUT
You can connect two powered subwoofers, and also set the volume level for each one at different levels.
PQLS JITTERLESS SOUND TRANSMISSION
With the precision quartz controller on the AV receiver, Precision Quartz Lock System (PQLS) eliminates distortion caused by timing errors. It controls the amount of audio signals from the AV receiver to the Pioneer universal disc player connected via HDMI, giving the best possible digital-to-analogue conversion.
PQFA JITTERLESS SOUND PROCESSING FOR NETWORK/USB
With PQFA (Precision Quartz File-based Audio), clocks are available for each stage of input, digital signal processing, and D/A conversion, and the shorter path prevents jitter from occurring. Additionally, a high-precision clock IC (OSC) is used to realise D/A conversion with significantly less jitter.
AUDIO EXCLUSIVE MODE
Interference from video signals is eliminated by turning off the video signal path via HDMI. You can enjoy detailed sound, full of spatial feel.
AV DIRECT MODE
The feature turns off the network functions to suppress digital noise within the AV receiver, and improves sound quality for analogue playback, digital input, HDMI playback etc. Mode 1 turns off the network module operation clock, while Mode 2 shuts down the network power completely for more superior sound.
ANTI-STANDING WAVE INSULATORS
The Anti-Standing Wave Insulator features a special form with no parallel sides inside to prevent cavity resonance. This makes the sound localisation, tone, and scale clearer, while also enhancing the response to quick sound.
AC INLET TYPE THICK CABLE
A thick AC inlet type power cable is included to provide superior sound.
Amplification Type: Class D (Direct Energy HD)
205 W x 9ch (6 ohms, 1 kHz, THD 1 %, 1ch Driven IEC)
Advanced Direct Construction
Anti-Standing Wave Insulator
AC Inlet Type Thick Cable
Dolby Atmos®, Dolby Surround Upmixer
DTS:X®, DTS Neural:X® Upmixer
Dolby Atmos Height Virtualizer
Dolby® TrueHD, Dolby Digital Plus
DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express
DSD Direct Playback via Network/USB (11.2, 5.6, 2.8 MHz/2 ch)
DSD Disc (SACD) Playback via HDMI (2.8 MHz/2 ch, 5.1 ch)
Digital Quad-Core 32-bit DSP (Cirrus Logic) + Aureus™ floating-point DSP (TI)
384 kHz/32-bit D/A Conversion with ES9026PRO x 2
Enhanced Audio Return Channel (eARC) on HDMI
MCACC Pro Auto Room Tuning
• Full Band Phase Control
• Precision Distance
• Subwoofer EQ
• Multi-point Standing Wave Control
PQLS Jitterless Sound Transmission
PQFA Jitterless Sound Processing for Network/USB
Audio Exclusive Mode
AV Direct Mode
Advanced Sound Retriever (2ch)
Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance
Ultra HD Pass-through with HDCP 2.3 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
HDR10, HLG and BT.2020 Compliant Wide Colour Gamut Signal Pass-through
Dolby Vision™ Compatible
Ultra HD Upscaling (1080p to 4K)
3D Ready (Blu-ray Disc™, Broadcast, and Games)
Deep Colour (36-bit), “x.v. Colour”
FlareConnect™ for Multi-room Audio
Works with Alexa
Chromecast built-in and Works with the Google Assistant
DTS Play-Fi with Pioneer Music Control App
Apple AirPlay 2
Works with SONOS
Amazon Music, Spotify, TIDAL, and Deezer Hi-Fi Music-Streaming Services Ready
Internet Radio with TuneIn
Hi-Res Audio File Playback via USB/Network
• Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV (RIFF) and 11.2 MHz DSD
HDMI 1 In
USB 1 In for USB Drive
MCACC Setup MIC In
Phones 1 Out
HDMI 6 In (4 Assignable)
HDMI 3 Out (1 for MAIN, 1 for SUB, 1 for ZONE 2)
Ethernet 1 In
USB 1 In for USB Drive
AV (Component) 2 In (Assignable)
AV (Composite) 2 In (Assignable)
Audio 6 In (Assignable)
Phono (MM) 1 In
Digital Coaxial 2 In (Assignable)
Digital Optical 3 In (Assignable)
Subwoofer x 2 Pre Out
ZONE B Line Out for Wireless Headphones
ZONE2/ZONE 3 Pre/Line Out
Speaker 11ch Out (FRONT, CENTER, SURROUND, SURROUND BACK, HEIGHT 1, HEIGHT 2)
IR 2 In/1 Out
12 V Trigger 2 Out
Dimensions (W x H x D): 435 x 185 x 440 mm
Weight: 18.5 kg
