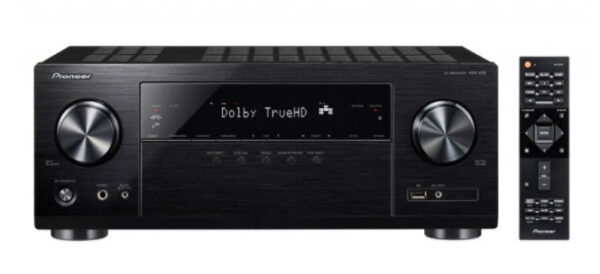

The Pioneer VSX-832 is a 5.1-channel receiver with 5×130 watts, full-range streaming, Dolby Atmos and dts:X with Surround Enhancer, 4K Ultra HD, video scaler, 4 HDMI ports, HDCP 2.2, high resolution audio playback, dual-band WiFi & Bluetooth.
Dolby Atmos for 3.1.2ch with Surround Enhancer
The VSX-832 supports up to 3.1.2ch Dolby Atmos*. Surround Enhancer*, developed by Dolby Laboratories, Inc., is a virtual speaker technology based on Head-Related Transfer Function (HRTF). With DSP, virtual surround speakers deliver the sound that usually comes from surround speakers. The 3.1.2ch is virtually expanded to 5.1.2ch to create 3D surround sound field. Even those who have difficulty installing rear speakers can also enjoy various audio formats** in a wide sound field with Surround Enhancer, as well Dolby Atmos.
DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required. Experience an immersive soundscape with incredibly rich and life-like audio.
When using Dolby Atmos-enabled speakers, high directivity sound from the unit reflects off the ceiling, while low directivity sound directly reaches the ears. The different pathways cause a phase shift, making the sound feel uncomfortable. The Reflex Optimizer which uses the Phase Control technology adjusts this shift, and improves the localization of the sound image by aligning the frequencies with those of the floor speakers, creating the ideal reproduction environment.
Next Generation Video Standard Ready
The VSX-832 supports pass-through for HDR10 and Dolby Vision. By connecting the source device, you can enjoy these latest video standards on a compatible display. What’s more, all HDMI terminals support 4K, BT.2020, and HDCP 2.2, so you will have no problem when upgrading to new devices.
MCACC Auto Room Tuning
Create the optimum acoustic environment with Pioneer’s MCACC (Multi-Channel Acoustic Calibration System), developed with the expertise of professional recording studios. With the custom microphone, the system automatically compensates for differences in speaker size, level and distance, and equalizes response.
Synchronized Sound with Phase Control
As an innovative solution for the phase lag between the subwoofer and the main channel speakers caused by the bass management filter, Phase Control compensates the delayed bass to improve sound synchronization.
Built-in Dual Band Wi-Fi
Enjoy network features such as audio streaming via wireless LAN connection. The built-in Wi-Fi is dual band, supporting both 5 GHz and 2.4 GHz frequency channels. By using the 5 GHz band, you can enjoy steady and uninterrupted streaming of audio files.
Internet Radio & Online Music
Enjoy a limitless flow of music, sports, talk, and news entertainment from internet radio stations and online music services, including Pandora*, Spotify, TuneIn, TIDAL, and Deezer.
Multi-room Audio Offers a Variety of Ways to Enjoy Music
FireConnect™ mirrors network audio and external analog sources connected to the master component—from streaming services to vinyl records—on FireConnect -compatible speakers in other rooms. Music selection, speaker grouping, and playback management across the home are built into Pioneer Remote App for iOS and Android™.
The VSX-832 features Chromecast* built-in, so you can use your mobile device to stream your favorite music, radio, or podcasts to your speaker. You can control the audio from anywhere in the house using Chromecast-enabled apps running on your personal device—iPhone, iPad, Android phone and tablet, Mac and Windows laptop, and Chromebook.
DTS Play-Fi* wirelessly streams any audio content from any compatible mobile device to the VSX-832 and DTS Play-Fi compatible audio systems, creating a multi-room system in your home. You can stream different sources to different speakers at the same time from the DTS Play-Fi app.
Amplification Type: Direct Energy
130 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)
Dolby Atmos®* for 3.1.2ch/Dolby Surround*
Dolby® TrueHD/Dolby Digital Plus
DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS 96/24/DTS-ES/DTS-HD Express
DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
Digital Core Engine with Cirrus Logic (Quad Core) x1
384 kHz/32-bit DAC (AK4438)
HDMI Audio Return Channel (ARC)
MCACC Auto Room Tuning
• Phase Control
• Subwoofer EQ
Advanced Sound Retriever (2ch)
Advanced Surround Modes
• Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround Advance
AM/FM Tuner 40 Presets
Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
HDR10 and BT.2020 Support
Dolby Vision Compatible
Ultra HD Upscaling (1080p 4K)
3D Ready (Blu-ray Disc™, Broadcast, and Games)
Deep Color (36-bit), “x.v.Color”
Whole Home Audio with FireConnect*
DTS Play-Fi* Ready
Apple AirPlay Certified
Spotify®, TIDAL, Deezer, and Pandora Music-Streaming Services Ready
Internet Radio with TuneIn
Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)
Hi-Res Audio File Playback via USB/Network
• Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV
• 5.6/2.8 MHz DSD Playback (except via Wireless LAN)
• Dolby® TrueHD Playback (via USB only)
Works with Pioneer Remote App (iOS/Android) for Multi-room Entertainment Control and Network Streaming
GUI with System/Network Setup Menu
Auto Power Off in HDMI Standby Through
User-Friendly Simple Remote Control
USB 1 In for USB Drive
MCACC Setup MIC In
Audio 1 In (Mini Stereo Jack)
Phones 1 Out
HDMI 4 In (4 Assignable)
HDMI 1 Out
Ethernet 1 In
USB 1 In for USB Drive
AV (Composite) 2 In (Assignable)
Digital Coaxial 1 In (Assignable)
Digital Optical 1 In (Assignable)
Subwoofer 1 Pre Out
Speaker 5 ch Out (FRONT, CENTER, SURROUND)
DIMENSIONS & WEIGHT
Dimensions (W x H x D): 435 x 173 x 320.5 mm
Weight: 8.6 kg
