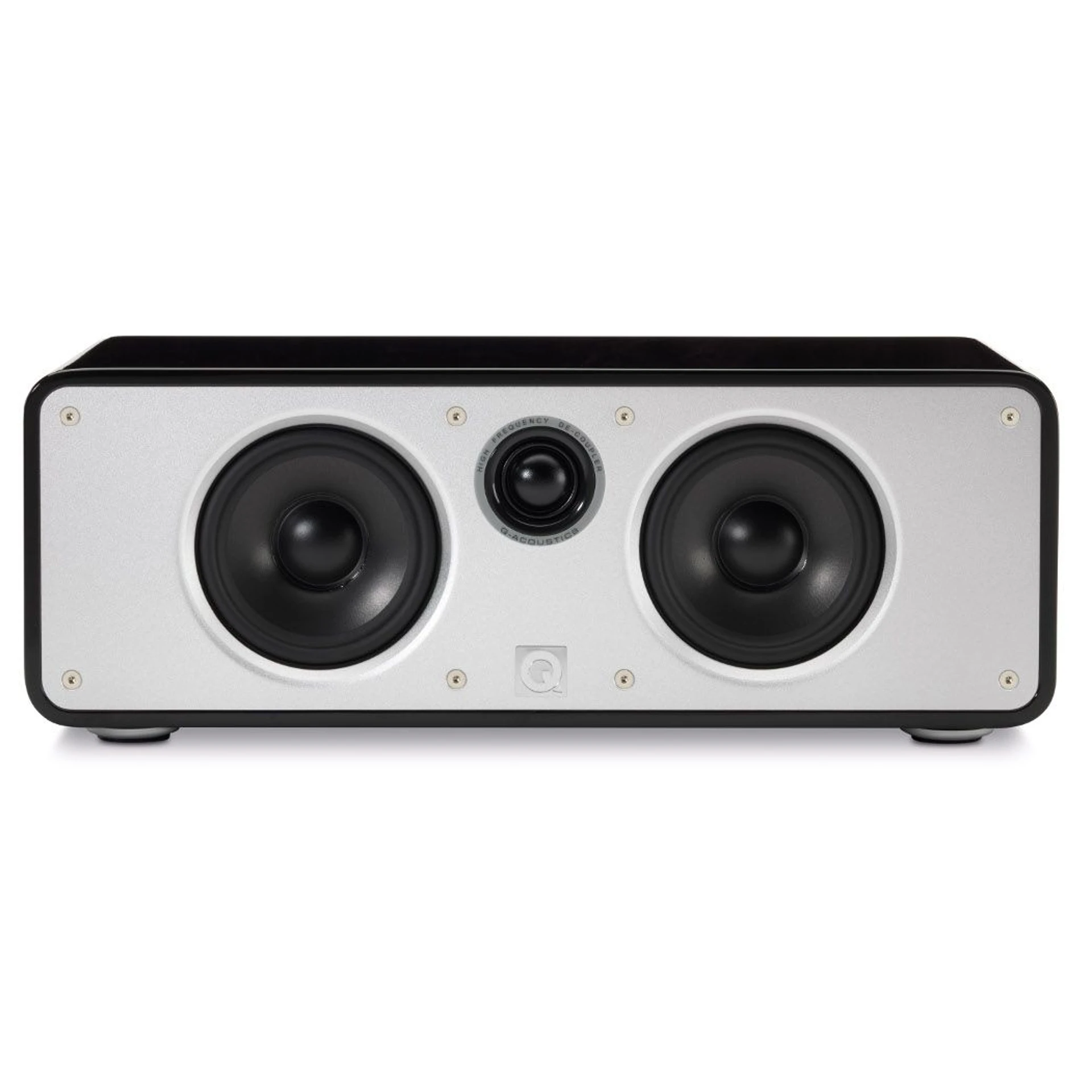

Q Acoustics Concept Centre Speaker

Q Acoustics Concept Centre Speaker

The Q Acoustics Concept Centre Channel Speaker is the heart of the Concept Cinema System. This new loudspeaker boasts a precisely optimised implementation of the revolutionary ‘Gel core’ cabinet technology developed for the groundbreaking Concept 20 and Concept 40 models. The result is a central channel speaker delivering astonishingly clear and dynamic dialogue.

Enclosure type: 2-way reflex, Bass Unit: 2 x 100mm, Treble Unit: 25mm, Frequency Response: 75Hz – 22kHz, Nominal Impedance: 6ohm, Minimum Impedance: 4ohm, Sensitivity: 88dB, Recommended Power: 25 – 75w, Crossover Frequency: 2.9kHz, Dimensions H/D/W mm: 150 x 198 x 430

Centre of Excellence
At the heart of any home cinema system is the Q Acoustics Concept Centre Speaker, handling the difficult dialogue and often much more besides. The Concept Centre is a precisely optimised implementation of the GelcoreTM cabinet technology used in Concept 20 and 40 to bring the highest quality performance from this key Home Cinema component. This ultra-low resonance and beautifully lacquered cabinet design with magnetic grille allow the dual 105mm drive units and wide dispersion 25mm tweeter to perform at their very articulate best.

Ultra-Low Resonance Cabinet Design
The Q Acoustics Concept Centre Speaker uses GelcoreTM Cabinet Construction, where two layers of MDF, are separated by a bespoke, resonance-absorbing, non-setting adhesive, which converts the kinetic energy and disperses it as heat. This substantially reduces distortion and allows the individual drive units to deliver their optimal performance; a pure and uncoloured sound.

Simple to Drive, Simple to Position
The Q Acoustics Concept Centre Speaker is easily driven by any good-quality amplifier, providing effortless peaks and crescendos in music and movie soundtracks. Alternative locations for positioning the speaker in the listening room are catered for by providing a foam bung that can be inserted in the rear-mounted reflex port, modifying the bass response to suit positioning against a rear wall or AV furniture.

Specifications of the Q Acoustics Concept Centre Speaker

• Enclosure type: 2-way reflex
• Bass Unit: 2 x 100mm
• Treble Unit: 25mm
• Frequency Response: 75Hz – 22kHz
• Nominal Impedance: 6ohm
• Minimum Impedance: 4ohm
• Sensitivity: 88dB
• Recommended Power: 25 – 75w
• Crossover Frequency: 2.9kHz
• Dimensions H/D/W mm: 150 x 430 x 198 mm (5.9 x 16.9 x 7.8 in) cabinet
• Full Dimensions H/D/W mm: 156 x 430 x 230 mm (6.1 x 16.9 x 9.1 in) overall
• Weight: 6.8kg (15 lbs)
• Sold in: Single
