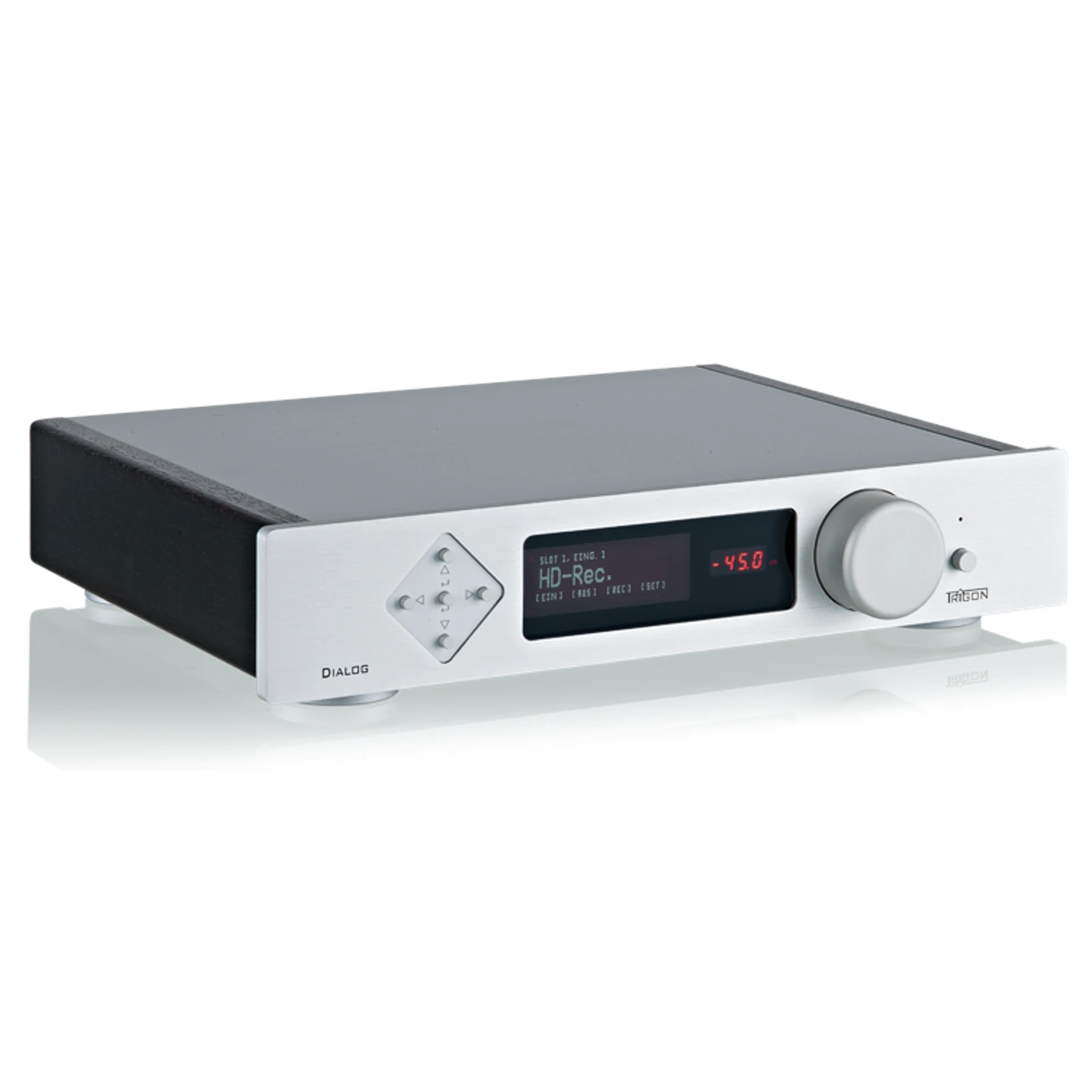

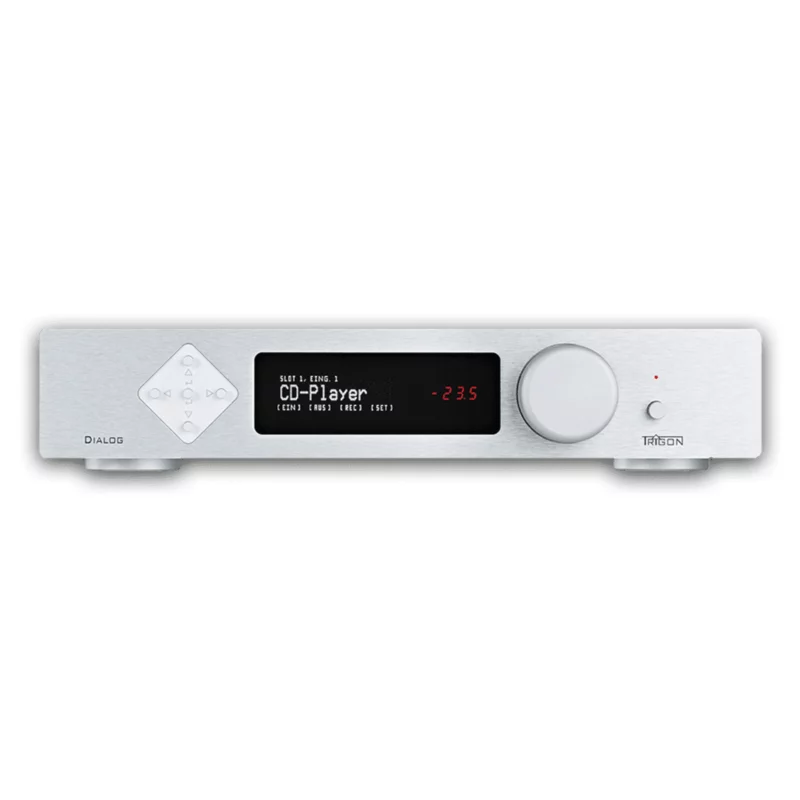

Trigon DIALOGUE Preamplifier
Description
PremiumLine defines the place in the front row of authentic music reproduction, dialogue, and the invitation to musical dialogue. Trigon positions this audio component in the premium segment of high fidelity, in terms of appearance and performance. Timelessly elegant design in aluminium, lacquer and chrome, innovative conception and technology, highest quality components and perfect craftsmanship form the PremiumLine synthesis.
The line preamplifier Dialog has a modular structure and can be equipped with up to eight different modules on the back as required. The standard includes symmetrical and asymmetrical input and output modules. In addition, the range of modules is constantly being expanded. A PHONO MM/MC module is currently available and a D/A converter module is in development. The dialog can therefore be configured flexibly and in a variety of ways according to individual customer requirements.
A graphic display that can be dimmed and switched off guides you through the menu in clear text and is largely self-explanatory. The diverse connection, setting and control options can also be controlled via the Trigon Director system remote control (full aluminium silver). Innovative circuit technology with high bandwidth, digital volume adjustment and constructive exclusion of harmful influences guarantee the highest quality of the music signals.
The power supply is stored in its own housing using electronic switching power supplies, which ensure stable voltage conditions at all times, in order to exclude power supply interference on the sensitive audio signals.
The integrated concept of extremely complex aluminium skeleton construction, sandwich construction of the device cover and vibration absorber feet prevent sound interference due to microphonics. The result is a highly musical dialogue.
Technical Data
Entrance | maximum 7 modules |
Input impedance | usually 47 kOhm |
Input sensitivity | depending on the modules used |
Total harmonic distortion (THD + N) | <0.02% |
Transmission range | 1Hz – 450kHz (depending on module configuration) |
Exits | maximum 7 modules |
Output impedance | usually 33 ohms |
Crosstalk attenuation | < -80dB (1kHz) |
signal-to-noise ratio | < -96dBA |
Effect paths | 1 module |
Accessories (optional) | IR remote control DIRECTOR |
Weight | 10.5Kg |
Dimensions | Dialogue: 440 x 89 x 350 mm (WxHxD) |
Power supply: 200 x 58 x 350 mm (WxHxD) | |
guarantee | 3 years |
