Parasound HALO A21+ Power Amplifier
Description of the Parasound HALO A21+ Power Amplifier
The Parasound HALO A21+ Power Amplifier is a pinnacle of power and fidelity
The 21+ has two channels providing 250 watts per channel into 8 Ω, it delivers breathtaking audio performance. The high bias Class A/AB operation ensures accurate and detailed sound reproduction, while the stable operation into 2 Ω loads allows for versatility in speaker configurations. The direct-coupled design, free from capacitors in the signal path, preserves signal integrity and enhances transparency. With balanced XLR and unbalanced RCA inputs and A/B speaker terminals, it offers flexibility and compatibility. Experience pure power and fidelity with the Halo A 21+ power amplifier.
Features of the Parasound HALO A21+ Power Amplifier
- 300 watts x 2 @ 8 Ω RMS, both channels driven
- 500 watts x 2 @ 4 Ω RMS, both channels driven
- 1000 watts x 1 @ 8 Ω, in bridged mode
- Circuitry designed by legendary John Curl
- High bias Class A/AB operation
- 60 amperes peak current per channel
- Stable with speaker impedance dips to 1.5 Ω
- Balanced inputs with discrete circuits
- CHK Infinium, custom 5-way speaker binding posts
- Gold-plated RCA input & loop output jacks
- Direct-coupled signal path, no capacitors or inductors
- DC Servo and relay protection circuits
- AC turn-on inrush surge protection with relay bypass

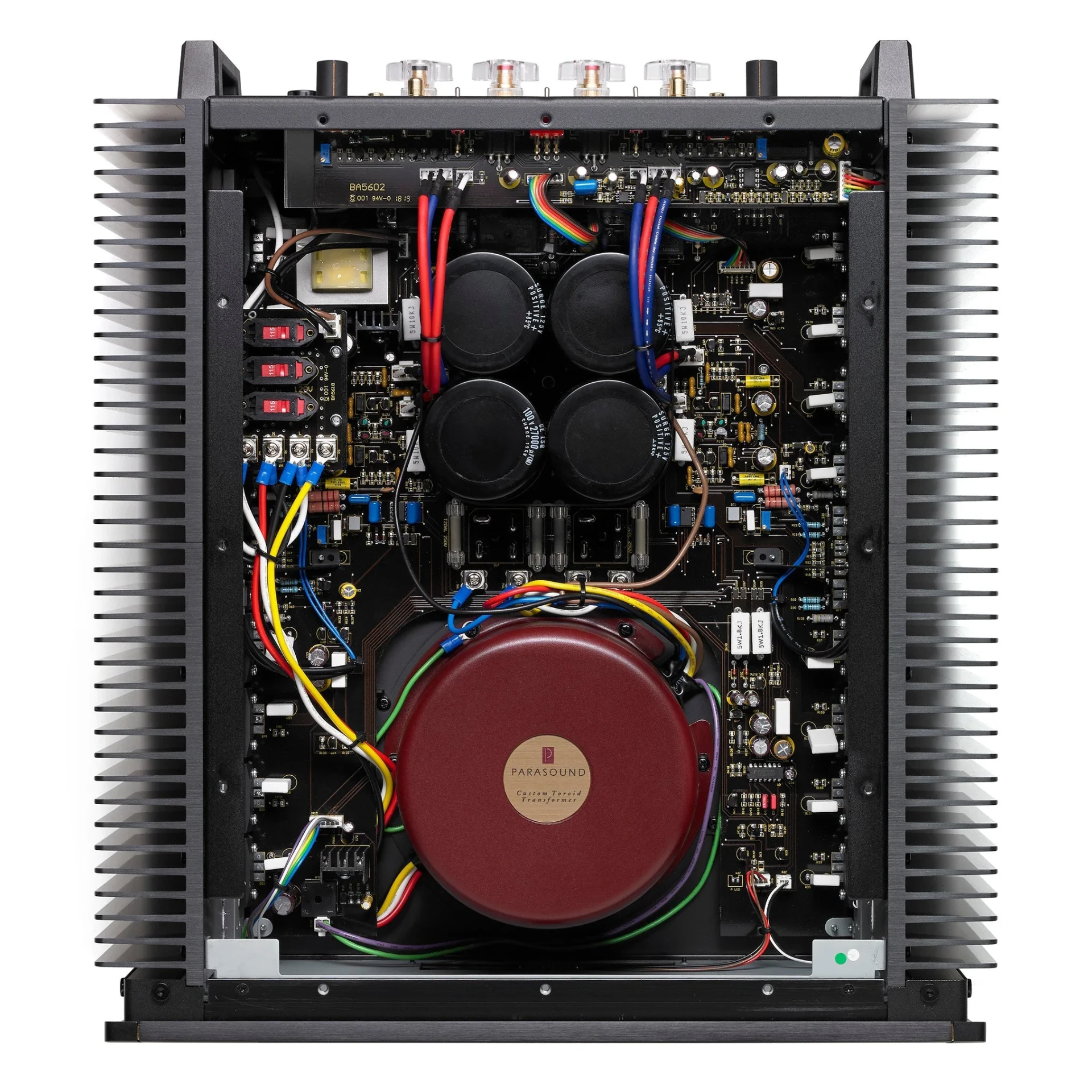

- JFET input stage, MOSFET driver stage
- 16 beta-matched 15-ampere, 60-MHz bipolar output transistors
- 1.3 kVA shielded toroid transformer with/ independent windings for each channel
- Independent power supplies for the input stage, driver stage and output stage
- 108,000 µF filter capacitors for output stages
- Full power is rated all the way down to 5Hz for unrestricted low-end bass
- Harris hyper-fast soft-recovery bridge diode rectifiers
- Automatic turn-on by 12 V trigger or audio sensing
- 4 rack space chassis with rear carry handles
Specifications of the Parasound HALO A21+ Power Amplifier
Power Output – Stereo Mode (0.1% THD)
300 watts x 2, 8 Ω, both channels driven
500 watts x 2, 4 Ω both channels driven
Power Output – Bridged Mode (0.1% THD)
1000 watts x 1, 8 Ω
Bridged 4 Ω operation is not recommended
Power measurements are at 120 VAC:
0.1% THD, RMS continuous power,
full audio band (20 Hz – 20 kHz)
Current Capacity
60 amps peak, per channel
Slew Rate
> 130 volts per microsecond
Frequency Response
5 Hz – 100 kHz, +0/-3 dB
20 Hz – 20 kHz, +0/-0.25 dB
Total Harmonic Distortion (THD)
< 0.1 % at full power
< 0.03 % at typical listening levels
IM Distortion
< 0.04 %
TIM
Unmeasurable
Inter-channel Crosstalk
> 80 dB at 1 kHz
> 70 dB at 20 kHz
Input Impedance
Unbalanced: 33 kΩ
Balanced: 66 kΩ,(33 kΩ per leg)
Total Gain
29 dB
Input Sensitivity for 28.28 V Output into 8 Ω
Unbalanced: 1 V
Balanced: 1 V per leg
S/N Ratio
> 115 dB, input shorted, IHF A-weighted
> 110 dB, input shorted, unweighted
Damping Factor
> 1100 at 20 Hz
DC Trigger Requirements
+9 Vdc to +12 Vdc, 5 mA
Audio Trigger Requirements
2 mV – 10 mV

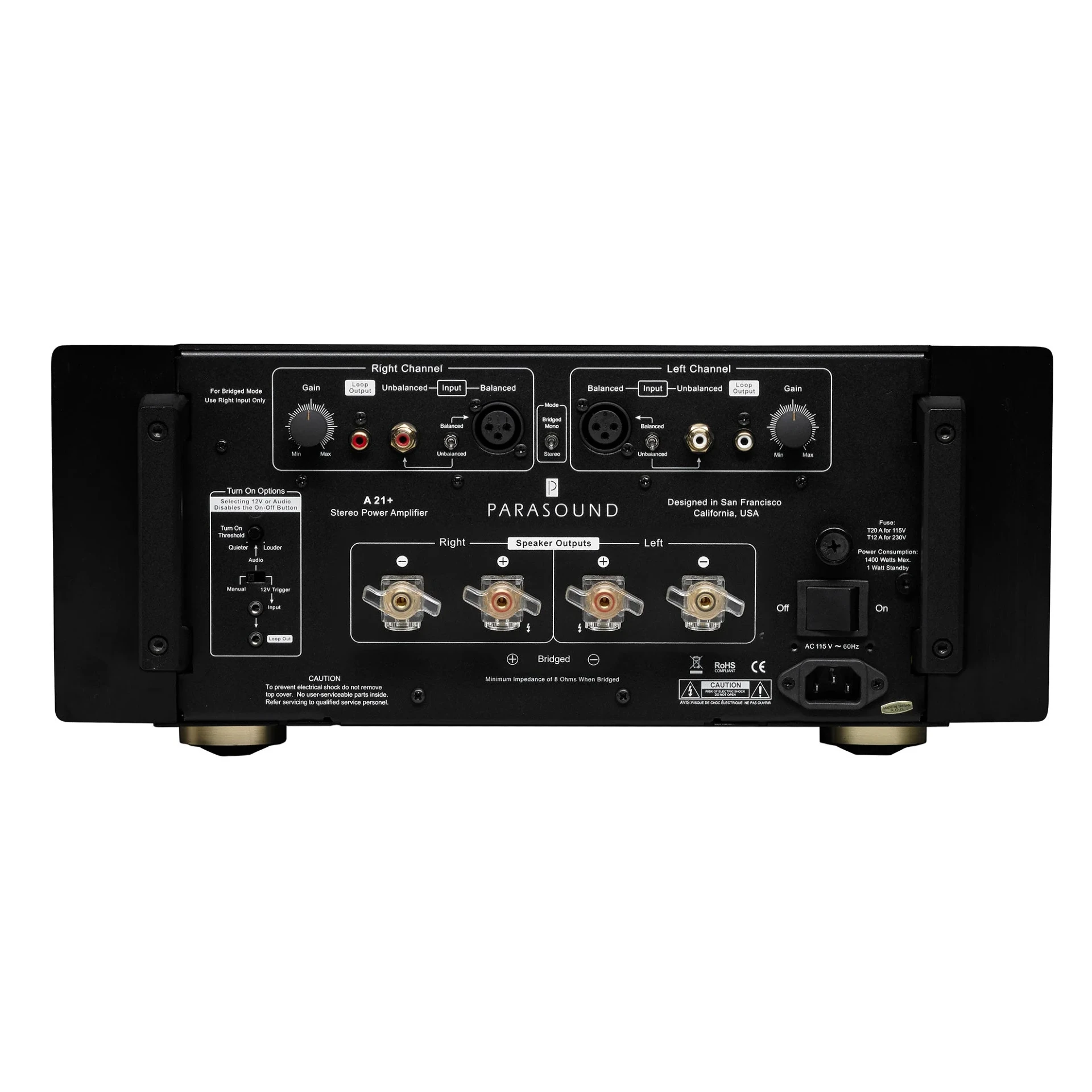

XLR Pin Identification
1 = Ground (Shield)
2 = Positive
3 = Negative (Return)

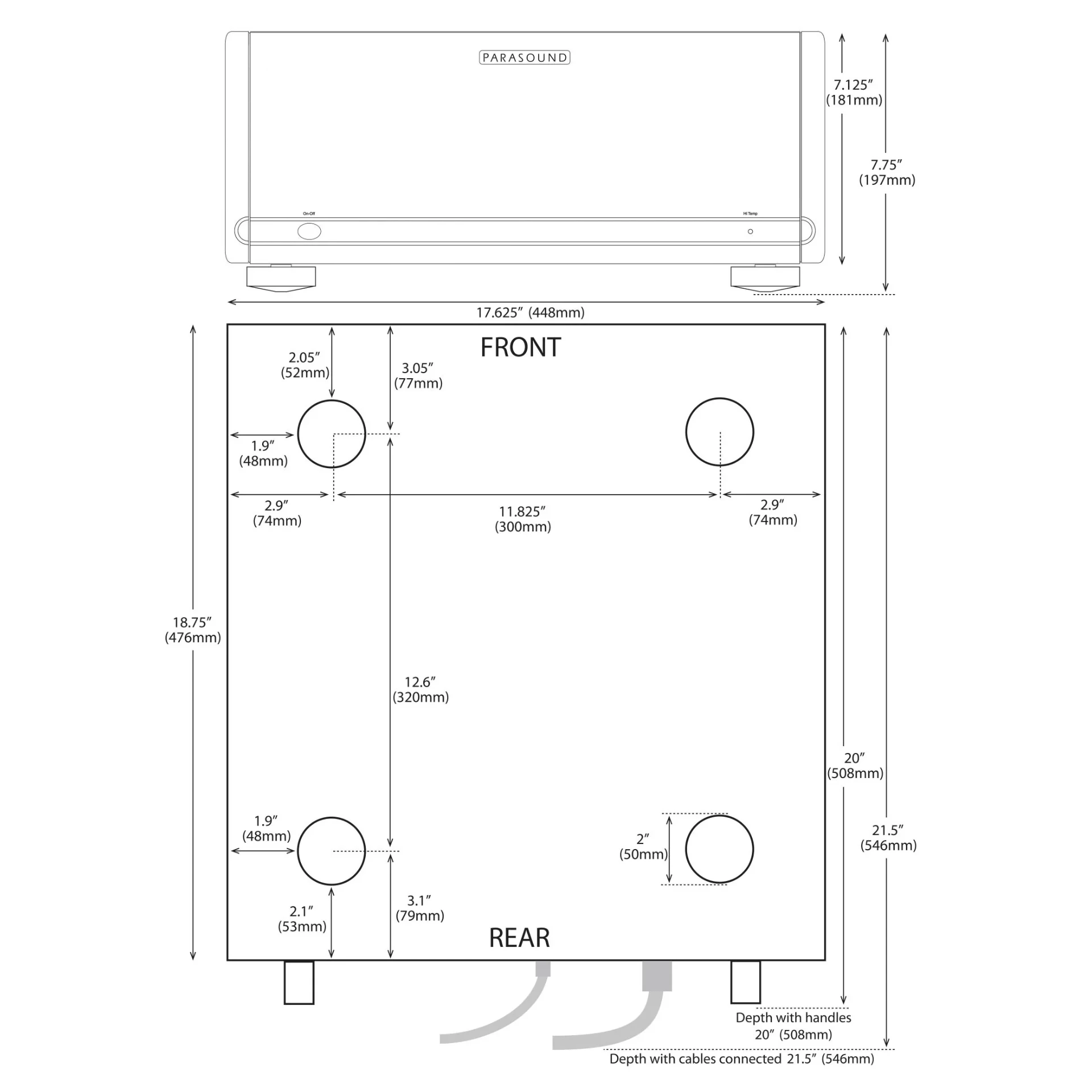

Dimensions
Width: 17-5/8″ (448 mm)
Height without feet: 7-1/8″ (181 mm)
Height with feet: 7-3/4″ (197 mm)
Depth: 20″ (508 mm)
Depth with cables: 21-1/2″ (546 mm)
Net Weight
71 lb. (32.2 kg)
Shipping Weight
88 lb. (39.9 kg)
Power Requirement
Standby: 1 Watt
Idle (no music playing): 160 Watts
Typical Listening levels: 300 Watts
Maximum: 1400 Watts
