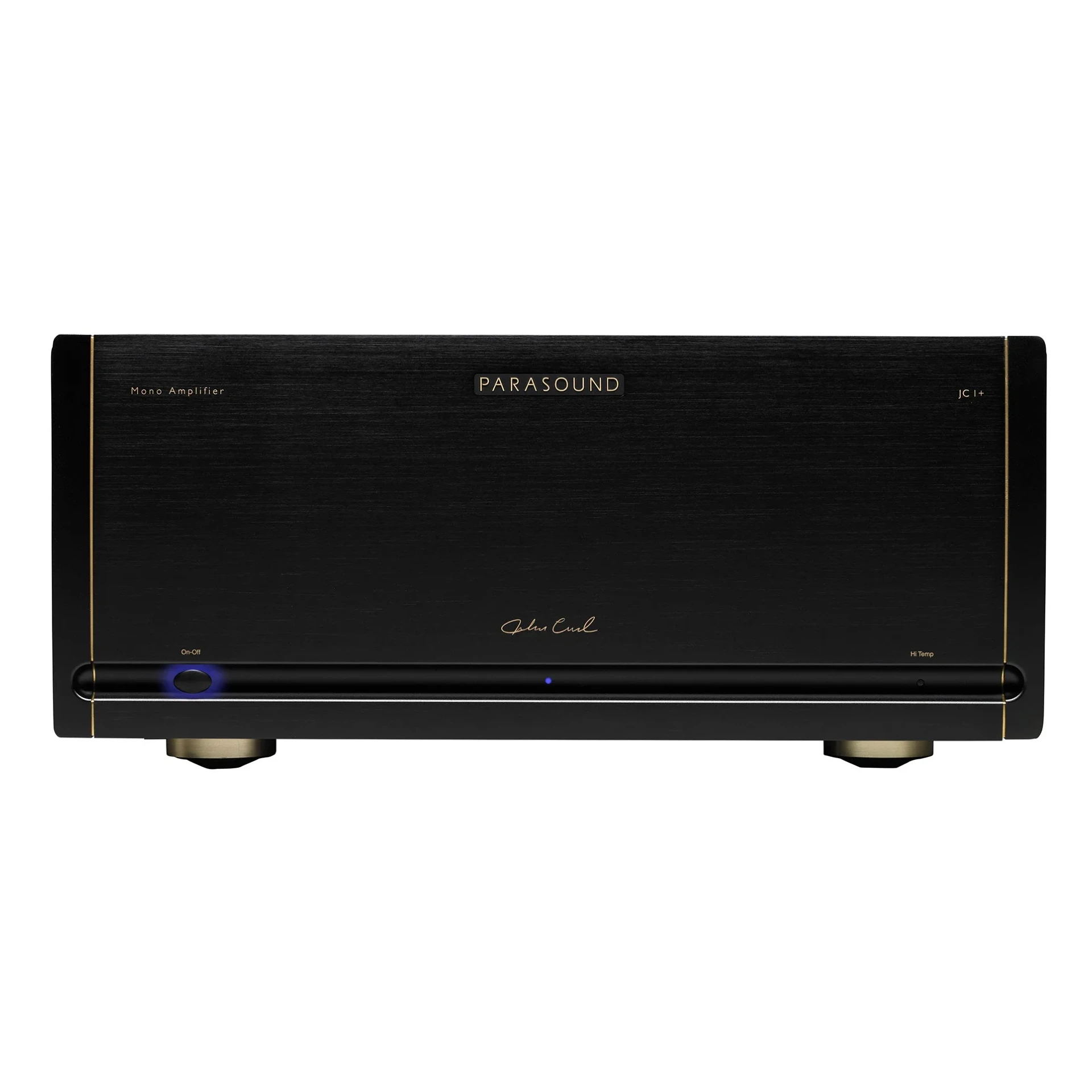

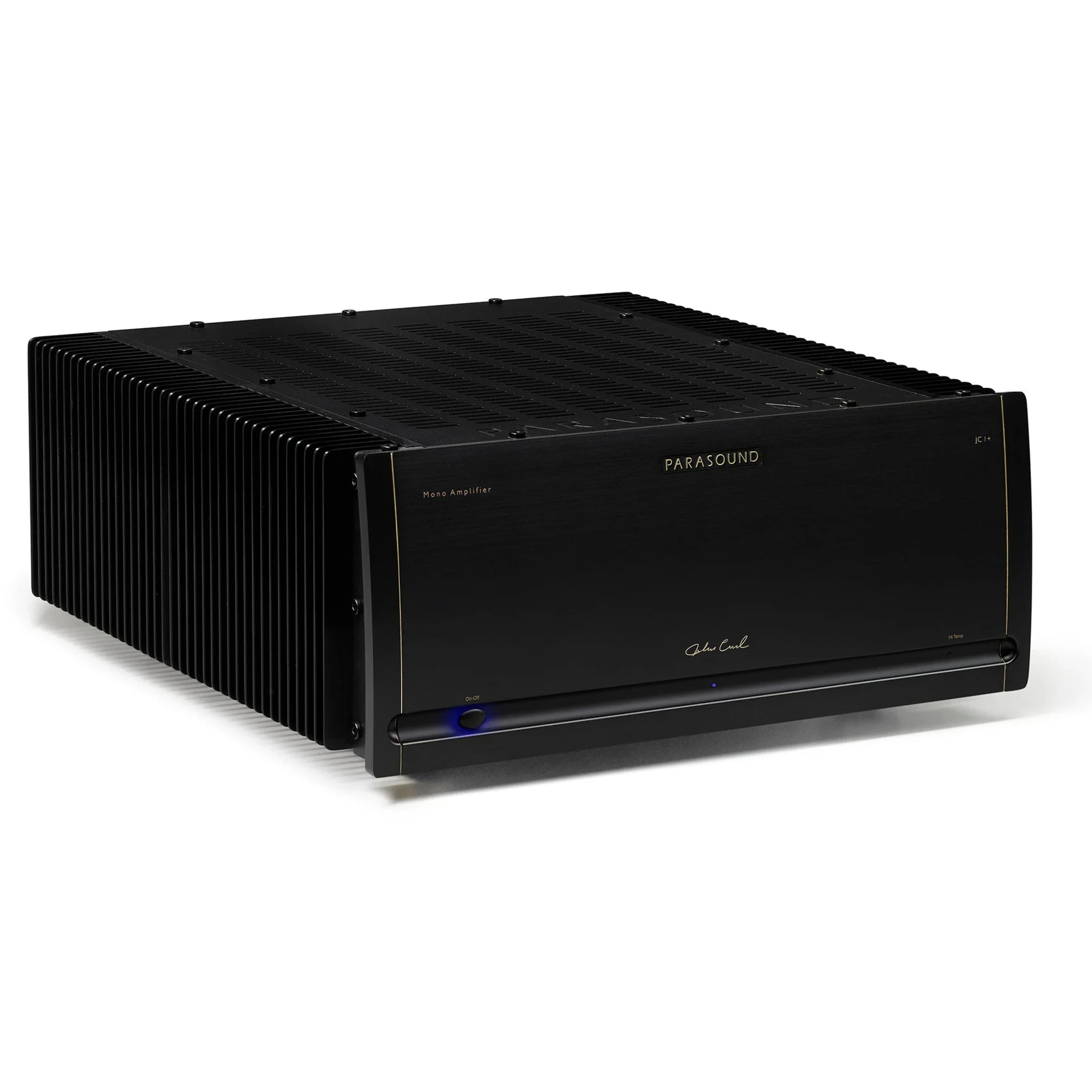

Parasound JC1+ Monoblock Power Amplifier
Description of the Parasound JC1+ Monoblock Power Amplifier
The Ultimate High-Performance Mono Power Amplifier
The JC1+ represents the pinnacle of Parasound’s engineering, delivering exceptional performance for the finest loudspeakers and surpassing even the most expensive competitors. This masterpiece was developed by Parasound’s renowned design team, led by legendary audio designer John Curl—the “JC” behind critically acclaimed models like the JC1, JC2BP, JC3+, and JC5.
Powerful and Precise Performance
The JC1+ is the result of five years of intensive design and testing, achieving advancements in every respect over the iconic JC1. With power ratings of 450 watts RMS into 8 ohms, 850 watts RMS into 4 ohms, and 1,300 watts RMS into 2 ohms, alongside a peak current capability of 180 amperes, the JC1+ brings your speakers to life. The first 25 watts are delivered in pure Class A, ensuring an exceptional listening experience.
Even More Impressive Than Its Predecessor

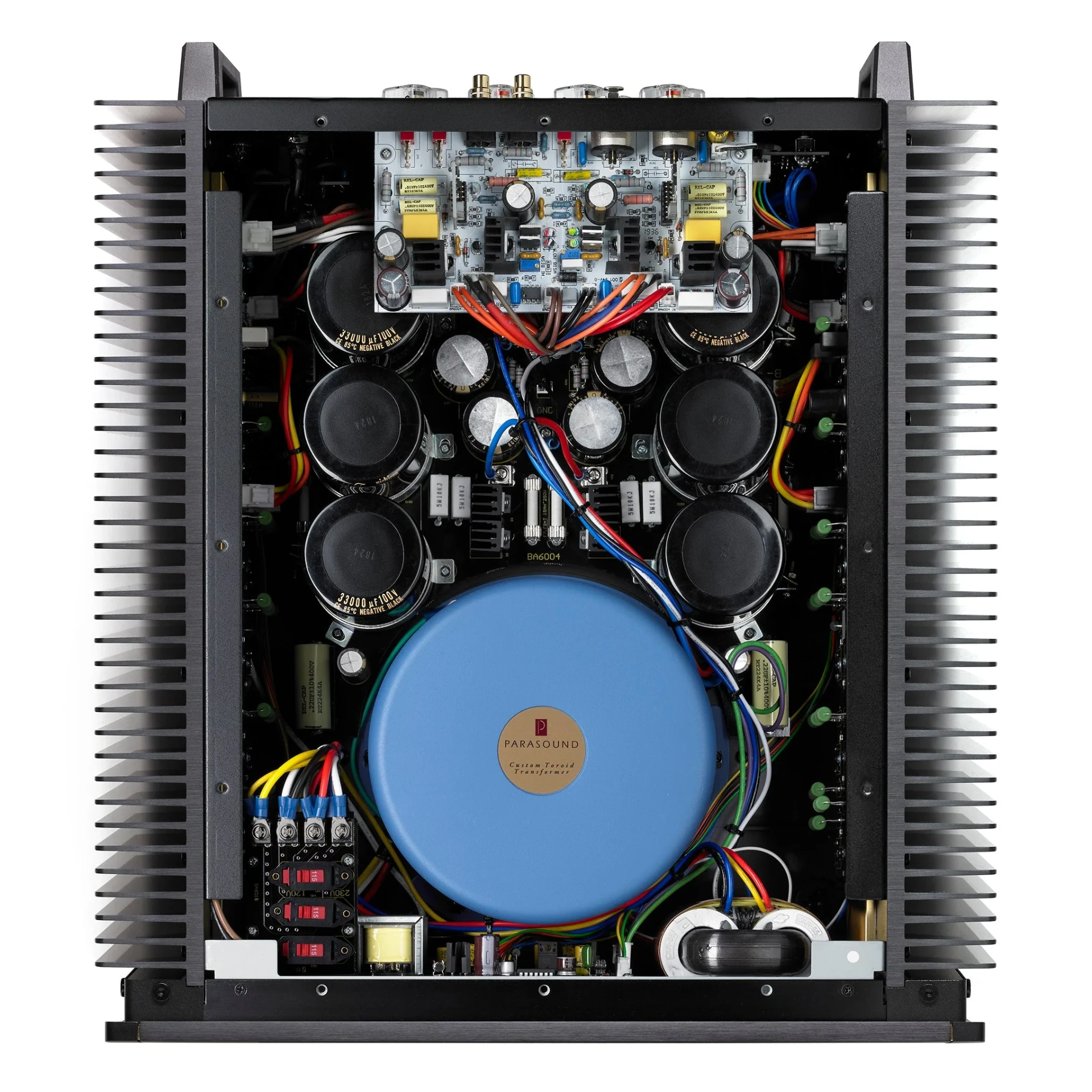

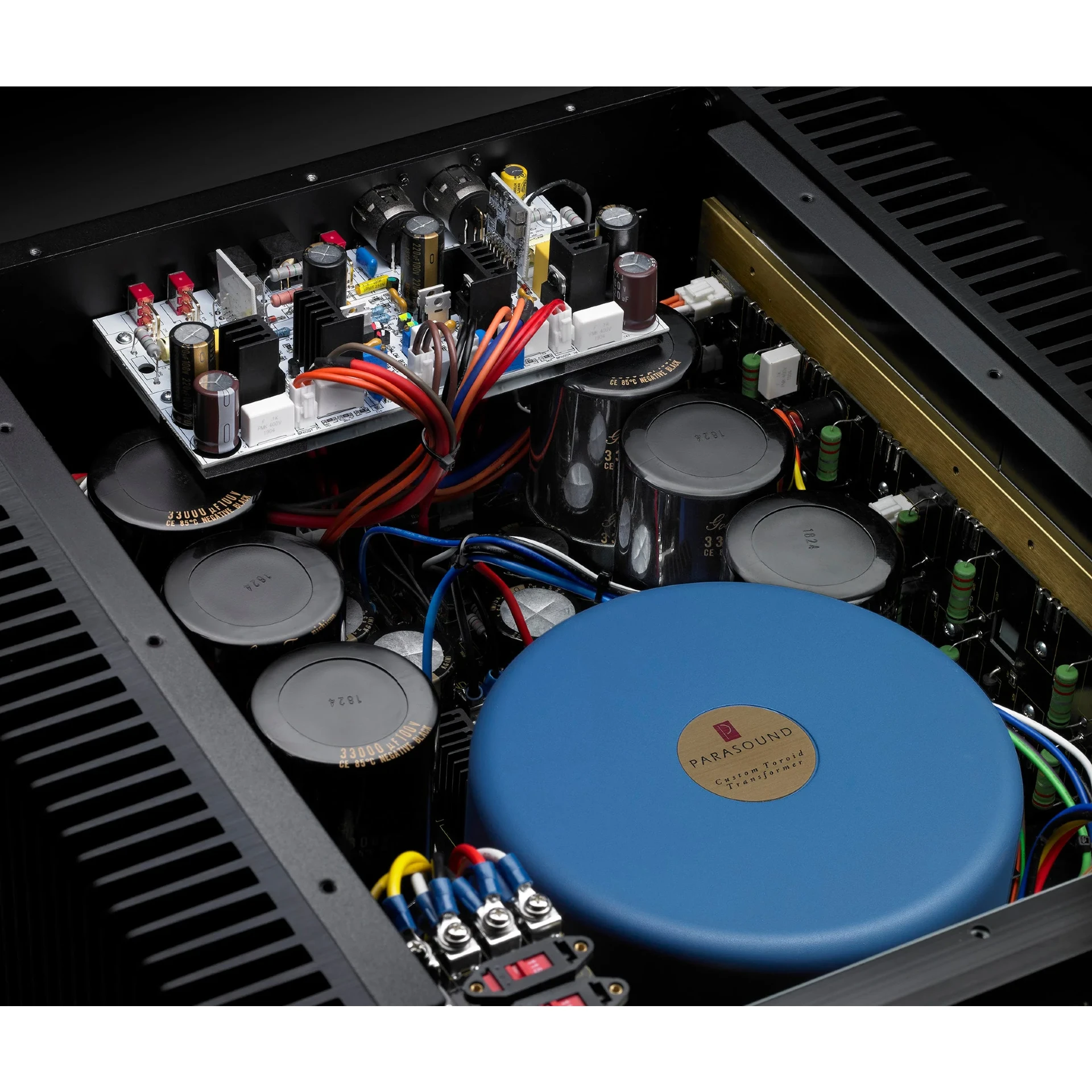

Building upon the success of the original JC1, the JC1+ is 30% heavier, with a 2.4kVA main power transformer that’s 26% larger. This increased capacity, alongside a 50% greater main power supply filter, provides effortless handling of demanding music. The JC1+ boasts 33% more Sanken high-voltage/high-current output transistors, producing a commanding, dynamic sound that immerses you in the music.
Sonic Refinement Beyond Measurement
While technical specifications show the JC1+’s power, its sonic refinement is something that must be experienced. This level of detail, clarity, and emotional resonance is instantly recognizable to the discerning listener.
Exclusive Technology for Superior Sound
The JC1+ incorporates Bybee Music Rails™ to eliminate power supply noise, resulting in sound that is remarkably authentic to the source. Its independent ± 112V input stage power supply keeps the input stage voltage stable, regardless of output demands, avoiding distortion common in most amplifiers. Additionally, a custom R-core transformer filters out noise from the AC power line for pristine sound quality.
Uncompromising Component Quality
Parasound selected only the finest materials for the JC1+. The input/driver circuit board is made from FR408, a material used in supercomputers and aerospace for its superior high-frequency performance. Premium REL capacitors, immune to vibrations, and 24k gold-on-gold internal connectors ensure unmatched signal purity and durability.
Additional Features for Superior Performance
- Fast-start bias circuit for optimal sound within minutes of power-on
- Bias level selector for cooler operation without performance sacrifice
- Two-position gain switch for compatibility with various preamps and speakers
- Staggered turn-on delays for powering multiple units without electrical overload
- Gold-plated Neutrik balanced XLR and Vampire RCA connectors for seamless connections
Features of the Parasound JC1+ Monoblock Power Amplifier
- Circuitry designed by legendary John Curl
- Ultra-high bias Class A/AB operation
- 25 watts of pure Class A power
- Stable with speaker impedance dips below 1Ω
- Bybee Music Rails™ – active high-frequency filters for the input stage
- New John Curl driver stage employs a cascode circuit for greater open-loop bandwidth & superior linearity
- Gain switch to select 29 dB or 23 dB gain for optimum compatibility with high-gain preamps or extremely efficient speakers
- R-core transformer for the input stage suppresses noise on the power line
- 6 massive 33,000 uF Nichicon Gold Tune filter capacitors for the output stage
- 22,400 uF input stage power supply filter capacitors, independent of the main power supply

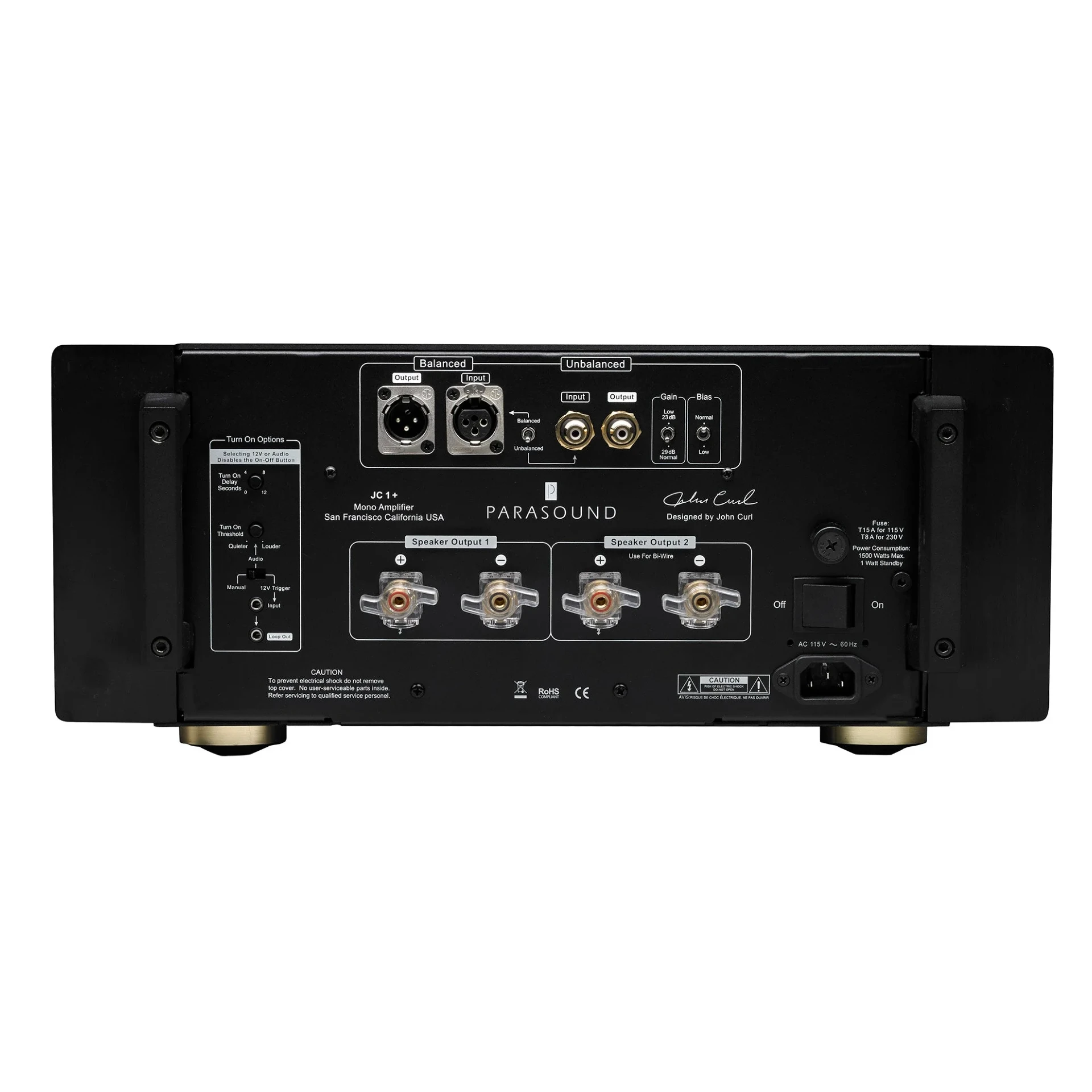

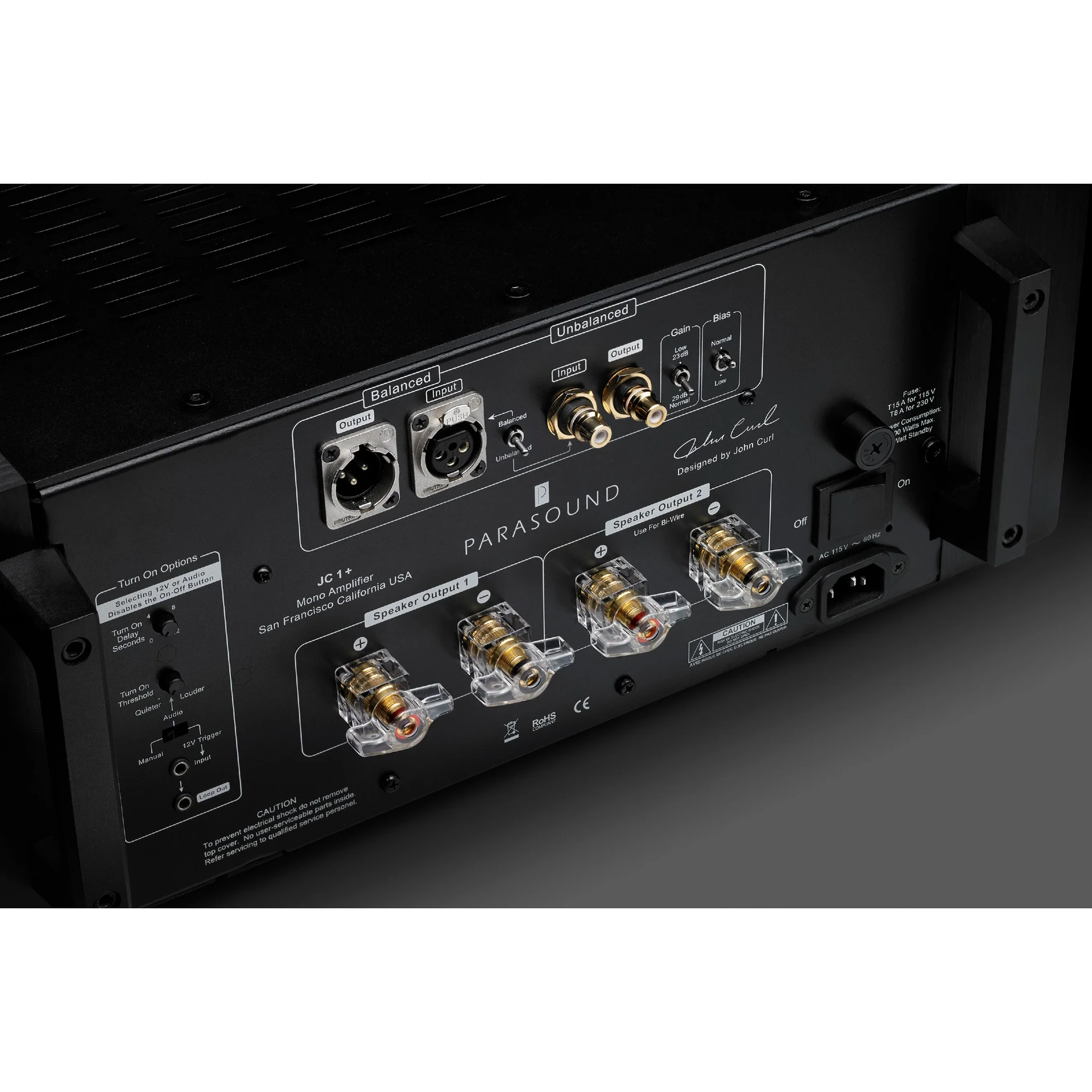

- Dual CHK Infinium, custom 5-way speaker binding posts for easy bi-wiring
- Neutrik locking XLR balanced input & loop output jacks
- Vampire 24k gold-plated RCA input & loop output jacks
- Direct-coupled signal path, no capacitors or inductors in the audio path
- JFET input stage, MOSFET driver stage
- 24 beta-matched 15 ampere, 230V, 60 MHz bipolar output transistors
- 1 kVA shielded toroid power transformer with premium H18 grade core
- Independent power supplies for the input stage, driver stage & output stage
- Full power is rated all the way down to 2Hz for unrestricted low-end bass
- Harris hyper-fast soft-recovery bridge diode rectifiers
- REL & Nichicon Muse capacitors
- DC servo & relay protection circuits
- AC turn-on inrush surge protection with relay bypass
- Automatic turn-on by 12 V trigger or audio sensing
- 4 rack space chassis with rear carry handles
Specifications of the Parasound JC1+ Monoblock Power Amplifier
Power Output: 450 x1 watts @ 8Ω, 850 x1 watts @ 4 Ω, 1300 x1 watts @ 2 Ω
Power measurements are with 120VAC: 0.15% THD, RMS continuous power, full audio band (20Hz – 20kHz)
Class A Power Output: 25 Watts, bias switch set to high, 10 Watt,s bias switch set to low
Current Capacity: 180 amps, peak
Slew Rate: > 130 volts per microsecond
Frequency Response: 2Hz-120 kHz +0/-2 dB, 20Hz-20kHz, +0/-0.25 dB
Total Harmonic Distortion (THD): < 0.15 % at full power, < 0.02 % at typical listening levels
IM Distortion: < 0.03 %
TIM: Unmeasurable
Damping Factor: > 1200 at 20 Hz
Input Impedance: Unbalanced: 50 kΩm Balanced: 100 kΩ, (50 kΩ per leg)
S/N Ratio, inputs shortened
- >122 dB, IHF A-weighted, bias set to Low
- >120 dB, IHF A-weighted, bias set to High
- >113 dB, Unweighted, bias set to Low
- >111 dB, Unweighted, bias set to High
Total Gain: 29 dB (Gain switch set to normal), 23 dB (Gain switch set to low)
Input Sensitivity for 28.28V Output into 8Ω (Gain switch set to normal)
- Unbalanced: 1 V
- Balanced: 1 V per leg
DC Trigger Requirements: +9 Vdc to +12 Vdc, 5 mA
Audio Trigger Requirement: 2.5 mV – 10 mV
XLR Pin Identification: 1 = Ground (Shield), 2 = Positive, 3 = Negative (Return)
Dimensions
- Width: 17-5⁄8″ (448 mm)
- Height without feet: 7-1⁄8″ (181 mm)
- Height with feet: 7-3/4″ (197 mm)
- Depth: 20″ (508 mm)
- Depth with cables: 21-1⁄2″ (546 mm)
Net Weight: 83 lb. (37.6 kg)
Shipping Weight: 107 lb. (45.4 kg)
Power Requirements
- Standby: <1 Watt
- Idle (bias set to low): 145 Watts
- Idle (bias set too high): 275 Watts
- Typical Listening levels: 400 Watts
- Maximum: 1500 Watts
