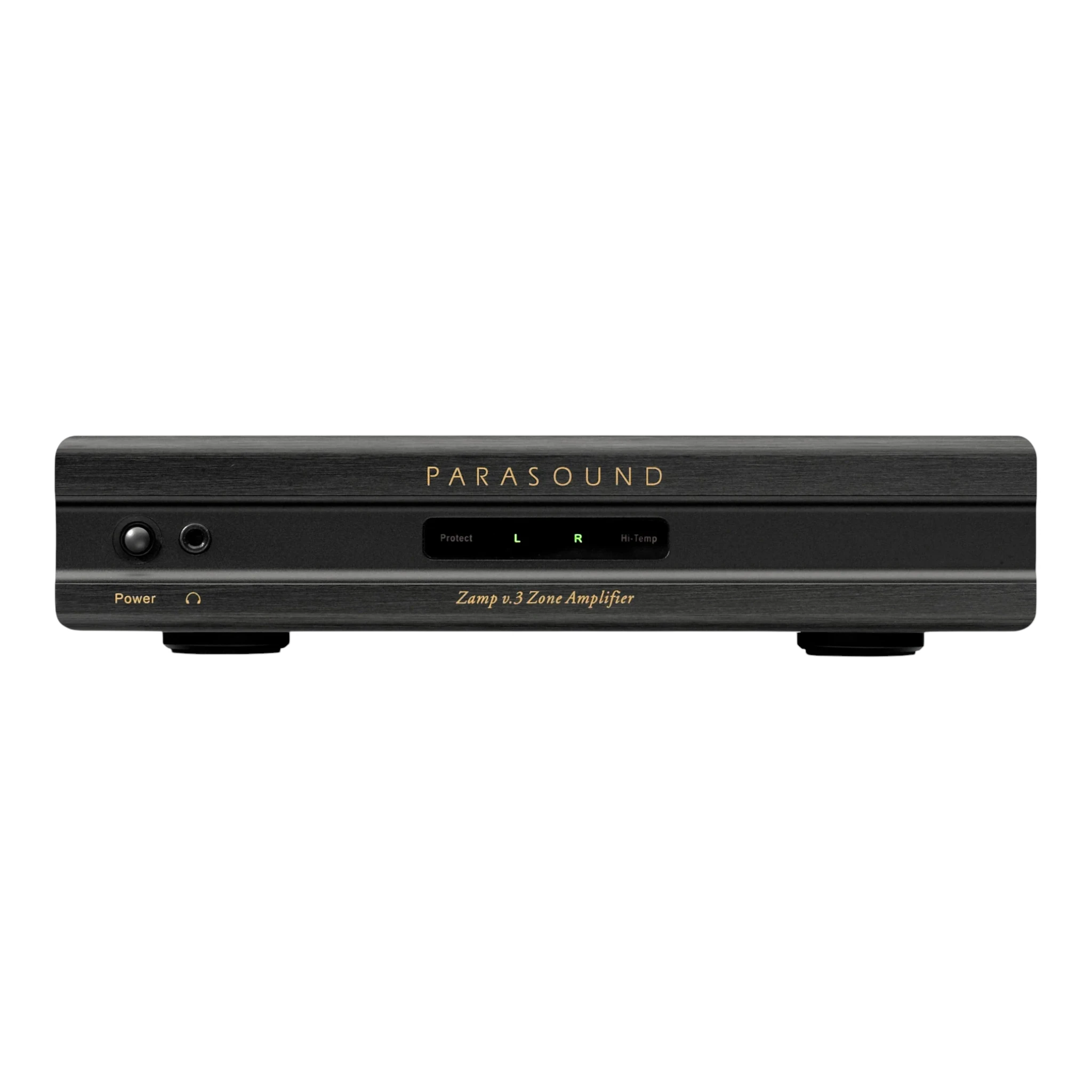

Parasound ZAmp v3 Stereo Power Amplifier
The Parasound ZAmp v3 Stereo Power Amplifier is a compact and versatile stereo power amplifier, offering high-quality amplification in a space-saving design. With 45 watts per channel at 8 ohms, the ZAmp v3 is perfect for small audio setups, custom installations, and multi-room systems. Its reliable performance and efficient operation make it a go-to choice for both home and commercial environments.
Main features of the Parasound ZAmp v3 Stereo Power Amplifier
- Power Output: 45 watts per channel at 8 ohms
- Design: Compact form factor ideal for tight spaces
- Features: Bridgeable for 90 watts mono, 12V trigger input
- Applications: Ideal for custom installations, multi-room audio, and small stereo setups
- 45 watts per channel into 8 Ω
- 60 watts per channel into 4 Ω
- 90 watts bridged into 8 Ω mono
- Fully discrete circuitry with Toroid power transformer
- Low heat design
- Headphone jack
- Indicators for AC present and channel operating status
- Automatic on/off by 9 – 12 V trigger

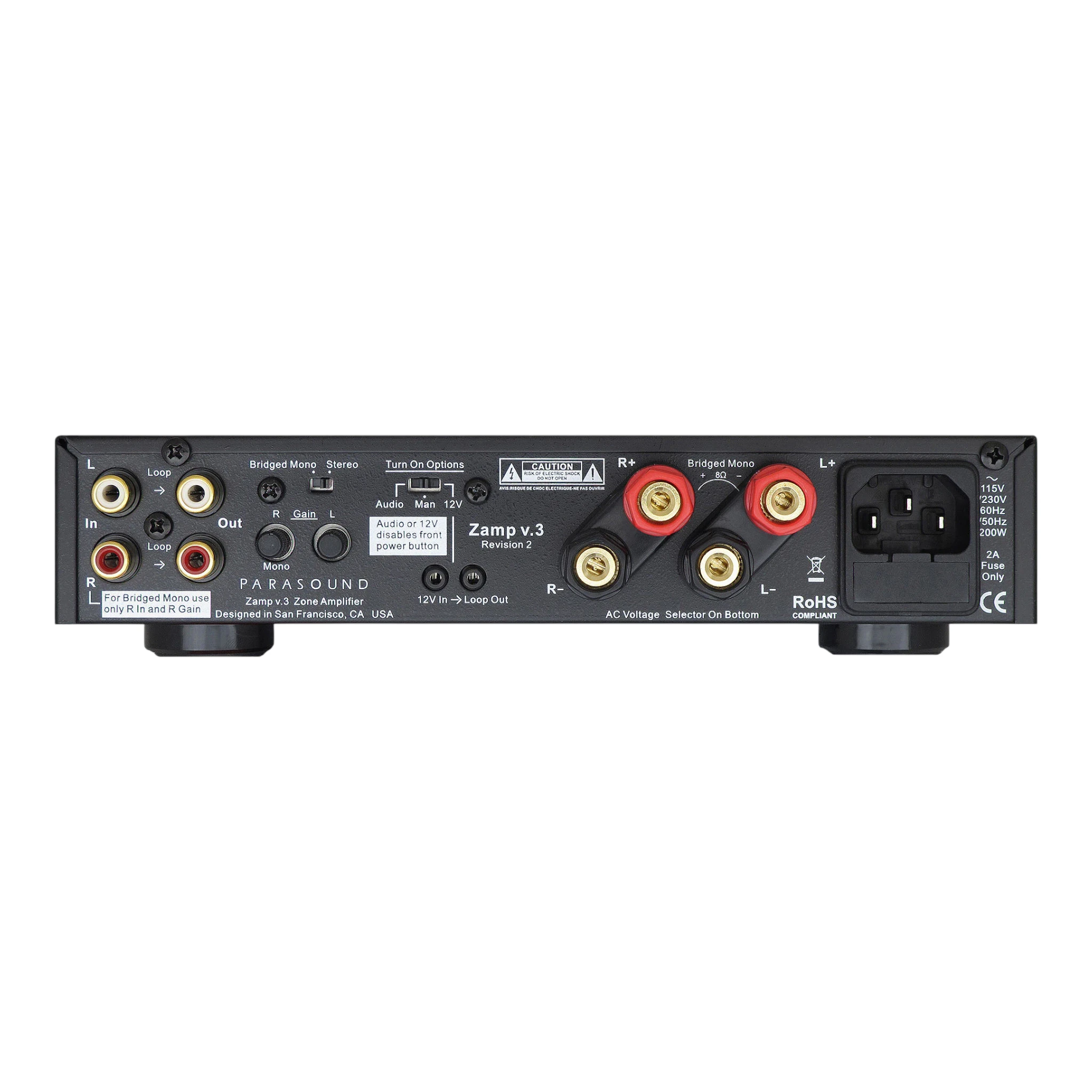

- Gold-plated RCA input jacks and looping line output jacks
- 5-way speaker terminals
- Compact chassis; 1 rack space high
The ZAmp v3 provides excellent sound quality in a compact design, making it a fantastic solution for versatile audio applications.
Great starter amp that can play louder than you can listen to!
Specifications of the Parasound ZAmp v3 Stereo Power Amplifier
| Product Specifications | |
|---|---|
| Continuous Power Output | |
| 8 Ω, both channels driven | 45 watts RMS x 2 (20 Hz – 20 kHz) |
| 4 Ω, both channels driven | 60 watts RMS x 2 (20 Hz – 20 kHz) |
| 8 Ω, minimum impedance | 90 watts RMS x 1 (20 Hz – 20 kHz) |
| Current Capacity | 12 amperes peak per channel |
| Frequency Response | 5 Hz – 100 kHz, +0/-3 dB |
| Total Harmonic Distortion | < 0.07% at full power < 0.02% at typical levels |
| IM Distortion | < 0.05% |
| Dynamic Headroom | 1.5 dB |
| Inter-channel Crosstalk | 80 dB at 1 kHz 60 dB at 20 kHz |
| Input Impedance | 33 kΩ |
| Input Sensitivity | 600 mV; 1.5 V for full output |
| S/N Ratio | 116 dB, input shorted, IHF A weighted |
| Dimensions | 8-1/2″ W x 1-3/4″ H x 10″ D 2″ H with feet |
| Net Weight | 7 lbs. |
