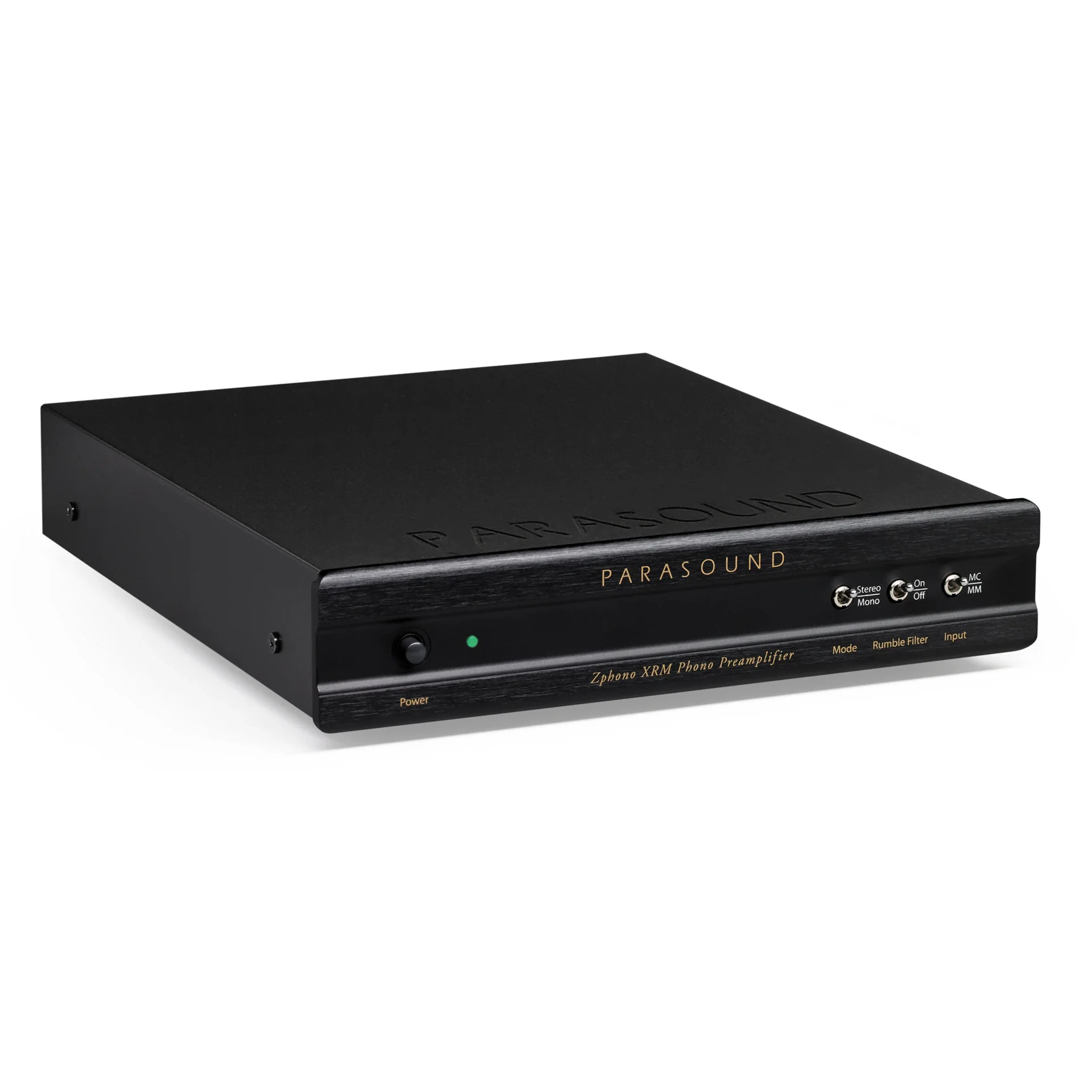

Parasound ZPhonoXRM Phono Preamplifier
Description of the Parasound ZPhonoXRM Phono Preamplifier
Exceptional Vinyl Performance, A Price No One Beats
The Parasound ZPhonoXRM Phono Preamplifier redefines what a budget phono stage can do—and it outperforms many models costing double or more. With front-panel controls, dual MM/MC inputs, and XLR/RCA outputs, this compact half-rack powerhouse delivers clarity, warmth, and flexibility that serious vinyl fans crave.
Featuring precision RIAA EQ, variable MC loading from 50–1050 Ω, low-noise circuitry, and a clean linear power supply, the Zphono XRM gives your records a transparent, lifelike sound—without costing a fortune.
Vinyl Lovers Say
- “Quiet, detailed and warm… sounds more like a designer unit than a sub-$600 stage.”
- “Excellent channel separation and clarity—it lets the music breathe.”
- “Features you don’t usually see at this price: rumble filter, mono switch, XLR out.”
Where It Fits in Your Setup
Connect your turntable(s) via MM or MC input, select on the front panel, then drive your amp or integrated setup through balanced XLR or RCA outputs. The half-rack chassis makes it easy to stack with other gear or tuck neatly into your rack.
Use the rumble filter to remove low-frequency noise. And with headphone-worthy transparency, it works beautifully in both high-end vinyl rigs and home theatre front-end setups.
What Makes It Stand Out
- Dual MM/MC inputs with front-panel selection (no rear panel hassle)
- Variable MC loading and switchable MM gain (40/50 dB)
- Accurate RIAA response within 0.2 dB across 20–20 kHz
- Ultra-low distortion (<0.02% THD) and high SNR—clean, detailed playback
- XLR + RCA outputs and front-panel mono/rumble switches
- Linear internal power supply—no noisy wall wart
- Compact 1U half-rack chassis (8.5″ wide) with premium build and 5-year warranty
What You’ll Hear
- Vinyl’s quiet moments are truly silent—no background hiss
- Depth and detail soar with improved imaging and separation
- Low-end is tight, accurate, and full-bodied—no muddiness
Final Word
The Parasound ZPhonoXRM Phono Preamplifier delivers professional-grade vinyl sound at a fraction of the cost. Loaded with features and performance that rival phono stages twice its price, it’s the unbeatable choice for anyone serious about music, without spending more than they have to.
Features of the Parasound ZPhonoXRM Phono Preamplifier
- Dual inputs for two turntables (1 MM & 1 MC)
- Front panel input select switch
- Front panel mono/stereo mode switch
- Front panel rumble filter switch

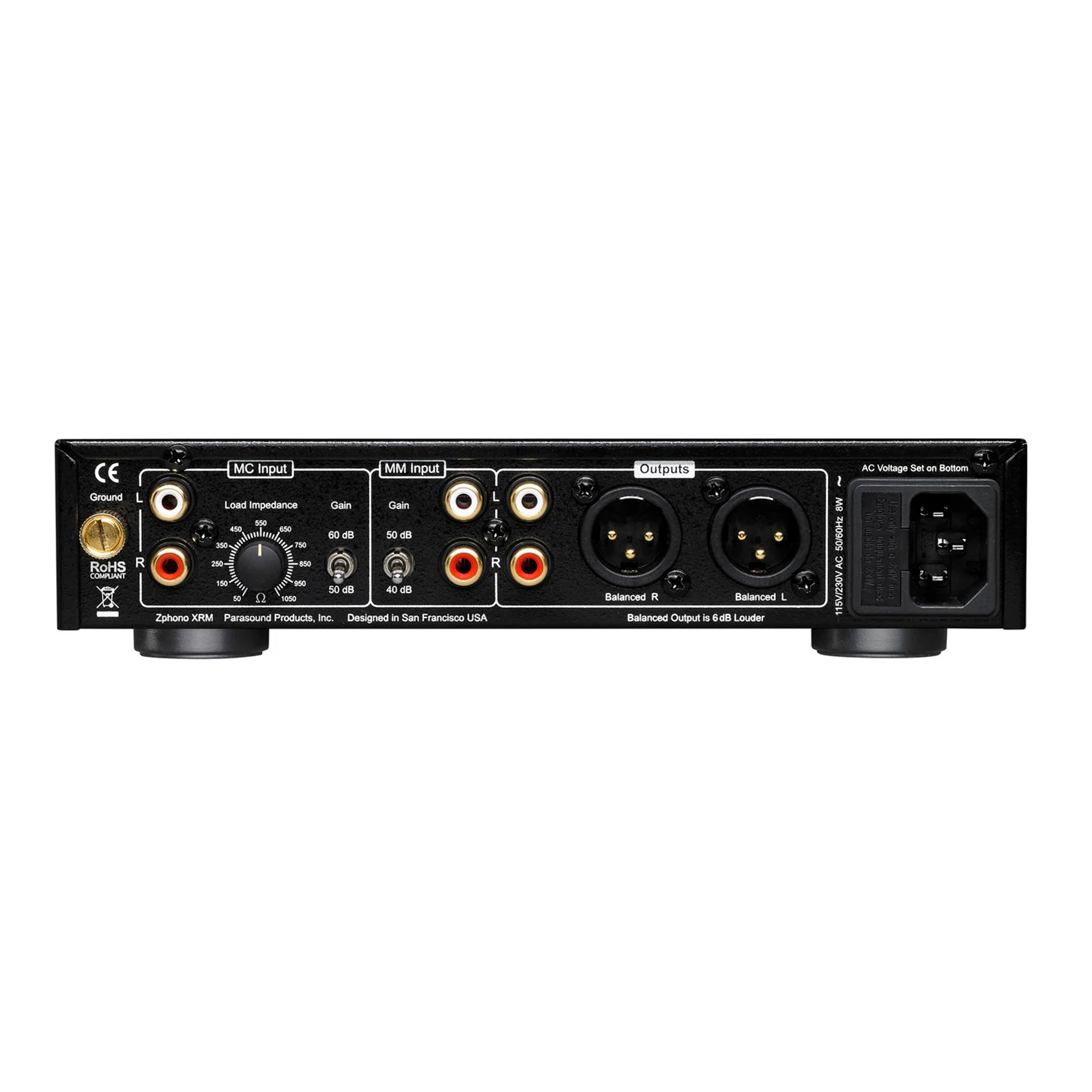

- Balanced and unbalanced outputs
- Variable MC impedance adjustment of 50-1050 ohms
- MM Gain options of 40 dB or 50 dB unbalanced (46 dB/56 dB balanced)
- MC Gain options of 50 dB or 60 dB unbalanced (56 dB/66 dB balanced)
- RIAA is accurate to within 0.2 dB
- Ultra-low distortion (<0.02% THD)
- Ultra high-speed, low-noise op-amps
- Audiophile-grade resistors and capacitors
- Gold-plated RCA input and output jacks
- Unique half-rack width chassis; 1 rack space high
Specifications of the Parasound ZPhonoXRM Phono Preamplifier
Frequency Response
20-20 kHz, +/- 0.2 dB
Total Harmonic Distortion
0.02% at 1 kHz
Signal to Noise Ratio, MM 40 dB Setting
> 94 dB, input shorted, IHF A-weighted
> 90 dB, input shorted, unweighted
Signal to Noise Ratio, MM 50 dB Setting
> 94 dB, input shorted, IHF A-weighted
> 90 dB, input shorted, unweighted
Signal to Noise Ratio, MC 50 dB Setting
> 92 dB, input shorted, IHF A-weighted
> 88 dB, input shorted, unweighted
Signal to Noise Ratio, MC 60 dB Setting
> 82 dB, input shorted, IHF A-weighted
> 80 dB, input shorted, unweighted
Inter-channel Crosstalk
> 80 dB at 1 kHz
Input Impedance
MM: 47k Ω
MC: 50-1050 Ω
Input Capacitance
150 pF
Output Impedance
Unbalanced: 150 Ω
Balanced: 150 Ω per leg
Input Sensitivity at 1 kHz, 4 mV Input
40 dB: 5 mV for 500 mV output
50 dB: 5 mV for 1.5 Volts output
60 dB: 5 mV for 3 Volts output
Input Sensitivity at 1 kHz, 1V Output
40 dB: 10 mV for 1.0 Volt output
50 dB: 3.5 mV for 1.0 Volt output
60 dB: 1.8 mV for 1.0 Volt output
Total Gain
40 dB / 50 dB / 60 dB (unbalanced output)
46 dB / 56 dB / 66 dB (balanced output)
Rumble Filter
40 Hz high pass, 18 dB /oct.
AC Power Requirement
Standby: 0 watts
Power On: 7 watts
115 VAC or 230 VAC 50 – 60 Hz
(Selected on bottom)
Dimensions
Width: 8.5″ (220 mm)
Depth: 10″ (254 mm)
Depth: 12″ (305 mm) – cables connected
Height, with feet: 2″ (51 mm)
Height, without feet: 1.75″ (45 mm), 1U
Weight
Net: 3.9 lbs. (1.8kg)
Shipping: 6.8 lbs. (3.1 kg)
