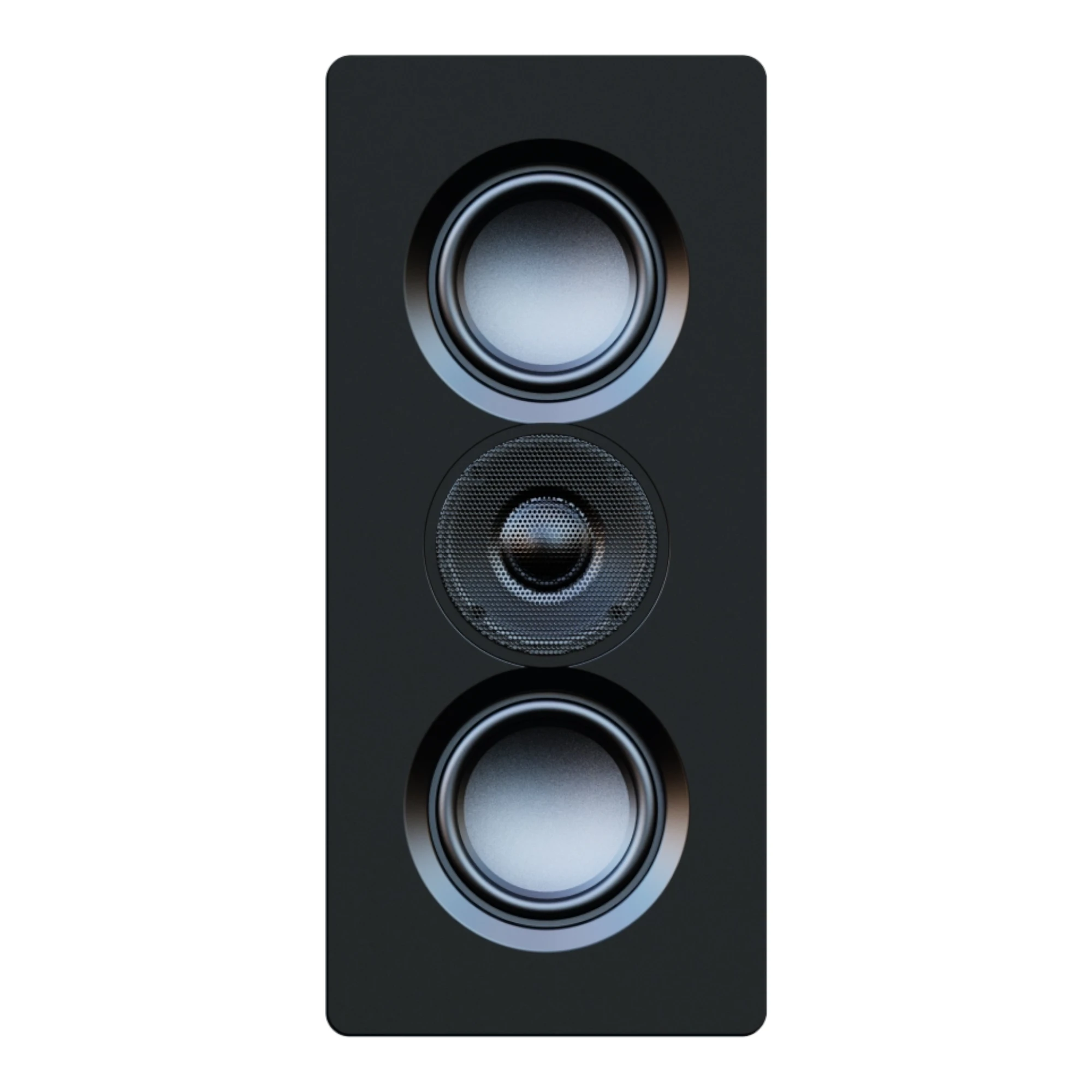

Elac OW-V41S On-Wall Speaker
The compact proportions of the Elac OW-V41S On-Wall Speaker make on-wall installation a breeze. Bring huge dimensionality to your system with a speaker that makes itself heard but barely seen.
Flexible
Mounting
A switch located in the rear of the cabinet modifies the tuning of the tweeter to facilitate Vertical or Horizontal mounting.

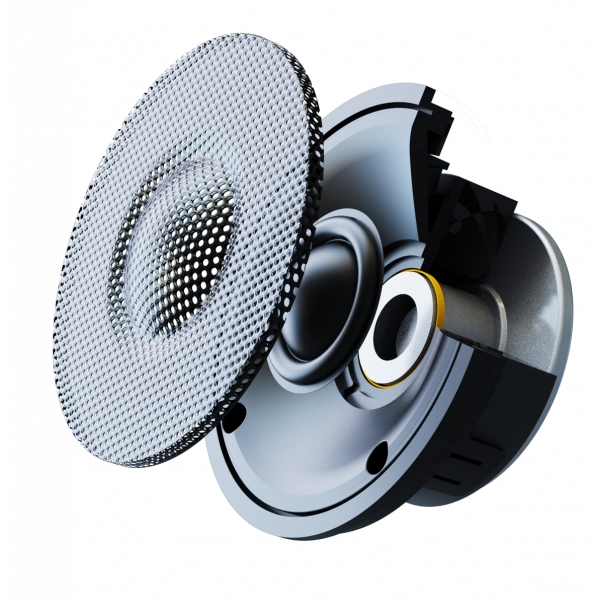

Silk Dome TweeterWith Deep Spheroid Waveguide The waveguide surrounding the new ELAC high-frequency driver features a custom, deep spheroid profile to improve directivity control and efficiency. |
 |
 |

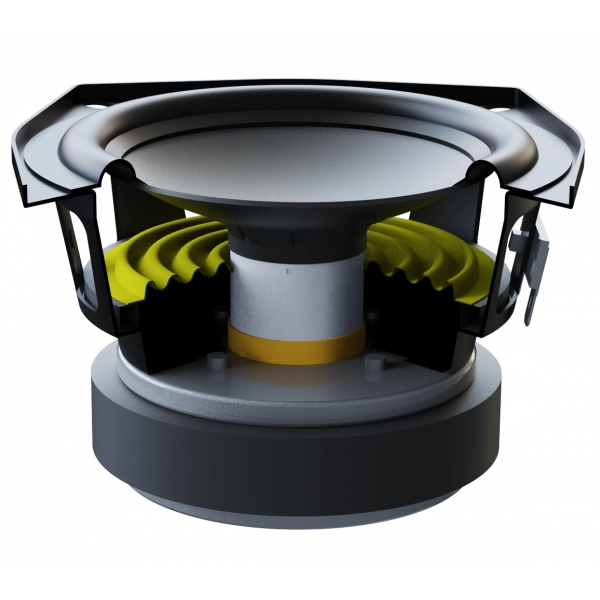

Custom-designed wooferAluminum cones Aluminium cones offer a superior strength-to-weight ratio and improved damping characteristics over conventional paper or plastic drivers. This added strength means arriving at designs that achieve a broader bandwidth with a smoother response. |
Specifications of the Elac OW-V41S On-Wall Speaker
| Enclosure Type | 2-way passive radiator, sealed |
|---|---|
| Tweeter | 1-inch soft dome |
| Woofer | 4-inch Aluminum cone |
| Passive Woofer | 4-inch Aluminum cone |
| Crossover Frequency | 2,800 Hz |
| Frequency Response | 75 to 35,000 Hz |
| Sensitivity | 86 db at 2.83 v/1m |
| Max Power Input | 80 watts |
| Nominal impedance | 6 Ohm |
| Binding Posts | 5-way metal |
| Cabinet | CARB2 rated MDF |
| Cabinet Finish | Painted Satin Black or White Front Baffle with vinyl wrapped cabinet |
| Grille | Magnetic Grey or Black Fabric Grill |
| Accessories Included | Mounting template, manual |
| Orientation Crossover Switch | No |
| Dimensions (WxHxD) | 7.81 in / 198 mm x 15.69 in / 399 mm x 3.38 mm / 86 mm |
| Weight | 9.92 Ibs / 4.50 kg |
