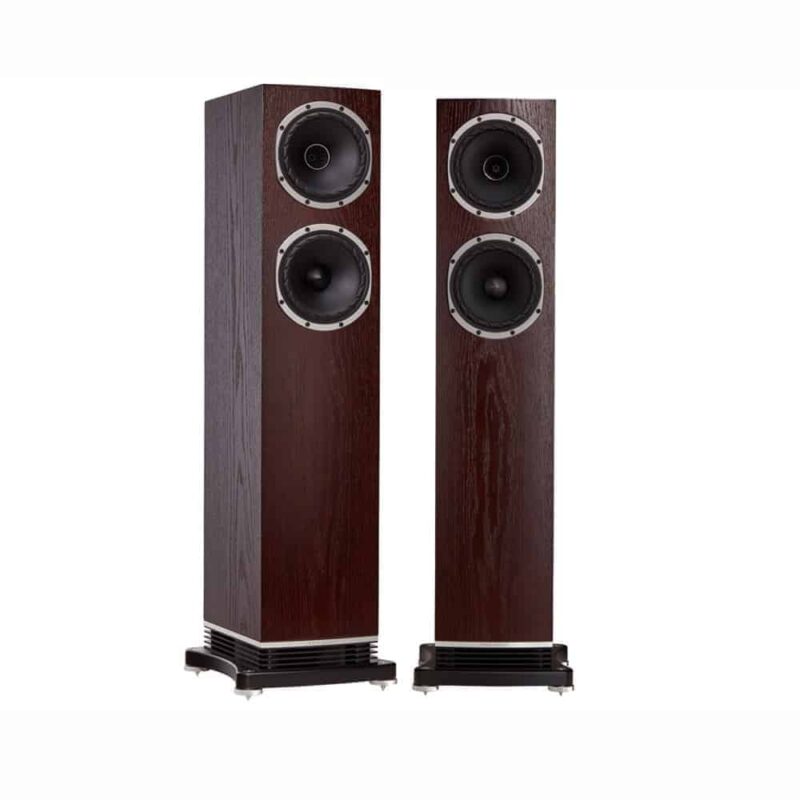

Fyne Audio F501

The award winning F501 is the smaller of the two floorstanding loudspeakers in the F500 series but capable of delivering low bass and effortless dynamics from a compact, small footprint cabinet. Bringing additional scale and power to the F500 series’ signature clarity and articulation, the 150mm (6″) proprietary IsoFlareTM driver is accompanied by a matched 150mm (6″) bass driver. The IsoFlareTM driver delivers isotropic energy radiation with point source constant directivity providing outstanding stereo imaging, even off axis. Ideal for small to medium-sized rooms, the F501 is supplied with a dedicated plinth incorporating our BassTraxTM Tractrix diffuser system, which integrates bass energy uniformly into the room

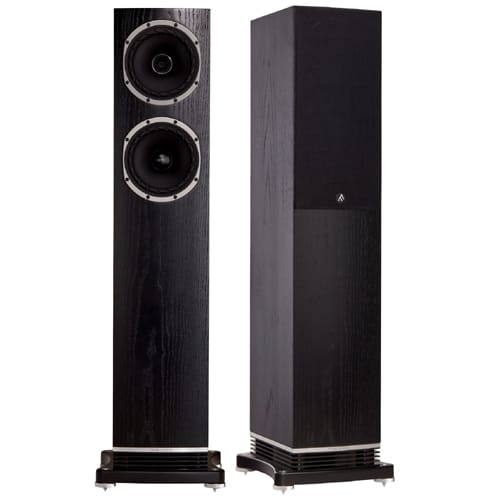

The luxuriously finished, contemporary styled cabinet is available in a choice of dark oak or black oak real wood veneer and piano gloss black or white. Enhancing its aesthetic appeal, it has a gently curved front and rear baffle which additionally benefits the acoustic performance by reducing colouration effects.

Specifications of the Fyne Audio F501

System Type 2 ½ way, downwards firing port, with BassTraxTMTractrix diffuser. Twin cavity coupled reflex

Recommended amplifier power (Watt RMS) 35- 150

Continuous power handling (Watt RMS) 75

Sensitivity (2.83 Volt @ 1m) 90dB

Nominal impedance 8 Ohm

Frequency response (-6dB typical in room) 36Hz- 34kHz

Drive unit complement 1 x 150mm IsoFlareTM, multi-fibre bass / mid with 25mm titanium dome compression tweeter 1 x 150mm multi-fibre bass

Crossover frequency 250Hz & 1.7kHz

Crossover type 2nd order low pass, 1st order high pass

Dimensions – HxWxD 984 x 270 x 318mm (38.7 x 10.6 x 12.5”)

Weight – Each 18.9kg (41.7lb)
