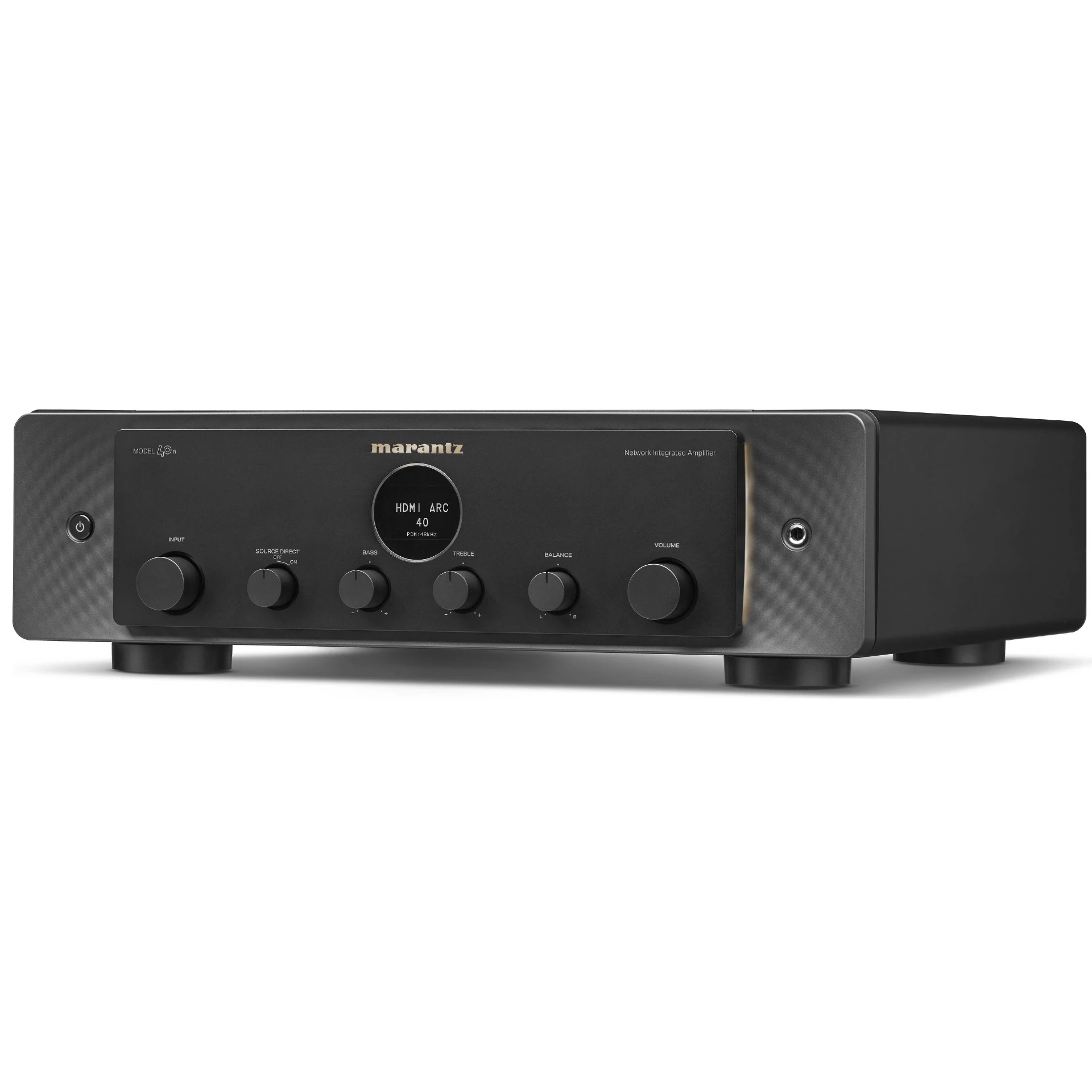

Marantz MODEL 40n
The Marantz MODEL 40n is an Integrated Stereo Amplifier With Streaming Built-in
With the 40n, Marantz has reimagined the integrated amplifier for the digital age while preserving a luxurious analogue feel and sound.
Digital heart and analogue soul. The Marantz MODEL 40n unlocks the high-resolution sound of your favourite digital music streams (Spotify, Apple Music, Pandora, Tidal, and more) and your own music file libraries over AirPlay, Bluetooth, and HEOS®. Enjoy audio from your TV and its connected devices using built-in HDMI ARC (Audio Return Channel) connectivity. Enjoy rich, warm, Marantz sound from any source.
• Just Add Speakers Everything else for The Most Musical Sound is built-in
• Built for Streaming Use with Spotify, Apple Music, Tidal, AirPlay, Bluetooth and more—powered by HEOS®
• Sound Master Tuned Expertly crafted and tuned for The Most Musical Sound
• Musical Power 70 watts per channel to drive your favourite speakers
• Voice Control Works with Amazon Alexa, Google Assistant, or Apple Siri
• Luxurious Industrial Design Adds class to any environment
• HDAM Circuit Unique technology preserves every detail in your favourite sounds
• Marantz Musical Phono EQ Built-in MM phono stage makes adding a turntable easy
• Whole-Home Hi-Fi Connect with HEOS Built-in speakers for a whole-home system that allows you to sync or separate streams in each room
The Most Musical Sound From Any Source
A full complement of analogue and digital inputs plus built-in streaming and HDMI make listening enjoyable and easy regardless of source.
Stream Millions Of Hi-Resolution Songs
Stream from Spotify, Amazon Music HD, Tidal (where available), and more or enjoy your own music file libraries. Works with Alexa, Google, and Siri.
Create a multiroom musical experience with the MODEL 40n as your home’s music hub.
HDMI Input Adds AV Connectivity
HDMI ARC (Audio Return Channel) adds uncommon flexibility to this stereo amplifier by enabling TV sound through your stereo.
Digital Streaming Built-In
Effortlessly connect via Bluetooth, Apple AirPlay 2, or directly from the HEOS app to play all your favorites from hundreds of streaming services.
High-Resolution Digital Streaming Built-In
Marantz MODEL 40n is for those whose music collection is infinite and online. Connect to your network with Wi-Fi or ethernet. With HEOS® Built-in, you won’t need extra equipment to stream your favorite tunes. Marantz MODEL 40n supports Spotify, AirPlay 2, Bluetooth, Tidal, TuneIn, and more services—plus, playback of your own collection via USB-A input or on compatible home servers.
The Marantz Musical Phono EQ
The joy of vinyl playback is both audible and tactile yet requires highly specialized electronics for high performance. The Marantz Musical Phono EQ is built in so you can connect a turntable with MM cartridge directly to Marantz MODEL 40n. You’ll enjoy your favourite records and discover new ones, all without the burden of additional electronics.
Precise Tone Control
Your sound preferences at your fingertips. Adjust bass and treble to suit your sound or bypass with source direct mode for the purest sound possible.
Luxurious Look and Feel
MODEL 40n follows a long line of historic Marantz pieces notable for their exquisite design. Every aspect is considered—from premium materials, symmetry, classic porthole display, and even smooth operation of the volume control. Your stereo doesn’t need to look like lab equipment. Marantz MODEL 40n begs to be heard, seen, and touched.
Hyper Dynamic Amplifier Modules
To preserve the detail, nuance, and essence of the music you love, Marantz developed HDAM (Hyper Dynamic Amplifier Modules) which are superior in their speed and response to off-the-shelf ICs found in other products. MODEL 40n leverages this unique Marantz innovation to ensure whatever you’re listening to is always the most musical.
Deep bass is a visceral and exciting sensation. When partnered with equally excellent speakers, MODEL 40n produces impressive bass. If you want more, add a subwoofer using the dedicated subwoofer output and dial in the low-frequency crossover settings and level for precise integration with your main loudspeakers.
Product highlights of the Marantz MODEL 40n:
- 70 watts x 2 channels into 8 ohms (20-20,000 Hz) at 0.02% THD
- 100 watts x 2 channels into 4 ohms
- 4-ohm capability allows use with a wide range of speakers

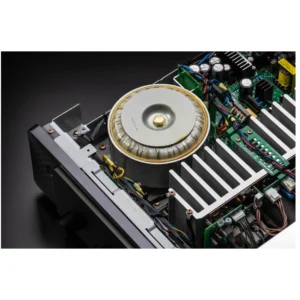

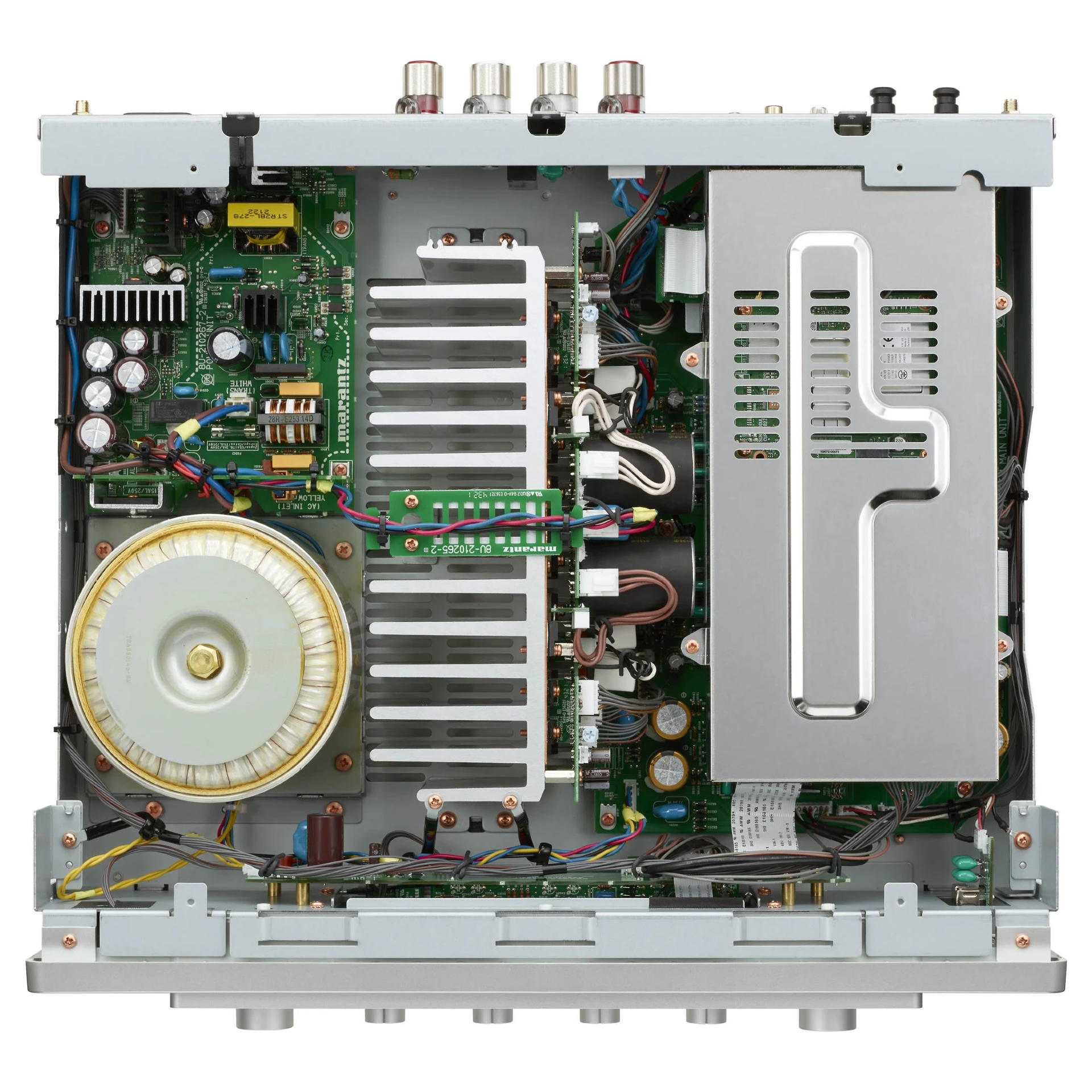

- high-current double-shielded toroidal power transformer for clean playback and smooth handling of demanding speaker loads
- Hyper Dynamic Amplifier Module (HDAM® SA3) circuitry for pure, detailed sound
- ESS ES9016 DAC (digital-to-analogue converter) processes PCM signals up to 24-bit/192kHz
- digital filters let you tailor playback to suit your preferences
- front-panel tone control knobs (treble, bass)
- Source Direct mode bypasses tone control circuits for cleaner sound
- voice control via optional Amazon Alexa and Google Assistant devices
- frequency response 5-100,000 Hz (±3dB)
- signal-to-noise ratio: 87 dB (Phono), 106 dB (CD)

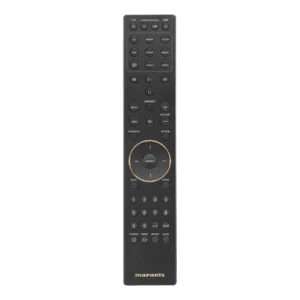

- remote control included
- detachable power cord
Network streaming features:
- built-in dual-band Wi-Fi and Bluetooth 4.2
- HEOS Built-in technology:
- internet radio via TuneIn, iHeart Radio, and more
- cloud-based access to popular streaming services, including Spotify Connect, Apple Music, TIDAL, and more
- wirelessly connects compatible HEOS components for whole-home audio
- Apple AirPlay® 2 allows wireless streaming via iPhone®, iPad®, iPod® or computer running iTunes®

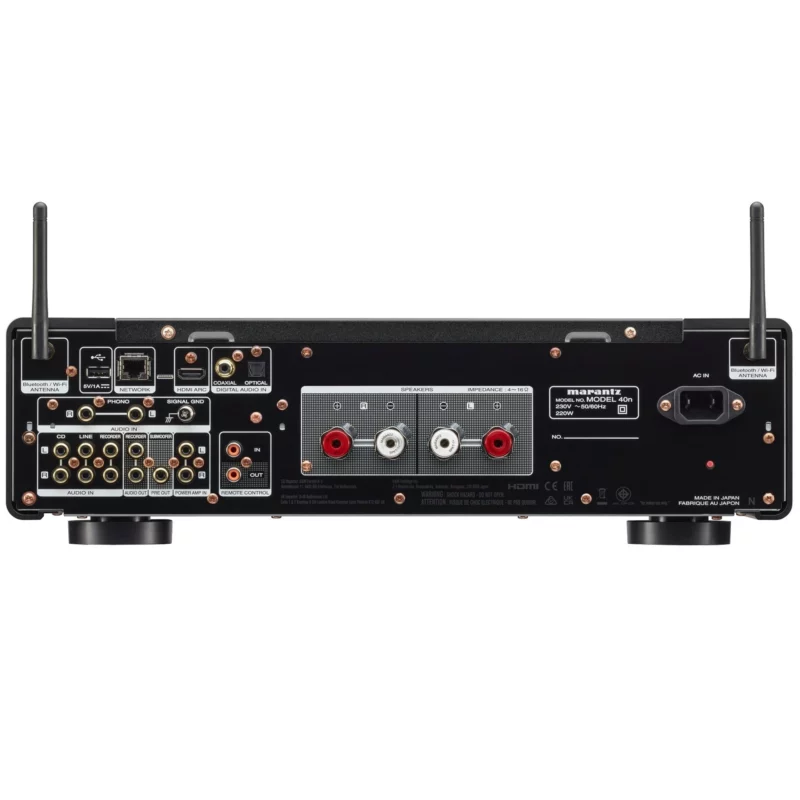

- 3 standard line-level RCA audio inputs
- separate phono input for turntables with moving magnet cartridges
- HDMI ARC input (version 1.4) for connecting to a compatible TV
- one coaxial digital and one optical digital input
- USB Type-A port for playback from a compatible thumb drive
- Ethernet port for connecting to your home network
- stereo “power amp” inputs for use as a power amp with a home theatre receiver (home theatre bypass mode)
- mono preamp output for connecting a subwoofer
- stereo RCA audio outputs for recording
- front-panel full-size 1/4″ headphone jack
- binding posts for a single pair of speakers
- remote control input/output
Marantz Model 40n Brochure Sheet
|Marantz Model 40n Specifications|
|Sample Rate Digital In||192 kHz / 24-bit|
|DAC Chip In||ES9016K2M|
|HDAM Version||SA3, SA2|
|Power Output (8 / 4 Ohm RMS)||70 W / 100 W|
|Frequency Response||5 Hz-100 kHz|
|Total Harmonic Distortion||0.02%|
|Input Sensitivity: MM||1.6 mV / 47 kOhm|
|Signal to Noise Ratio: MM/MC||87dB / –|
|Input Sensitivity: High level||220mV / 16kOhm|
|Signal to Noise Ratio: High level||113dB|
|Input Sensitivity: Power Amp Direct IN||1.5V / 15kOhm|
|Maximum Dimensions (W x D x H) in mm||443 x 432 x 130|
|Weight in Kg||16.7|
Nilima Parmar –
The Marantz MODEL 40n is an Integrated Stereo Amplifier With Streaming Built-in With the 40n, Marantz has re imagined the integrated amplifier for the digital age while preserving a luxurious analogue feel and sound. This music system is for those who want to enjoy the warmth of their records and the convenience of digital music. It has a full-bodied sound that can fill a room with crisp highs and deep lows. Tune into your favorite radio station and the Bluetooth connectivity allows you to stream your favorite music from your smartphone.
