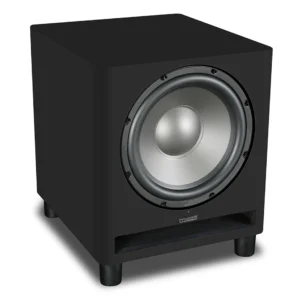

Mission QX-12SUB MKII Subwoofer
Mission is proud to introduce the Mission QX-12SUB MKII Subwoofer to complement the latest QX MKII Series of loudspeakers.
Perfect for a QX MKII Series home-theatre system or musical bass extension in 2-channel applications, the Mission QX-12SUB MKII Subwoofer utilises a 12-inch (300mm) long-throw bass driver with astounding bass impact. Based on the same award-winning system found in the best-selling QX-12SUB, the Mission QX-12SUB MKII Subwoofer also sports fantastic new Lux Black and Lux White ﬁnish options, as well as classic walnut pearl, to perfectly match the aesthetics of the stunning QX MKII Series loudspeakers.
High Power Ampliﬁer
The built-in ampliﬁer is optimized for high impact at low frequencies. The fast response and high-power performance is perfect for movies or music.
No-Presses Paper Cones
A specially engineered 12” paper cone with increased self-damping properties offers an increased structural rigidity of the cone itself for a fuller performance and massive bass impact.
Low Pass Filter Slope
Continuously adjustable from 35Hz to 120Hz (@33dB) for seamless acoustic integration with your speaker’s performance.
High Sensitivity & Versatility

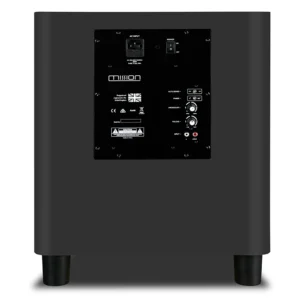

Low level inputs, output connections and a dedicated LFE input are provided. Additionally, the auto power sensor is sensitive enough to detect incoming signals of extremely low level for automatic activation of the subwoofer when required.
Mission QX-12SUB MKII Subwoofer Specifications
|Drive Units||1 x (12″) 300 mm cone long-throw|
|Frequency Response||35- 120 Hz (+-±3dB)|
|Ampliﬁer Power Output||300 W|
|Peak Power Output||450 W|
|Line Input Sensitivity||200mV for maximum output|
|Crossover Range||30 – 150 Hz|
|Inputs||Stereo line in (2 x RCA phono)|
|Mono (LFE) line in (RCA phono)|
|Input Impedance||Line input 10 k|
|LFE 5 kOhms|
|Signal-to-noise Ratio (s/n)||≥ 85 dB|
|Avg. Max Output @1m||118 dB|
|Features||Phase inversion, auto on-off|
|Dimensions||Height: (420+58) mm (with feet)|
|Width: 400 mm|
|Depth: (450+15) mm|
|Net Weight||23 kg|
