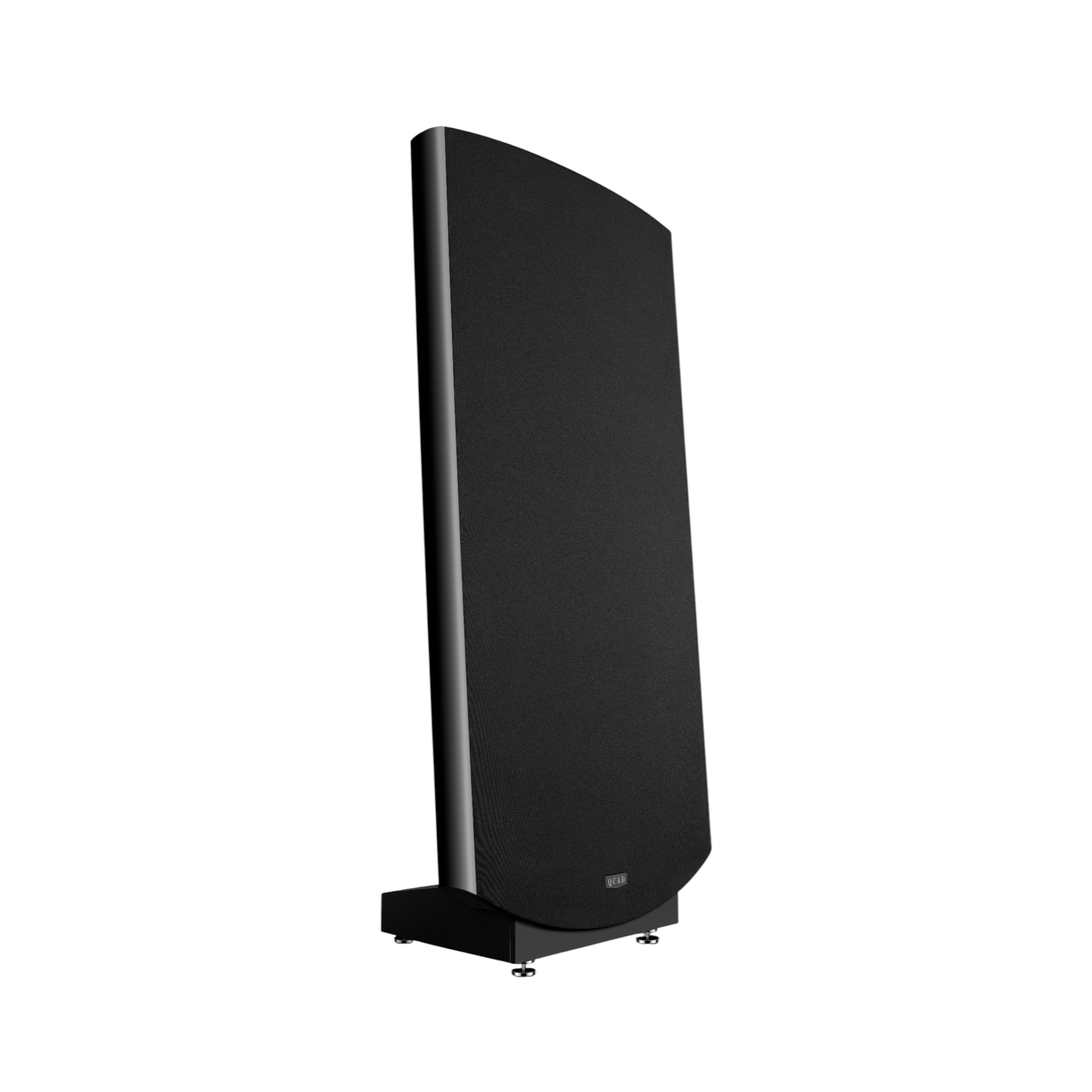

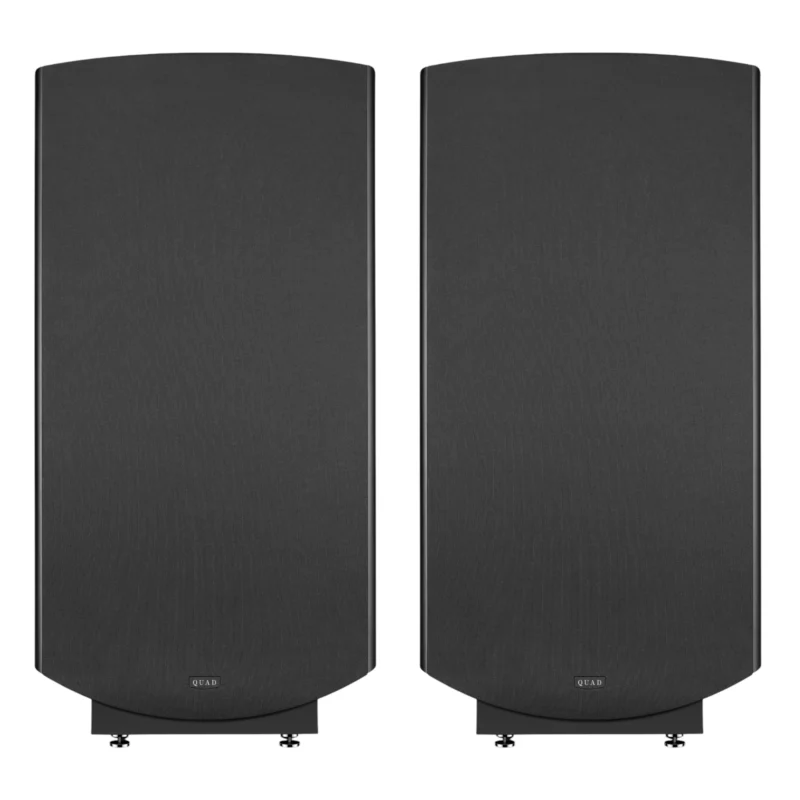

QUAD ESL 2912X Electrostatic Loudspeaker
QUAD ESL 2912X Electrostatic Loudspeaker – Redefining High-End Audio Performance
The QUAD ESL 2912X Loudspeaker is the flagship QUAD electrostatic loudspeaker. Featuring an expanded six-panel design for increased radiating area, higher sound pressure levels, greater dynamics, and extended bass, the ESL 2912X delivers an immersive listening experience with deeper bass and rich textures, bringing even the most complex music to life. Built for the ultimate audiophile experience, it offers enhanced dynamic range, improved headroom, and a spacious soundstage.
For more than half a century, QUAD has been celebrated for crafting some of the world’s most accurate and musically honest loudspeakers. Today, that legacy continues with the QUAD ESL 2912X Electrostatic Loudspeaker, a masterpiece of engineering that elevates home audio to an entirely new level. Designed for discerning listeners who demand absolute precision, lifelike realism, and unparalleled transparency, the QUAD ESL 2912X Electrostatic Loudspeaker delivers a listening experience that feels immersive, effortless, and truly unforgettable.
Whether you’re a dedicated audiophile, an enthusiast exploring the world of high-performance audio, or a music lover seeking a speaker that perfectly captures the artist’s original intent, this flagship model stands as an exceptional choice. The QUAD ESL series has long been regarded as the gold standard in electrostatic speaker design, and the 2912X continues this tradition with refinements that push sonic boundaries even further.
A Legacy of Electrostatic Excellence
Electrostatic loudspeakers remain a rare breed in the world of high-end audio, valued for their unmatched clarity, speed, and openness. The QUAD ESL 2912X Electrostatic Loudspeaker represents the pinnacle of this technology, offering a level of detail and resolution that conventional cone-based speakers simply cannot replicate. By combining QUAD’s pioneering electrostatic engineering with meticulous craftsmanship and modern innovations, this model stands as a reference-level speaker for the most demanding listening rooms.
With thoughtfully designed panels, precise crossover engineering, and enhanced structural rigidity, the QUAD ESL 2912X is built to reproduce music with extraordinary coherence and accuracy. From delicate acoustic arrangements to complex orchestral passages and dynamic jazz performances, these speakers handle every genre with ease and emotional impact.
The Heart
One would be rightly forgiven for knowing of the ESL but not knowing how the ESL differs from typical loudspeakers. It us correct to begin with the fact that a QUAD ESL is not your typical loudspeaker! Unlike conventional speakers that use moving-coil drivers, the ESL employs a completely different principle: an electrostatic panel.
At the heart of a QUAD ESL are panels containing a diaphragm of fine Mylar film, ten times thinner than a human hair. The Mylar film is coated with a high resistance conductive material and suspended between two perforated metal plates called stators.
This unique diaphragm is incredibly light and therefore dynamically responsive. It is much lighter than any moving-coil driver cone and can therefore respond to signal transients with incredible speed and accuracy.
The Mylar diaphragm is charged up to a constant high voltage exceeding 5.2kV DC. An audio signal is applied across to the two stators to create an alternating electric field, which causes the charged electrostatic Mylar diaphragm to be alternativley pushed and pulled towards them. As a result, the diaphragm vibrates accurately in response to the music signal, and so produces the ultra-pure sound reproduction for which QUAD ESL loudspeakers are well-known.
Due to the diaphragm’s lightweight nature and uniform drive across its entire surface, the sound it generates is exceptionally clean, responding accurately to musical transients, and exceptionally low in distortion, particularly intermodulation distortion. This is particularly evident in the midrange frequencies, where human hearing is most attuned.
“Point Source” Design
QUAD’s ESL mid-high frequency panels are configured with a “concentric ring” electrode design, initially conceived for the ground-breaking ESL-63. Rather than allowing all sections of the diaphragm to move uniformly, the speaker is meticulously engineered to ensure that the audio signal seems to emanate from a singular point in space. This sophisticated arrangement produces an exceptionally precise stereo image, wherein instruments and vocal performances appear to hover within the auditory environment — akin to being enveloped by the musicians themselves. This point-source characteristic is expertly facilitated by an innovative delay line system, which supplies the outer rings of the stators with gradually delayed iterations of the audio signal.
High Voltage & Low Distortion
One critical factor influencing the ESL’s performance is its notably high operating voltage – approximately 5,250 volts. This elevated voltage substantially enhances the diaphragm’s control and linearity, allowing it to move with precision in response to musical signals while significantly reducing distortion.
A QUAD ESL rigorously regulates this high voltage via a multiplier circuit that amplifies standard AC power, complemented by a protective circuit designed to prevent overdriving (excessive input power), thereby safeguarding the speaker from potential damage and distortion.
The Improvements
The intricate details of the manufacturing process contribute significantly to the refinements that are more than audible in the ESL X. For one, the time taken to manufacture a single QUAD ESL panel is extended, therefore the time frame for a full ESL loudspeaker system to be assembled is much more considered. The process is one of extreme care and attention to detail.
However, dig even deeper and QUAD engineers have taken things to the ‘X level’ with some intriguing further enhancements.
Major upgrades
The first technical improvement sees the operational PCB split from a monolithic design into three fully independent modules. The system comprises a High-Voltage Multiplier Module, a Control and Protection Module, and a Low-Voltage Signal Module. Together, these components form an integrated unit designed for optimal performance and reliability. By physically segregating the 5.25 kV multiplier stage from the sensitive low-voltage circuits, QUAD significantly diminish stray high-voltage electric fields. This isolation strategy not only minimises interference and crosstalk but also markedly enhances stability and noise performance. The resulting effect is crystal-clear audio signals that faithfully reveal every nuance, even during powerful musical peaks.
Secondly, it is important to note that, specifically for the ESL X, QUAD has reverted to using UK-manufactured audio transformers. These transformers are of a meticulous custom-specified designed, refined, and supervised in quality control by QUAD’s renowned service team, led by Rob Flain. The transformers are purpose-engineered to improve signal dynamics, particularly within the mid and high-frequency ranges. This results in a sound that is considerably more detailed, and exceptional high linearity is achieved. The wide bandwidth ensures a flat response extending to beyond 18 kHz, creating an effortless sense of airiness and extension. With robust regulation in place, these transformers effectively eliminate flux modulation artefacts when operating at high sound pressure levels.
Ultimately, these transformers significantly enhance mid-high dynamics, sharpen transient attacks, and broaden the perceived depth of the soundstage with superior resolution of micro-dynamics.
Key Features and Benefits
1. Precision Electrostatic Technology
At the heart of the QUAD ESL 2912X Electrostatic Loudspeaker lies QUAD’s proven electrostatic panel design. This technology uses an ultra-light diaphragm suspended between stators, enabling exceptionally fast transient response and distortion-free sound. The result is astonishing clarity, a natural tonal balance, and an almost holographic sense of space.
2. Six-Panel Array for Exceptional Detail
The ESL 2912X employs a six-panel configuration—four bass panels and two treble panels—carefully arranged to deliver seamless integration from high to low frequencies. This allows it to reproduce every nuance of a recording while maintaining remarkable coherence across the entire frequency spectrum.
3. Remarkable Transparency and Natural Sound
Unlike traditional loudspeakers that rely on drivers and enclosure materials, electrostatic speakers radiate sound from a large, flat surface. This ensures an incredibly open and transparent presentation. Instruments and vocals take on a lifelike presence, allowing you to hear details, textures, and micro-dynamics that often go unnoticed with other speaker types.
4. Upgraded Structural Design
The updated “X” version incorporates refinements in construction, including improved bracing and upgraded components that reduce resonance and enhance rigidity. This ensures that what you hear is pure music—free from coloration or distortion caused by unwanted cabinet vibrations.
5. Wide and Even Dispersion
One of the standout advantages of the QUAD ESL 2912X Electrostatic Loudspeaker is its ability to disperse sound evenly across a wide listening area. This creates a broad sweet spot, making every seat in your listening room the best seat in the house. Whether you’re listening alone or sharing the experience with friends, the sound remains consistent, immersive, and emotionally engaging.
6. Deep, Controlled Low-Frequency Performance
While electrostatic speakers are renowned for their midrange clarity, the ESL 2912X elevates bass performance through its multi-panel architecture and carefully tuned power supply. Expect tight, articulate, and naturally extended low frequencies that complement the spacious high-frequency detail without overpowering the mix.
7. Elegant and Timeless Design
With its slim profile, handcrafted finish, and understated aesthetics, the QUAD ESL 2912X Electrostatic Loudspeaker looks as refined as it sounds. Its tall, clean lines and minimalist design make it an elegant statement piece, suitable for both classic and contemporary interiors.
Why Choose the QUAD ESL 2912X Electrostatic Loudspeaker?
Unmatched Sonic Purity
When you invest in the QUAD ESL 2912X, you’re choosing a loudspeaker designed to deliver absolute musical truth. Its electrostatic technology eliminates mechanical coloration and reproduces audio with extraordinary realism. This is the closest many listeners will ever get to hearing a direct link to the recording studio.
Ideal for Critical Listening
If you enjoy long listening sessions, this loudspeaker is engineered to provide fatigue-free sound. Its smooth, natural presentation allows you to listen for hours without strain, making it a perfect fit for audiophile setups, dedicated listening rooms, and high-end two-channel systems.
Crafted for Longevity
QUAD loudspeakers are built to last. The ESL 2912X utilizes robust materials, carefully matched components, and advanced protection circuits to ensure reliable operation and long-term performance. This is a lifelong investment in exceptional sound quality.
A True Reference-Grade Loudspeaker
The QUAD ESL 2912X Electrostatic Loudspeaker is often considered a benchmark against which many other speakers are measured. With unmatched responsiveness, pinpoint imaging, and beautifully natural tonal accuracy, it sets a standard few competitors can match.
Bring Your Music to Life
The QUAD ESL 2912X Electrostatic Loudspeaker isn’t just another piece of audio equipment—it’s a transformative listening instrument. It breathes new life into your favourite recordings, revealing layers of detail, dimension, and musicality you may never have noticed before. From subtle acoustic textures to powerful crescendos, the 2912X delivers it all with absolute finesse.
Take the Next Step
If you’re ready to elevate your home audio system to true reference standards, the QUAD ESL 2912X Electrostatic Loudspeaker is an extraordinary choice. Experience the purity, precision, and emotional depth that only a world-class electrostatic loudspeaker can provide. Explore its capabilities, hear its breathtaking clarity, and bring home a loudspeaker designed to last a lifetime.
Specifications of the QUAD ESL 2912X Electrostatic Loudspeaker
| Model | ESL 2912X |
| Format | loor standing dipole with 3° fixed tilt |
| Type | Multiple electrostatic drive membranes |
| Point Source Time Delay | Progressive concentric rings |
| Chassis Structure | Heavy duty composite aluminium / steel |
| Panel Elements | 6 |
| Maximum Output | 2 N / m2 at 2m on axis |
| Sensitivity | 1.5 mbar per volt referred to 1m (86dB/2.83V rms equivalent) |
| Nominal Impedance | 8 Ohms |
| Impedance Variation | 4 – 20 Ohms |
| Maximum Input | Continuous input voltage (rms): 10V Programme Peak for undistorted output: 40V Permitted peak input: 55V |
| Frequency Response | 32Hz – 21kHz (-6dB) 28Hz – 23kHz (useable) |
| Directivity Index | See Polar Diagrams |
| Distortion (100dB @ 1m) | Above 1000Hz <0.15% Above 100Hz <0.5% Above 50Hz <1.0% |
| AC Input | 220 – 240V, 100-120V |
| Power Fuse | 100mA anti-surge, 200 – 240V 200mA anti-surge, 100 – 120V |
| Power Consumption | 8W |
| Dimensions (H x W x D) | 1470 x 690 x 380 (mm) |
| Net Weight | 44kg |
