Rega Planar 6 with Nd5 (MM) or Nd7 (MM) cartridge factory fitted.
The Rega Planar 6 Turntable is constructed around a unique ultra-light foam core plinth and HPL laminates. It is designed to deliver a level of performance beyond anything at this price. The Planar 6 features the RB330 tonearm and a dual-layer float glass platter. The supplied Neo turntable power supply provides convenient speed selection, advanced anti-vibration control, and electronic fine speed adjustment.
The Rega Planar 6 Turntable is built around the huge success of the RP8 and RP10 turntables. It is the first new Rega turntable to be constructed with an ultra-lightweight Tancast 8 polyurethane foam core plinth (a material developed for the aerospace industry). This material is sandwiched between a new HPL (high pressure laminate). HPL is exceptionally thin whilst extremely rigid and is presented in a stunning Polaris matt grey finished with high gloss polymer black edge trim.
The Planar 6 now benefits from a single piece, machined aluminium sub-platter, a new 24 V motor hand tuned and matched to its own Neo power supply and a custom drive pulley fitted with the upgraded drive belt.
The Planar 6 will now ship with a new-look NEO MK2 power supply as standard.
KEY FEATURES of the Rega Planar 6 Turntable
- RB330 tonearm with stainless balance weight
- Nd5 (MM) or Nd7 (MM) cartridges factory fitted options
- Dual-layer float glass platter
- Double brace technology
- Tancast 8 foam core plinth
- Custom-matched Neo PSU
- EBLT Reference drive belt fitted as standard
- Available in two matt finishes, Polaris grey and white (new for 2023)
- Lifetime warranty against manufacture defects
RB330
The RB330 tonearm was designed using the latest 3D CAD & CAM technology, and is the culmination of more than 35 years of tonearm design experience. Featuring a brand new bearing housing, and our latest tonearm tube designed using intelligent redistribution of mass ensure this arm will exhibit fewer points of possible resonance. Extreme stability with almost friction free movement from the new high precision bearing assemblies guarantees to gather more information from your vinyl than ever before.
PLINTH
Super lightweight foam core plinth. Plinth laminate: New Polaris HPL (high pressure laminate). Non-marking matt finish scratch resistant high rigidity skin. Available in one finish ‘Polaris Grey’ matt finish with high gloss black polymer edge trim.
DOUBLE BRACE TECHNOLOGY
Rega’s double brace technology, with integral custom matched aluminium tonearm and hub pillars ensures maximum rigidity and accuracy.
CUSTOM MATCHED NEO TTPSU AND 24 V MOTOR
New high spec Rega 24 V low noise synchronous motor – each motor matched by hand to its own Neo MK2 PSU ensuring optimum anti-vibration control.
TECHNICAL SPECIFICATIONS of the Rega Planar 6 Turntable
- Tonearm
- Hand assembled precision RB330 tonearm
- Motor
- 24 V low noise motor
- Platter
- Dual layer smoked / clear glass platter
- Connectivity
- RCA / Phono
- Power
- Mini DIN for connection to supplied Neo PSU
- Planar 6 Turntable Dimensions (lid closed) (W x H x D)
- 447 x 120 x 360 mm
- Neo PSU Dimensions (W x H x D)
- 180 x 50 x 155 mm
- Weight
- 5.2 kg

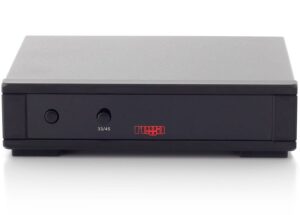

Rega NEO PSU Mk2
The new Neo MK2 is housed in a redesigned case to bring it in line with other products in the range creating an improved family feel. The Neo MK2 PSU is an advanced turntable power supply that provides user-controllable fine speed adjustment, an advanced anti-vibration motor circuit, and the convenience of electronic speed change. The Neo MK2 will make a welcome addition to any compatible Rega turntable by reducing motor noise and improving speed stability and rotational speed accuracy.
Technical Specifications of the Neo PSU MK2
| Specification | Details |
|---|---|
| Output to motor bi-phase | 24 V AC protected by resettable fuse |
| Power consumption | 7.2 W |
| Voltage | 24 V AC |
| Power supply | Rega PS1 only |
| Speed control step size | 0.01 RPM |
| PS1 | Input 230 V ~ 50 Hz 0.07 A / Output 24 V ~ 350 mA AC |
John D’souza –
I was after a high-end turntable that would deliver superior sound quality and the Rega Planar 6 fit the bill. I had been wanting to upgrade my turntable for a while and I’m very glad I chose this one. It has a minimalist design with a belt drive. I was a bit concerned about putting an expensive turntable together but it was much easier than I had anticipated. My only issue is that I’ve been finding it difficult to find more vinyl lp records.
Pravish Mistry –
The Rega Planar 6 makes it easy to invest in an affordable audiophile-quality turntable that will more than meet your needs. This deck features an RB330 tonearm fitted with a stainless-steel balance weight and an Exact (MM) cartridge. It has a dual-layer float glass platter, a double brace technology and superb timing, agility and dynamism. The Rega Planar 6 delivers a level of performance beyond anything that I have heard in its price range. If you have a decent LP collection and would like to get the best from your collection, this is it.
