Taga Harmony Platinum SW-10 v.3 Active Subwoofer

Taga Harmony Platinum SW-10 v.3 Active Subwoofer

Born in Europe – Crafted for the World

We have always considered the Platinum as one of the most important series in the premium category.
That is why high expectations were placed on our development team during crafting the newest Platinum v.3 subwoofer.
We were committed to creating extraordinary subwoofer in terms of sound performance while maintaining highly-acclaimed shapes and looks of the current model.
We have to admit without any doubt that the final result is amazing and even exceeds our expectations.

We implemented our newest concept “Born in Europe – Crafted for the World” in this new project resulting in deep, very well controlled and defined bass.

We do believe that such high performance has never been available at this price level and far beyond.

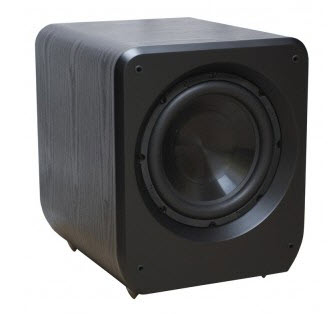

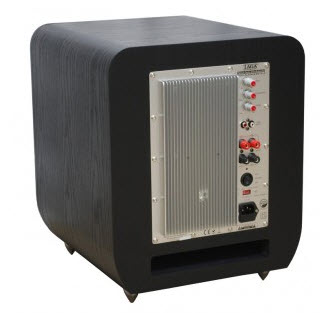

The Platinum SW-10 v.3 is a 10” single driver subwoofer with built-in high-current amplifier and utilizing slotted bass port on the rear.

The v.3 version utilizes a totally new amplifier and power boards with higher-grade components (capacitors etc.), a heavily modified woofer and redesigned internal cabinet structure (bigger internal volume and increased stiffness).

The new built-in amplifier delivers 240 watts of power, is characterized by much better efficiency and greater current drive which results in lower distortion, more smooth and flat response and much faster amp operation with significantly reduced operation noises. An integrated clipping limiter maintains the best performance and safe operation of the amp and woofer even at extremely high volume levels.

The redesigned bass driver can operate in higher amplitude ranges and can faster react to any changes in the audio signal structure.

A removable IEC type power cord gives an option to upgrade your system with a premium audiophile power cable at any time.

The Platinum SW-10 v.3 subwoofer delivers the most powerful, deep bass with staggering definition, location and dynamics never met at this price level before. It is the absolute best buy in premium subwoofers!

Specifications of the Taga Harmony Platinum SW-10 v.3 Active Subwoofer

• Design	Active subwoofer, 1 driver TLIE enclosure
  Amplifier power	240W RMS 750W Dynamic Peak Class A/B, THCA
  Frequency response	20Hz – 200Hz
  Bassreflex	Rear, single, slotted Acoustical labyrinth
  Bass driver	255 mm (10”), polypropylene THAW, TSAC 4ohm
  Crossover filter frequency	30Hz – 200Hz (variable)
  Phase regulation	0 – 180° (variable)
  Inputs	1 x Low Input (L/R) 1 x SUB (LFE)
  Features / accessories	Auto On / Off Single RCA-RCA Subwoofer Cable Removable IEC power cord
  AC power / power consumption	220V-240V (power selector to 110V-120V) 50/60Hz, 250W
  Dimensions (H x W x D)	43 x 35 x 41 cm (incl. grill & feet)
  Weight	23.6 kg / pc.

• Warranty: One Year Manufacturers Warranty
