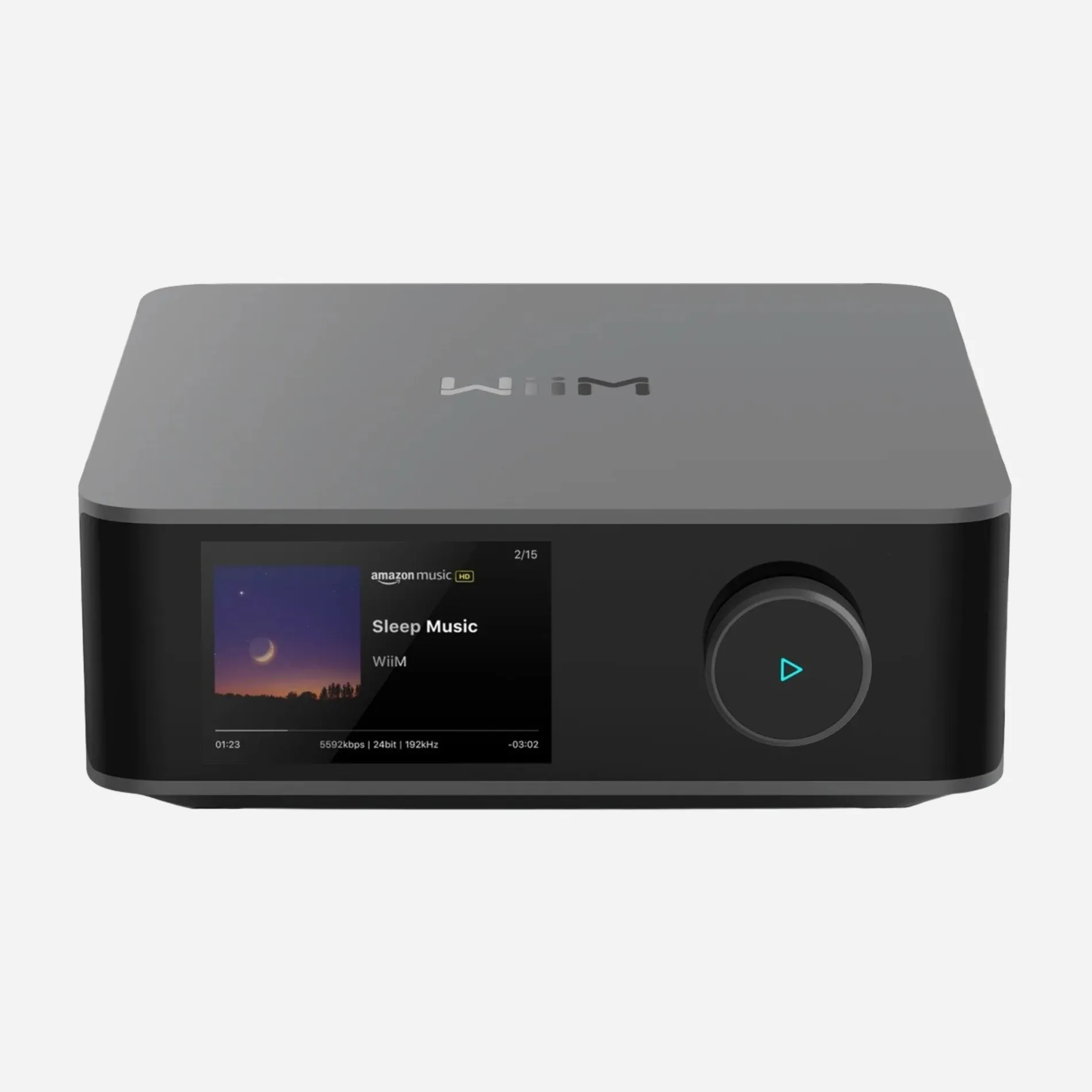

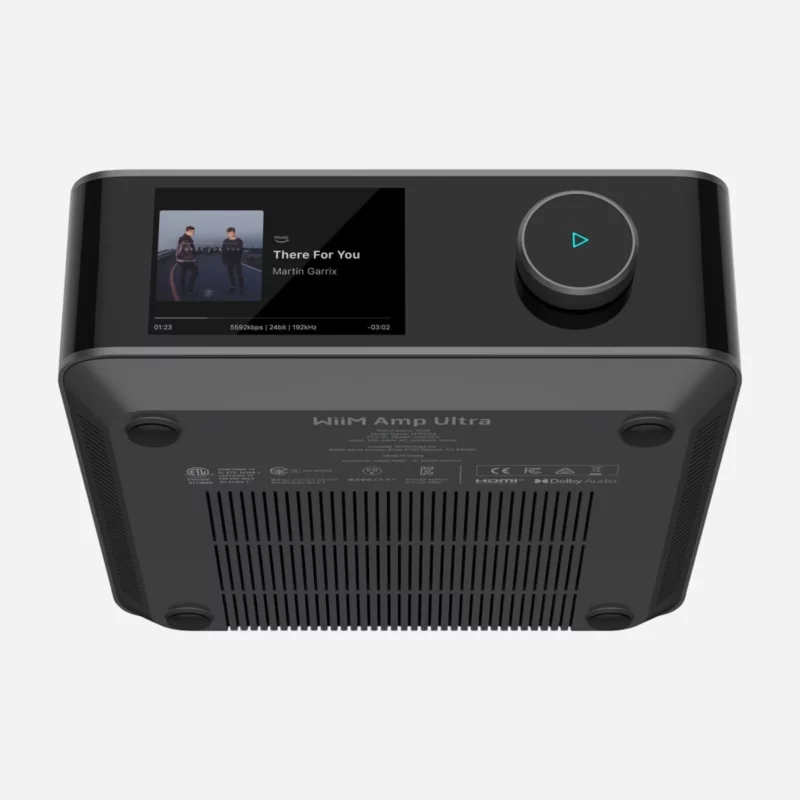

WiiM Amp Ultra Streaming Amplifier
The WiiM Amp Ultra provides you with 100W of pure hi-fi power with a vibrant 3.5″ touchscreen for intelligent, seamless control.
The WiiM Amp Ultra is WiiM’s most advanced streaming amplifier yet. Built for music lovers, home theatre buffs, and smart home fans, it delivers stunning 100W per channel (8Ω) with ultra-low distortion, pushing high-fidelity audio to every corner of your space. Whether it’s vinyl, Spotify, or cinematic surround sound—you’ll hear it like never before.
100W per channel at 8 ohms
Advanced Thermal Management
Premium unibody aluminium design
High-fidelity audio with premium components
Next-Gen Connectivity
Elegant Touchscreen Design
RoomFit™ Room Calibration Built-In
Post filter feedback technology (PFFB)
All-in-One Streaming Hub
Cinematic TV Audio
Smart Preset
Beautiful Inside and Out
Flagship Components, Flawless Fidelity
Under the hood, the Amp Ultra is powered by top-tier components:
- ESS ES9039Q2M SABRE DAC
- Dual TI TPA3255 Class-D amplifiers
- Six TI OPA1612 op-amps
Combined with Post Filter Feedback (PFFB) technology, it delivers clean, detailed sound with consistent performance across all speaker loads—perfect for bookshelf, floor-standing, or in-wall speakers.
Post Filter Feedback Technology
Advanced Thermal Management
- Copper Heat Pipe – Rapidly transfers heat from key components for stable performance at any volume.
- Large Aluminum Heatsink – Exceptional conductivity ensures fast, efficient cooling, preventing thermal throttling.
- Precision PID Control – Real-time temperature regulation for optimal cooling and long-term reliability.
Next-Gen Wireless Streaming
- Wi-Fi 6 (Tri-Band)
- Bluetooth 5.3 with SBC and AAC support
- Stream ultra-high-resolution audio with near-zero latency—no dropouts, no lag, just music.

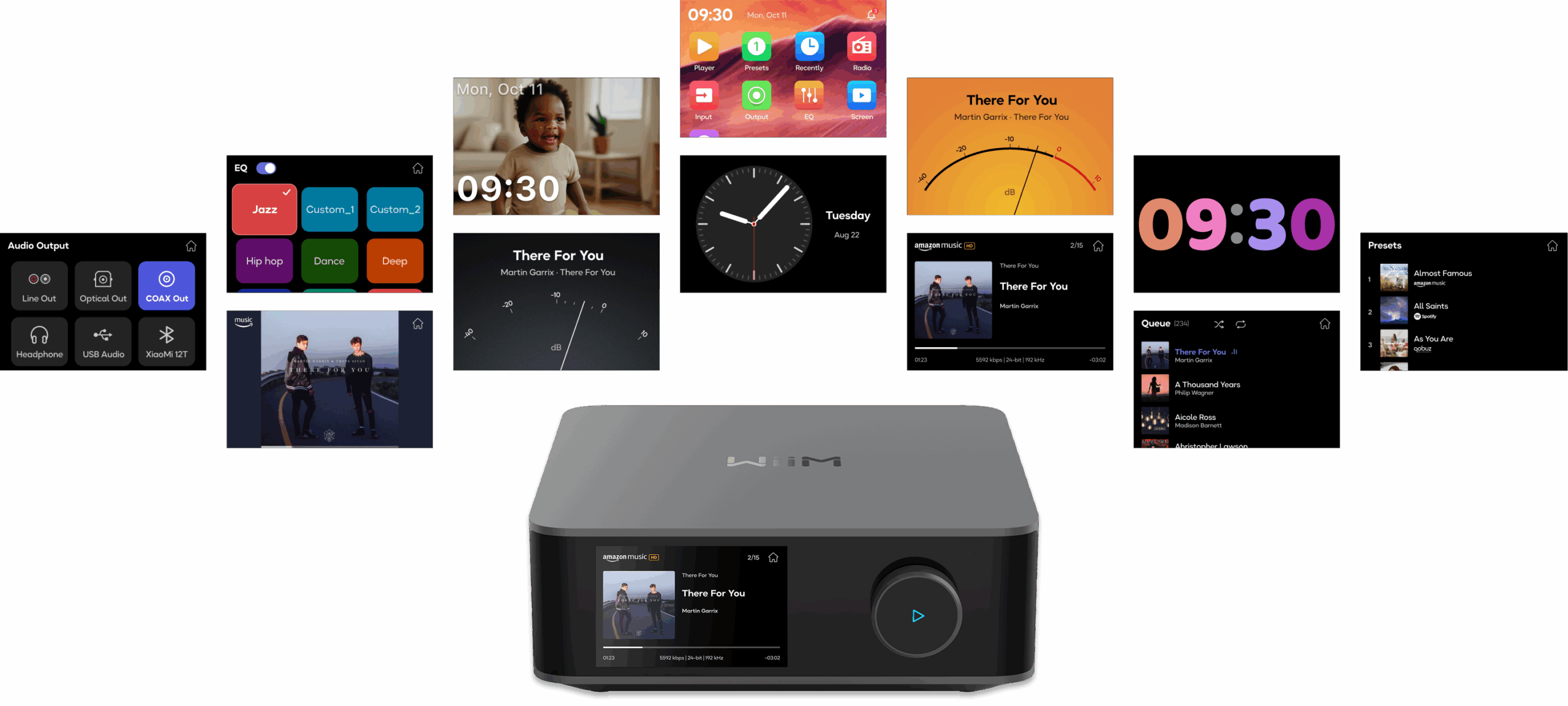

See Your Sound
Built-In RoomFit™ Room Correction
All the Music You Love, All in One Place
Prefer using your own apps? No problem—Amp Ultra supports:
Tailor Your Sound
- 24 Preset EQ Profiles
- 10-Band Graphic and Parametric EQ
- Per-input EQ settings
- Subwoofer crossover control
Versatile Connectivity

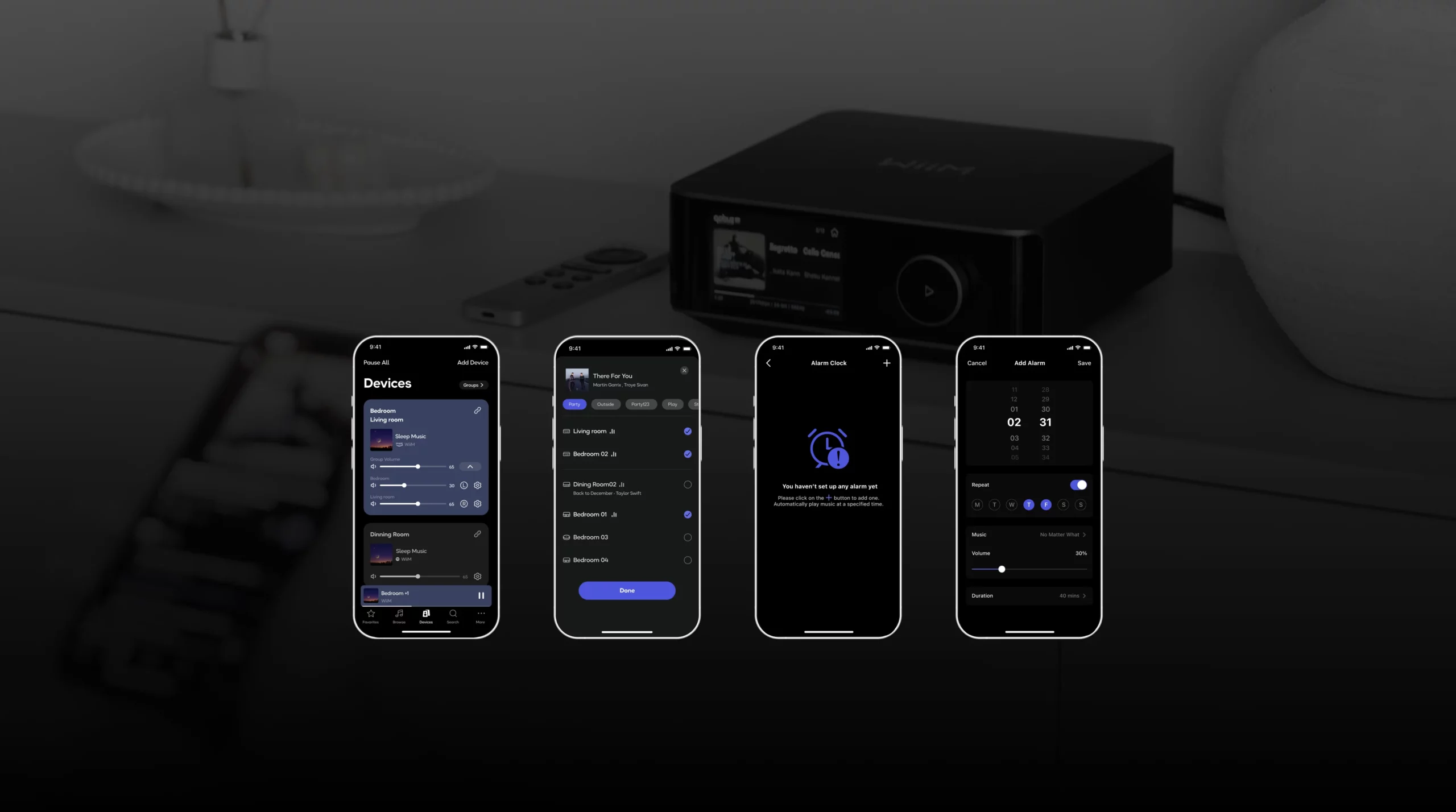

Control Everything with the WiiM Home App
Smarter Listening
- Multi-Room Audio with WiiM, Google Home, and Alexa systems
- Stereo Pairing for wider soundstage
- Home Theater Mode with HDMI ARC and Dolby Digital support
- Smart Presets & Alarm Clock to simplify your routine
- Voice Control via Alexa, Google Assistant, or the included WiiM Voice Remote
Future-Proof by Design
FAQs – WiiM Amp Ultra
Q1. What speakers can I use with WiiM Amp Ultra?
WiiM Amp Ultra supports most passive speakers with an impedance between 2–8 ohms. It can power bookshelf, tower, in-wall, or outdoor speakers—up to four in total (two pairs in parallel at 4Ω).
Q2. Can I connect my turntable or CD player?
Yes. You can use the Line-In input to connect analog sources such as turntables (with built-in or external preamp), CD players, or tape decks.
Q3. Does it support HDMI ARC?
Yes. HDMI ARC allows you to connect your TV and control volume directly using the TV remote. It also supports Dolby Digital for immersive home theater sound.
Q4. Can I use it with my subwoofer?
Yes. There is a dedicated Subwoofer Out (RCA) for active subwoofers. You can adjust crossover and gain in the app for seamless integration.
Q5. Does WiiM Amp Ultra work with smart home systems?
Yes. It works with Alexa, Google Assistant, and supports multi-room setups using WiiM, Alexa Cast, or Google Cast. It is also compatible with Control4, RTI, URC, NICE, and other custom installation platforms.
Q6. What music services are supported?
You can stream from Spotify, TIDAL, Qobuz, Amazon Music, Deezer, Pandora, TuneIn, SoundCloud, iHeartRadio, and more via the WiiM Home App or your preferred casting protocol.
Q7. Can I stream music directly from my phone?
Yes. You can stream via Chromecast, Alexa Cast, Bluetooth, Spotify Connect, TIDAL Connect, Qobuz Connect, and DLNA.
Q8. Does it support Roon?
Roon Ready certification is pending. Once certified, WiiM Amp Ultra will integrate seamlessly with Roon’s advanced streaming and library management features.
Q9. Can I control multiple rooms?
Yes. You can group multiple WiiM devices using the WiiM Home App, Alexa, or Google Home for synchronized multi-room playback.
Q10. What’s special about the DAC and amplifier design?
It features a high-end ESS ES9039Q2M DAC, dual TI TPA3255 Class-D amplifier chips, and six TI OPA1612 op-amps—delivering clean, detailed, high-power audio with ultra-low distortion.
Q11. What is PFFB technology?
Post Filter Feedback (PFFB) enhances amplifier stability and performance by compensating for speaker load variations, resulting in more accurate and consistent sound.
Q12. Does it have room correction?
Yes. Built-in room correction automatically adjusts EQ to suit your room’s acoustics and speaker characteristics for optimal sound.
Q13. Can I adjust the EQ?
Yes. You can choose from 24 preset profiles or fine-tune your audio with a 10-band graphic and parametric EQ per input source.
Q14. What is the warranty period?
WiiM Amp Ultra comes with a 1-year limited warranty.
Specifications of the WiiM Amp Ultra
| Audio Performance | |
|---|---|
| Power Output (THD = 0.08%, two channels driven) | 100 W per channel @ 8Ω, 200 W per channel @ 4Ω |
| Amplifier Technology | Class-D with PFFB (Post-Filter Feedback) technology |
| Total Harmonic Distortion (THD+N) | ≤0.005%, -106 dB (A-weighted) |
| Signal-to-Noise Ratio (SNR) | ≥120 dB |
| Damping Factor | 94 |
| Frequency Response | 20Hz – 20kHz ± 0.5dB |
| Impedance Range | 2 – 8Ω |
| Audio Processing | |
| Premium Audio Components | ESS 9039Q2M DAC, Dual TI TPA3255 Amps, TI OPA1612 op-amps |
| Bit-Perfect Playback | Supports up to 192kHz/24-bit audio |
| Dynamic Range | ≥120 dB |
| Input & Output Options | |
| Analog Inputs | 1x RCA Stereo (CD players, PCs) |
| Digital Inputs | 1x Optical (TOSLINK, up to 192kHz/24-bit), HDMI ARC (PCM up to 192kHz/24-bit, Dolby Digital 5.1) |
| Speaker Outputs | Gold-plated binding posts (supports banana plugs or bare wire) |
| USB Audio Output | Up to 8-channel 24-bit/192kHz, UAC 2.0 compliant |
| Sub Output | Dedicated RCA Mono output for powered subwoofers |
| Wireless & Network Connectivity | |
| Wireless | Bluetooth 5.3 (A2DP, AVRCP, HID, WiiM voice remote), Wi-Fi 6 (Upgradeable to Wi-Fi 6E) |
| Wired Network | Ethernet (100Mbps), RJ45 port |
| EQ & Sound Customization | |
| Input-Specific EQ | Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In |
| EQ Tools | 24 Preset EQ Profiles, 10-Band Graphic & Parametric EQ, Built-in Room Correction with mic-guided tuning |
| Streaming & Smart Features | |
| Streaming Protocols | WiiM Home App, Chromecast Audio, Spotify Connect, TIDAL Connect, DLNA, LMS, Roon Ready (Pending) |
| Multi-Room Audio | Compatible with WiiM, Google Home, Alexa multi-room systems |
| Stereo Pairing | Supports L/R speaker setup |
| Home Theater Mode | Works as front, center, or surround in Dolby 5.1 via HDMI ARC |
| Smart Presets | Quick access to playlists, sources, routines |
| Alarm Clock | Configurable time, repeat schedule, music source |
| Touch Display | |
| Screen | 3.5” glass-covered capacitive touchscreen |
| Functions | Playback controls, album art, EQ, input switching, queue, presets, VU meters, time/date, wallpapers, onboarding, firmware updates |
| Design & Controls | |
| Chassis | Precision-machined unibody aluminum |
| Dimensions | 7.9” x 2.9” x 7.9” (200 x 75 x 200 mm) |
| Weight | 5.4 lbs (2.45 kg) |
| Physical Controls | Multifunctional rotary knob (Volume, Play/Pause) |
| Thermal Management | Copper heat pipe, large aluminum heatsink, PID thermal control |
| Cooling System | Passive, silent operation |
| Package Contents | |
| User Guide ×1, Power Cable ×1, RCA Cable ×1, Optical Cable ×1, HDMI Cable ×1, Remote 2 ×1, Banana Plugs ×4 | |
