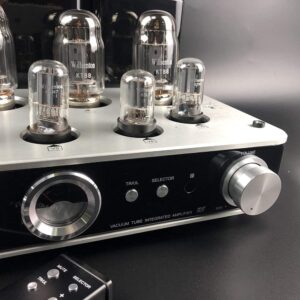

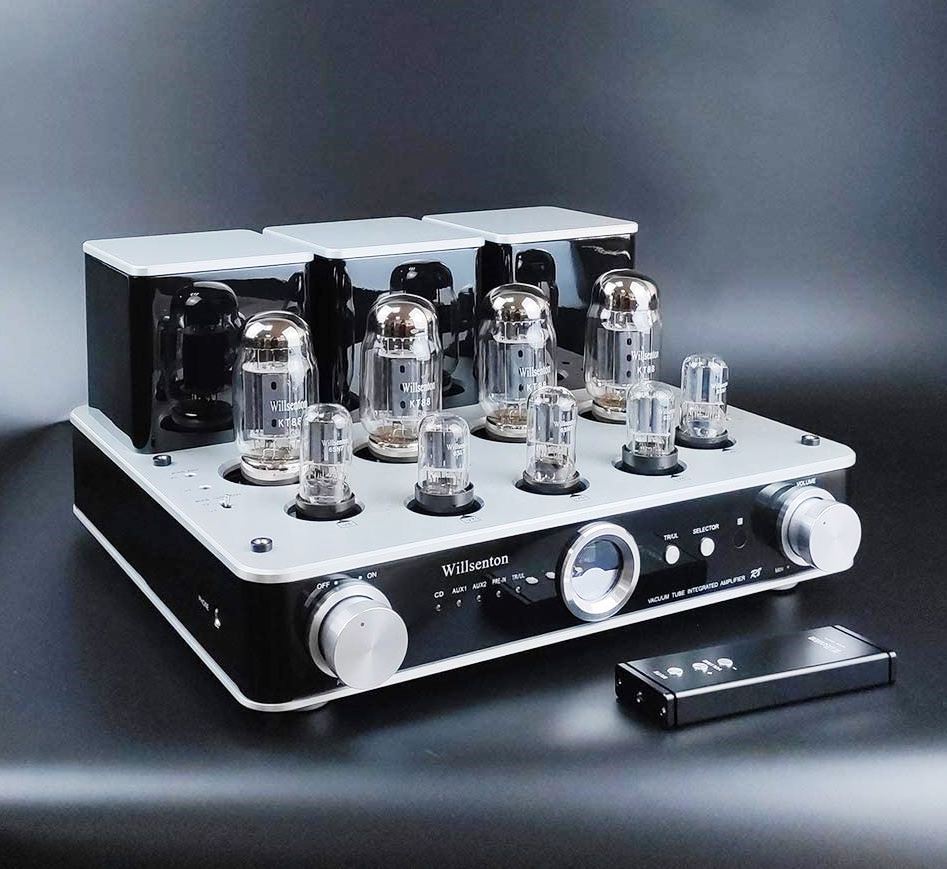

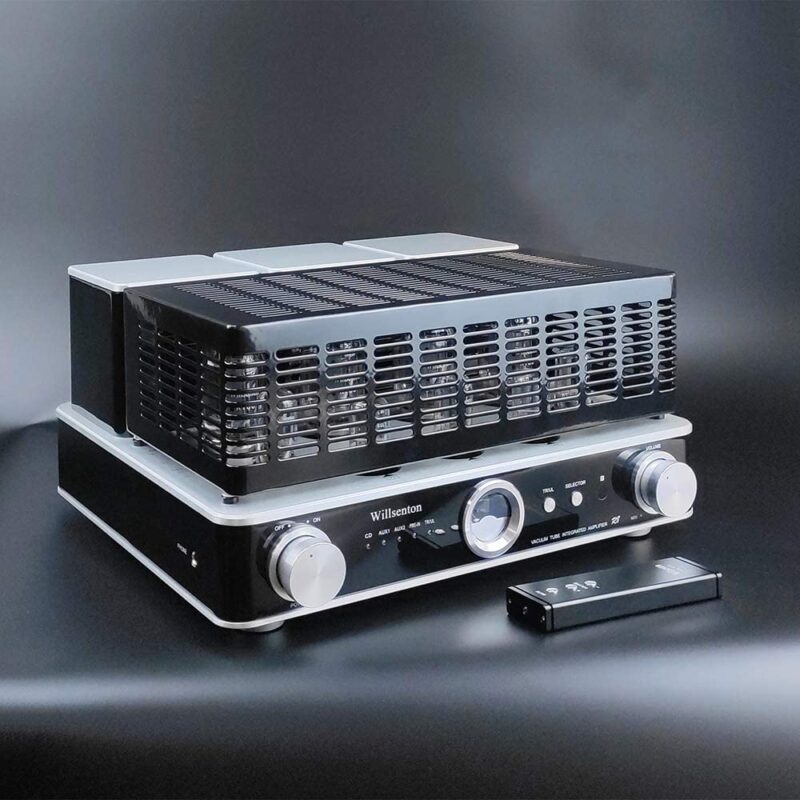

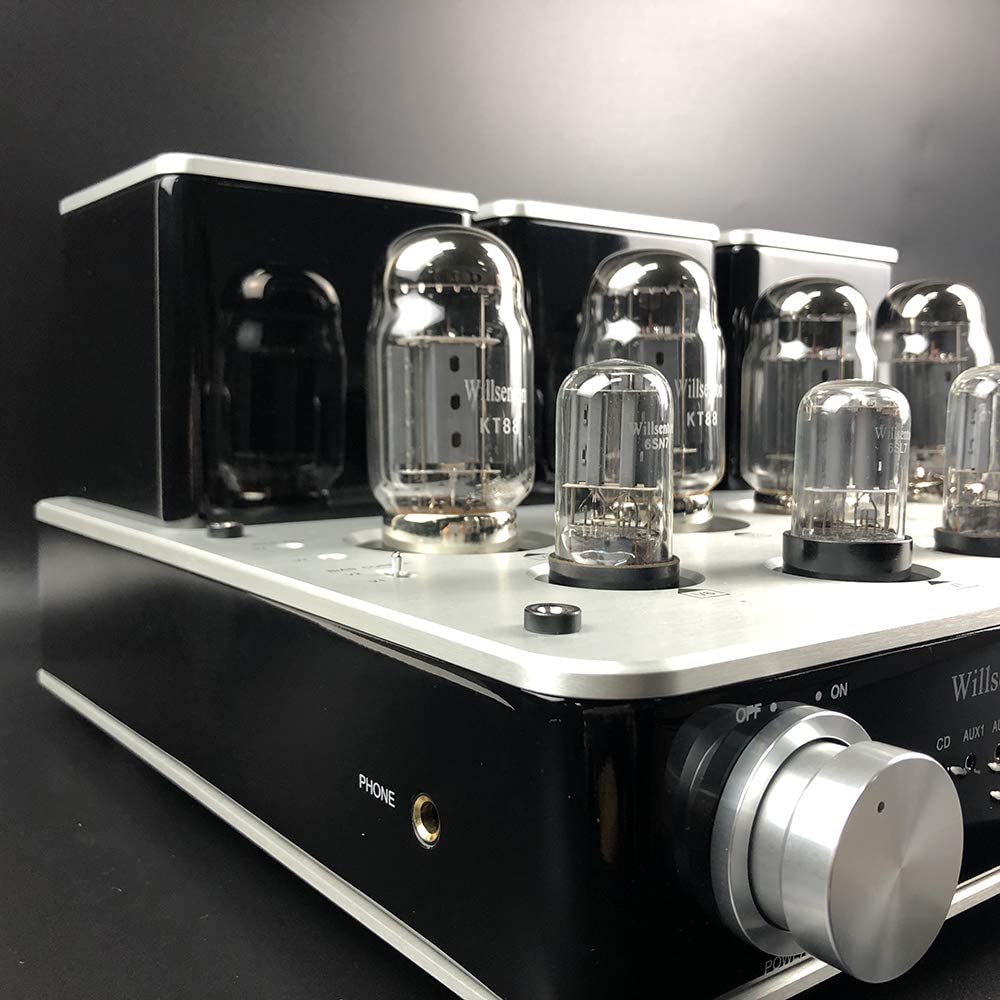

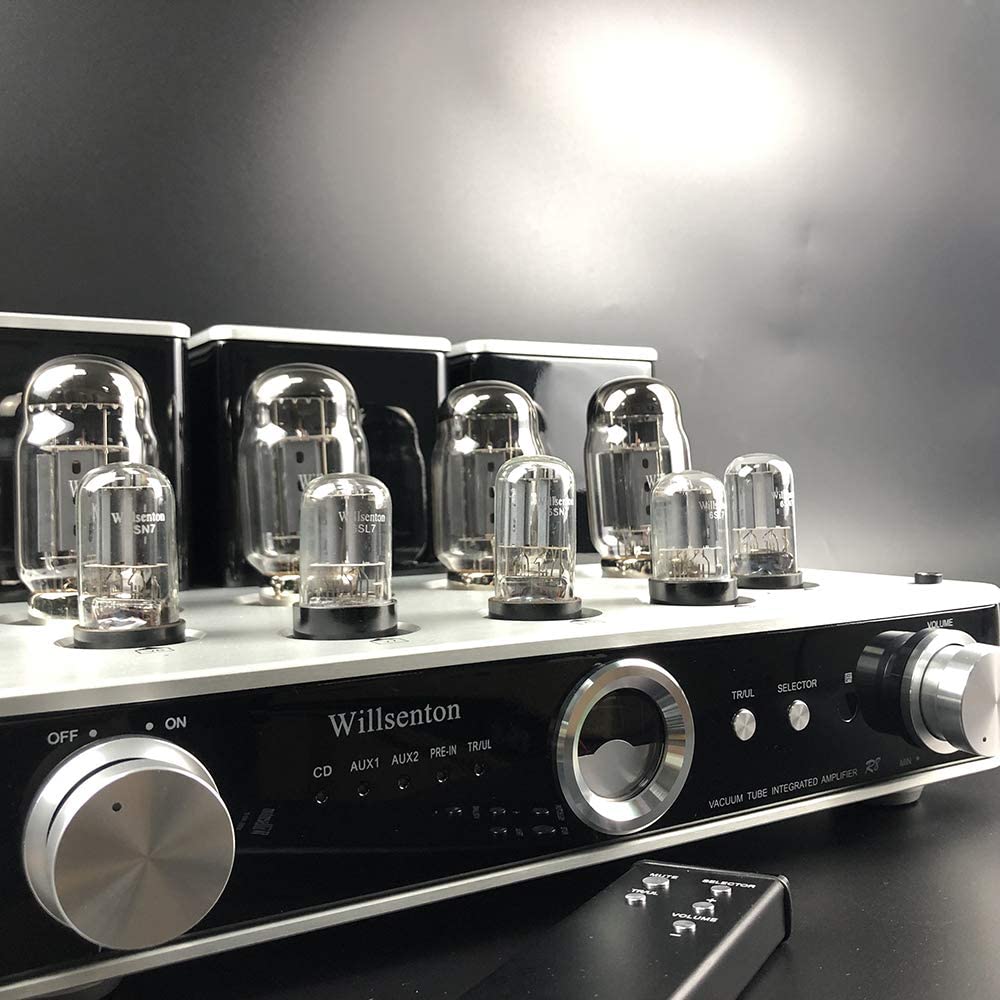

Willsenton R8 Tubed Integrated Amplifier
The Excellent R8 integrated Amplifier Provides enough power (Especially with the KT88) to drive almost all speakers and has been tested with speakers up to 86 dB.
The amplifier also comes with a headphone out for those headphone lovers.
This version has the KT 88 tubes for an excellent grip and base response and the Preamp tubes have been retained to the Willsenton to keep that sweet tube flavour.
The Cage has also been included as an extra for customers who buy from Hifimart!
The R8 tube amp was one of the best-kept secrets in Audio. The cat is out of the bag and now there have been rave reviews about this excellent amplifier
https://youtu.be/5XMpKsrFXFc
https://youtu.be/U0BDFT4f55w
https://youtu.be/U9Cb7lD7J-M
https://youtu.be/ht2vfUwX5FE
All items are guaranteed 100% BRAND NEW in the original edition Box.
6 month WARRANTY !!!
Features:
• Pure hand-made, Point to point soldering.
• The output transformer uses two high-quality wideband EI output transformers.
• The preamp stage 6SN7* 1 nos for power supply filtering.
• The driver Preamp stage uses Willsenton 6SL7* 2 nos and Willsenton 6SN7* 2 nos tubes, respectively.
• The power amp stage uses Willsenton KT88 * 4 nos tubes for class AB Push-pull power amplification.
• Triode and ultra-linear selection are available. The triode works in a soft, pure-and sleek sound, suitable for listening to vocals, strings and other types of music. In ultra- linear working mode, the sound tone is open, unrestrained, with good momentum, suitable for enjoying big scenes, big dynamics and other types of music.
• External independent BIAS-ADJ current display header. Adjustment and BIAS meter monitoring function keeps the best state of the power tube at all times.
• External EL34/KT88 tube selection function, easy to replace different types of tubes, adding endless fun.
• Infrared full-featured remote control.
• Use thick silver-plated signal leads.
• With pure post-level function can be connected to independent preamplifier signal input.
• Power on mute delay function, soft-start feature to prolong tube life (about 30 seconds).
• Select Japanese ALPS high-end motor potentiometer.
• Easy-to-install plug-in tube cage cover.
Product Parameters
- Rated output power
25W+25W (RMS triode working state) (KT88, 6550EH or EL34)
45W+45W (RMS ultra-linear working state) (KT88, 6550EH)
40W+40W (RMS ultra-linear working state) (EL34) - Frequency effect: 10Hz 40kHz (+/-0.5db)
- Total harmonic distortion: 1% (1kHz)
- Signal to noise ratio: 91dB
- Input sensitivity: 380mv (when Integrated amp input), 820mv (when pure power amp input)
- Input impedance: 100KΩ
- Output impedance: 4Ω, 8Ω
- Preamp stage power supply filtering Tube: 6SN7*1 nos
- Voltage amplifier stage Tube: Willsenton 6SL7*2 nos
- Driver stage Tube: Willsenton 6SN7*2 nos
- Power vacuum tube: Willsenton KT88*4 Power supply voltage: AC 100V to 240V 60Hz/50Hz, versions are in stock. (there is a 230V/115V voltage change-over switch inside of the body)
General
- Complimentary Cage (Included for Hifimart buyers only ), Remote Included
- Colour: Two tone Silver Black
- Product weight: 30 Kgs
- Power consumption: 280W
- Product dimensions: (W*H*D): 400*203*390 mm
