Audiolab 8300XP Stereo Power Amplifier
The Audiolab 8300XP Stereo Power Amplifier is a classic audiolab power amplifier delivering a solid crisp, clean sound. Styled in audiolabs authentic redefined aesthetics, a true descendant from a range of amplifiers revered throughout the world for their ability to perform at the highest level.
Delivering 140W RMS per channel into 8 ohms or 230W RMS per channel into 4 ohms, the 8300XP is capable of driving even the toughest of loudspeakers with sure-footed authority, combining audiolab’s class-leading neutrality with an unerring ability to engage the listener throughout a musical performance. When listening to the 8300XP, what you hear is the music – pure and unadulterated, with detail and dynamic range fully intact.

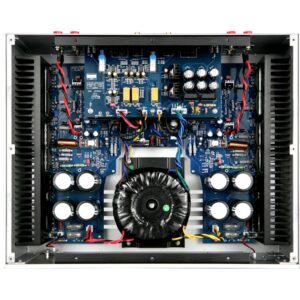

Exemplary build quality and reliability ensure that this is a power amp for all occasions, its versatility increased by a choice of balanced XLR and single-ended RCA inputs, bi-wire speaker terminals and a pair of 12v trigger inputs. Internal circuit components are of the highest quality, right down to the power and signal wiring, which is made of ultra-pure OCC (Ohno Continuous Cast) copper – all in aid of minimising distortion and maximising sonic clarity.
Flexibility is further enhanced by the ability to add a second 8300XP and operate in bridged mode, thus increasing the power output to 480W per channel into 8 Ohms. All audiolab amplifiers are gain-matched, ensuring perfect integration with other audiolab components – so you can start at the level that suits you best, and build up your system over time.
Thrilling to listen to and utterly dependable, the 8300XP is a genuine audio thoroughbred – the perfect partner for hi-fi stereo or home theatre system.
Audiolab 8300XP Stereo Power Amplifier Specifications
|Rate power output||140W RMS (8Ω <1% THD, 1kHZ stereo)|
|230W RMS (4Ω <1% THD, 1kHZ stereo)|
|480W RMS (8Ω <1% THD, 1kHZ bridge)|
|Gain||29dB @ 1kHz (stereo)|
|36dB @ 1kHz (bridge)|
|Input impedance||15k (balanced) 10k (unbalanced)|
|Frequency response -3dB||20Hz – 80kHz|
|+/-1dB||20Hz – 30kHz|
|Total harmonic distortion (THD)||0.004% (20W, ref. 1kHZ)|
|Intermodulation distortion (IM)||0.004% (20W, ref. 7kHz + 60Hz)|
|Transient inermodulation distortion (TID)||113dB (A Weighted, ref. 140W)|
|Signal-to-noise ratio (S/N)||140W / 113dB|
|Power Requirement||240V ~ 50-60Hz|
|230V ~ 50-60Hz|
|Dimension (mm) (WxHxD)||444 x 149 x 367|
|Carton Size (mm) (WxHxD)||550 x 260 x 580|
|Weight||16Kg (Net) 18.5Kg (Gross)|
Alpa Lall –
I love the 8300XP Stereo Power Amplifier. It is a power amplifier that is a great addition to my audio system. I am always looking to upgrade my audio system and have purchased the 8300XP Stereo Power Amplifier. I am very happy with the crisp clean sound it provides.
