BIC America Acoustech PL-300 Subwoofer

BIC America Acoustech PL-300 Subwoofer

BIC America Acoustech Elite Series PL-300 is a 1400W 12” Powered Subwoofer with Tri-Tuned Ports and “BASS BOOST” Feature for Room Shaking Bass Down to 15Hz.

Enjoy Room-Shaking Bass the way YOU want it!

In designing subwoofers, engineers must choose between the tradeoff of

1. Maximising Output (i.e., the loudest a subwoofer will play) or

2. Maximising the lowest bass frequency a subwoofer can deliver.

Traditionally, the subwoofer engineer decides which tradeoff he or she thinks is best for the consumer. But the top-of-the-line BIC America Acoustech PL-300 Subwoofer includes a “BASS BOOST” switch, “MAX OUTPUT” switch, Tri-Tuned triple ports and a port plug to allow you, the listener, to choose your bass preference. Enjoy exciting room-shaking bass below 20Hz (lowest audible threshold) you can only feel or set your PL-300 to “MAX OUTPUT” for the loudest levels of bass! The PL-300 delivers full-range, balanced, tight bass and excellent transient response, delivering clear, precise detail that perfectly matches your other speakers, which handle the midrange and treble. Until now, this state-of-the-art performance was limited to far more expensive subwoofers!

In the “BASS BOOST” mode with the centre plug inserted, the BIC America Acoustech PL-300 Subwoofer will deliver all frequencies from 15Hz to 200Hz (+/- 3dB) at impressively loud levels, including frequencies below 20Hz which are felt, not heard. In the “MAX OUTPUT” mode, the PL-300 will deliver even louder bass across all audible frequencies from about 20Hz to 200Hz. Experiment to see which works best for you. For best performance in the “MAX OUTPUT” mode, remove the PORT PLUG from the centre port.

Frequency Response with plug-in centre port and BASS BOOST: 15Hz – 200Hz (+/- 3db)

Frequency Response with plug-in centre port at MAX OUTPUT: 20Hz – 200Hz (+/- 3db)

Frequency Response with unsealed ports and BASS BOOST: 17Hz – 200Hz (+/- 3db)

Frequency Response with unsealed ports at MAX OUTPUT: 24Hz – 200Hz (+/- 3db)

SYSTEM SPECIFICATIONS of the BIC America Acoustech PL-300 Subwoofer

• Choose your Bass Preference! Set your PL-300 to “BASS BOOST” to enjoy exciting room-shaking bass down to 15Hz or set it to “MAX OUTPUT” to experience the loudest audible levels of bass down to 20Hz!

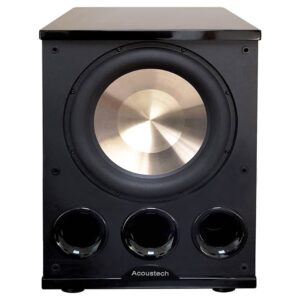

• Design: Front-firing 12″ powered subwoofer with Tri-Tuned flared front ports and port plug.
• Power: Built-in State-of-the-Art BASH Amplifier, 1400 Watts Dynamic Peak Output, 350 Watts RMS Continuous

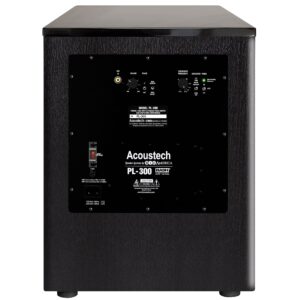

• AMPLIFIER FEATURES: “BASS BOOST” Feature, “MAX OUTPUT” Feature, adjustable crossover (by-passable when using a digital receiver), volume control, phase switch, auto On/Off with LED indicator, automatic signal sensing, Dolby Pro Logic & Dolby Digital/DTS LFE Sub Inputs and voltage switch.
• Frequency Response: 15Hz – 200Hz (+/- 3db)
• Driver: Custom-designed heavy-duty long-throw 12˝ poly-injected woofer with high-power magnet and high-excursion surround.
• Cabinet: Internally braced vibration-free MDF wood-grain cabinet with hand-rubbed black lacquer top and bottom
• Designed & Engineered in the U.S. for both Home Theatre & Music Applications
• Dimensions: 18˝H x 15 1/4˝W x 18 3/4˝D, Carton Dimensions:23 1/4˝H x 22 15/16˝W x 19 3/8˝D
• Shipping Weight: 48 lbs. (21.8 kg.)
