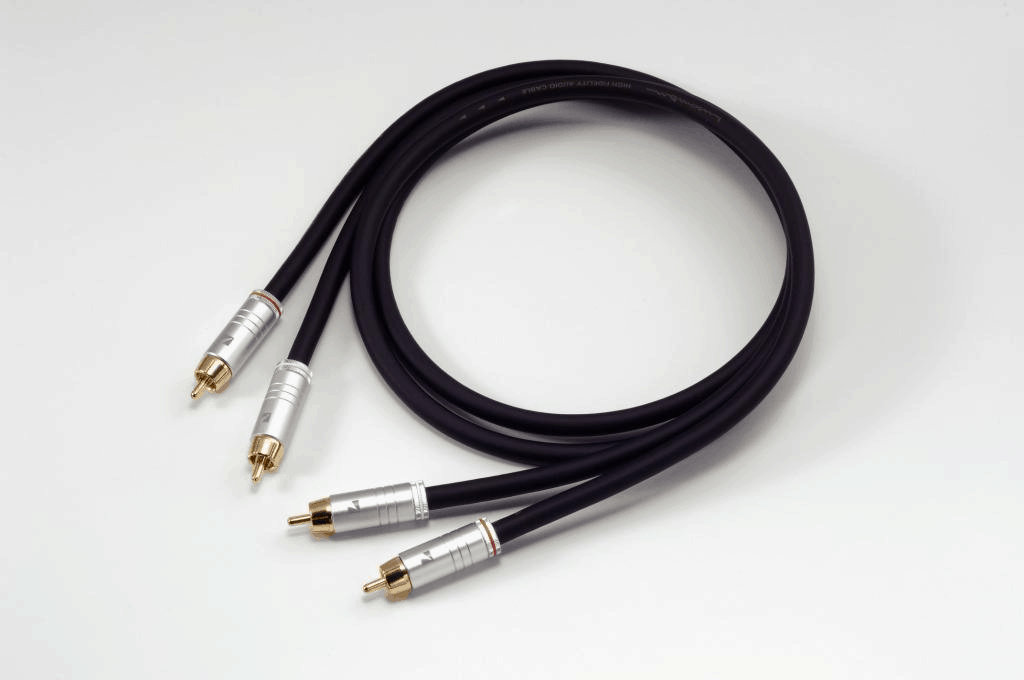

Luxman JPR-100 Reference RCA Interconnect Cables

The Reference Cable JP Series is a new genuine set of cables with the conductor into which high- purity oxygen-free copper (OFC) is integrated to strongly support the environment of connecting high- quality audio systems. Luxman has conducted sound quality tuning in a thorough manner with Luxman’s know-how and technologies accumulated for many years in the development of audio amplifiers.

Main Features of the Luxman JPR-100 Reference RCA Interconnect Cables

• Adoption of high purity oxygen-free copper (OFC) wire in core and shielded lines.
• Minimization of phase shifting in high-frequency range thanks to the same each core structure for hot and cold transmission lines.
• Adoption of core wiretapping with Japanese Paper featuring antistatic effect.
• Prevention of capacitance increase in low-pass area achieved by structure having fully air containing cotton yarn between insulated conductors.
• Sound quality tuning for correction of core line pitch to as moderate as 90mm to accomplish smooth signal transmission without any jam.

• Structure: 2-core shielded
• Core wire: Oxygen-free copper (OFC) wire, 0.18mm x 30 pieces
• Insulator: Foamed polypropylene (red, white)
• Conductor Strand pitch: 90mm
• Shielded wire:  Oxygen-free copper (OFC) wire, 0.12mm x 128 pieces
• Sheath: PVC (black)
• Conductor resistance: 26.4Ω/km or less (at 20°C)
• Insulation resistance: 1,000MΩ km or more (at 20°C)
• Capacitance: 42pF/m or less
• Withstand voltage: 500V AC (for 1 minute)
• Cable outside diameter: 8.0mm
• Length: 1 metre pair
