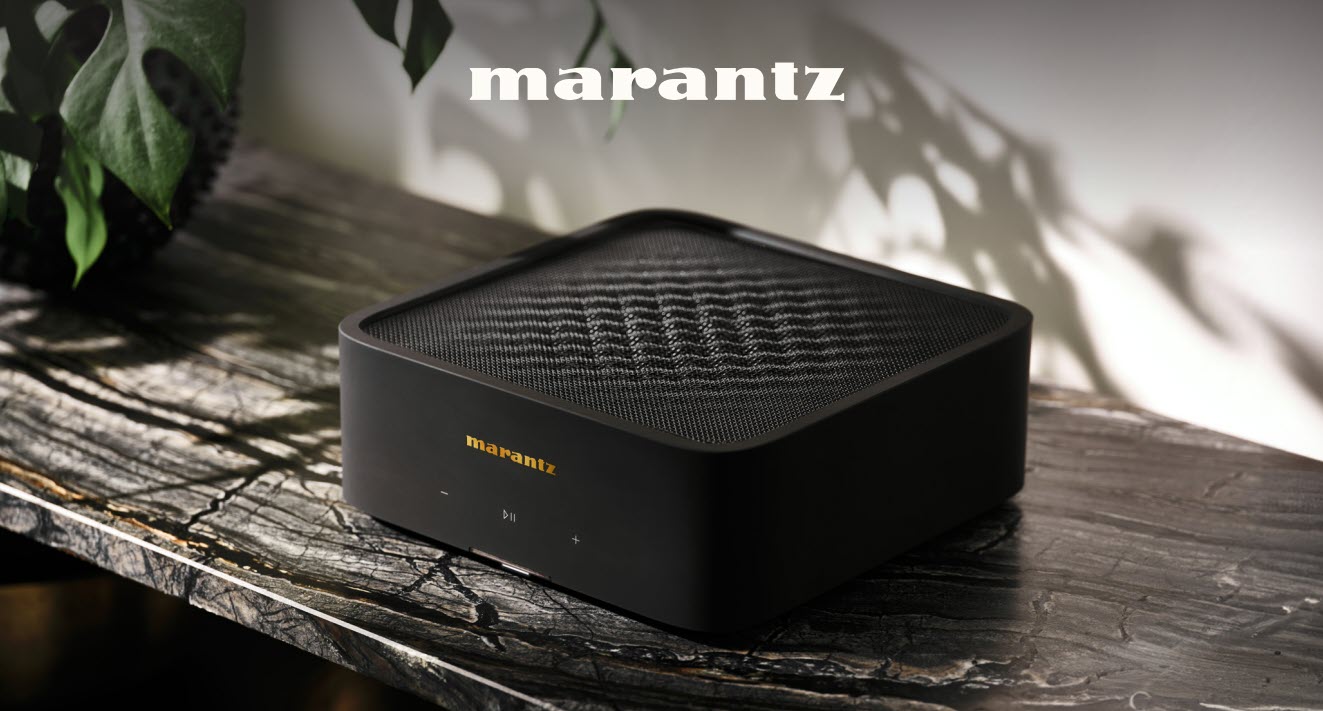

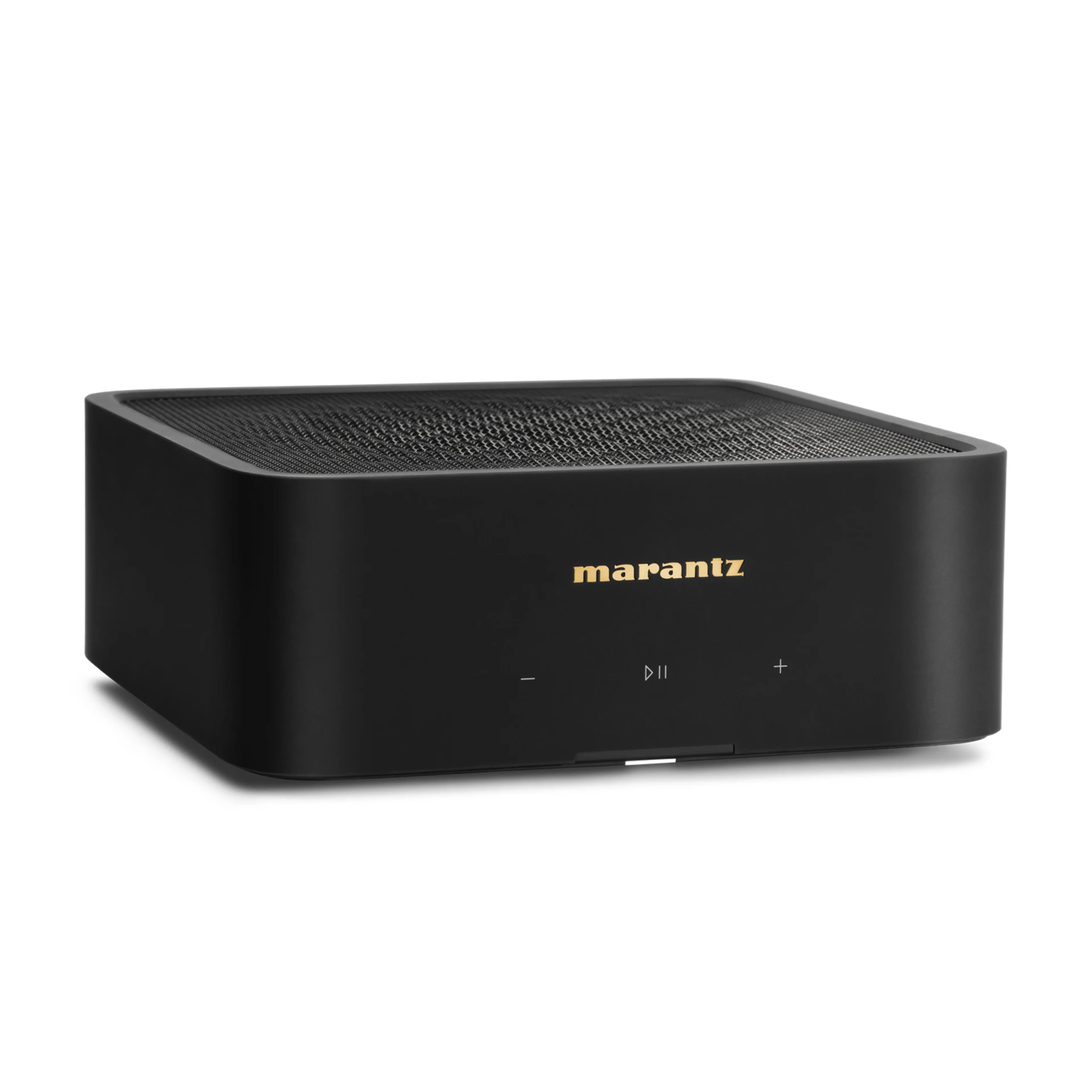

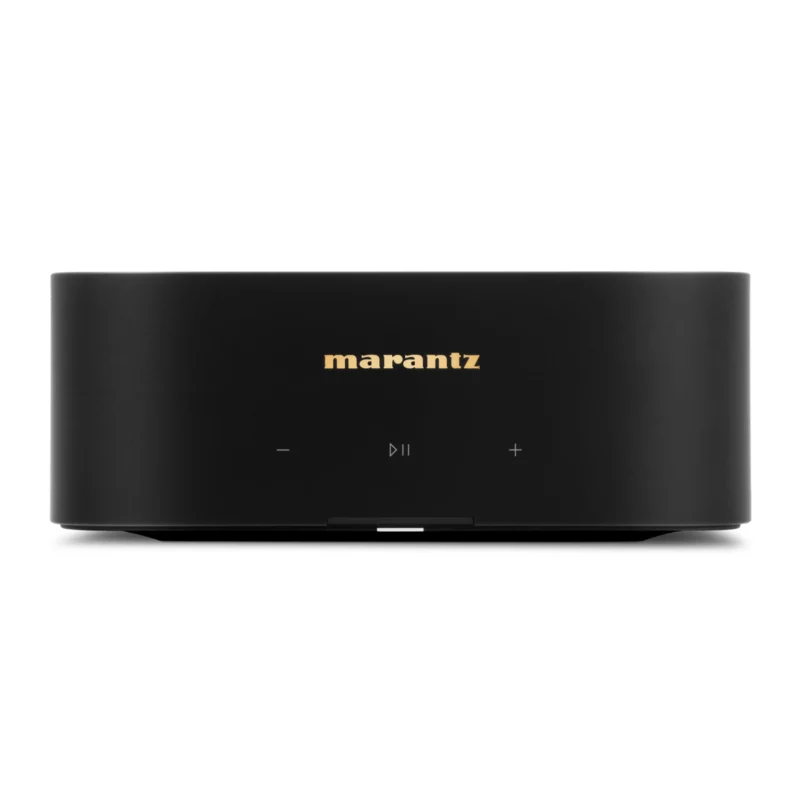

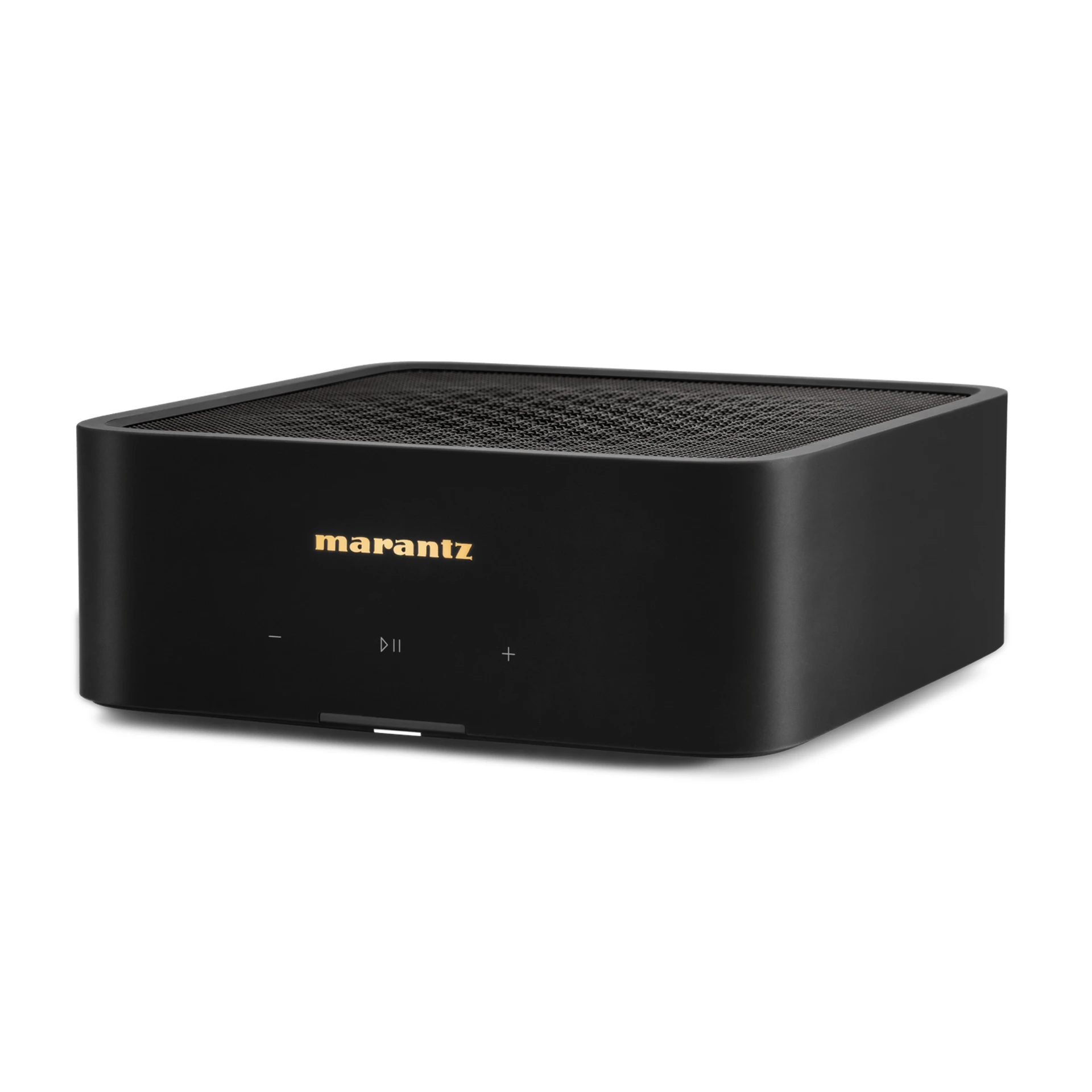

Marantz MODEL M1 Wireless Streaming Stereo Amplifier
The Marantz Model M1 is a 2.1 Ch. 100W per channel Wireless Streaming Amplifier with HEOS® Built-in.
The main features of the Marantz MODEL M1
- 2.1 channel output allows for loudspeaker and subwoofer connection
- 100W per channel high power and crystal clarity
- Switching, digital end-to-end amplifier topology
- Enhanced performance with Marantz Musical Digital Filtering (MMDF)
- Effortless streaming with HEOS® Built-in, WiFi, AirPlay 2, Spotify Connect
- Toslink optical audio and HDMI eARC digital audio inputs
- Digital decoding with Dolby Digital+
- Sound Master tuned, designed, and built by Shirakawa Audio Works in Japan
- Small footprint, rack-mountable, high-end materials, and refined Marantz industrial design
- 1 pair RCA analogue audio inputs with gold-plated brass terminals
Marantz MODEL M1 is a wireless streaming amplifier engineered with performance and versatility in mind. Enjoy your favourite music or TV shows with seamless connectivity from one elegant, compact device.
The Marantz MODEL M1 Wireless Streaming Stereo Amplifier is a versatile and compact audio solution designed to deliver high-quality sound in a modern, user-friendly package. This amplifier integrates seamlessly into any home audio system, offering a wide range of wireless streaming capabilities, including Bluetooth, Wi-Fi, and AirPlay 2, allowing users to stream music from their favourite devices effortlessly.
Equipped with Marantz’s renowned audio engineering, the Marantz MODEL M1 produces rich, detailed sound with its powerful Class D amplifier, capable of delivering 100 watts per channel into 8 ohms and 125 watts per channel into 4 ohms. Its advanced 32-bit digital-to-analogue converter (DAC) ensures precise and dynamic sound reproduction, making it ideal for both casual listeners and audiophiles.
The MODEL M1 also supports high-resolution audio formats such as FLAC, ALAC, WAV, and DSD, providing exceptional audio fidelity for discerning music lovers. With a sleek, minimalist design that features an intuitive OLED display and easy-to-use controls, this amplifier fits perfectly into any home environment.
Additional features include voice control compatibility with Amazon Alexa, Google Assistant, and Apple Siri, as well as integration with major music streaming services like Spotify, Tidal, and Amazon Music. The Marantz MODEL M1 Wireless Streaming Stereo Amplifier is the perfect blend of performance, convenience, and style, offering a premium listening experience for all your favourite music.
Main features of the Marantz MODEL M1 Wireless Streaming Stereo Amplifier
- MODEL M1’s 100W per channel of high-quality, low-distortion amplification delivers pristine sound anywhere, while a subwoofer output delivers room-filling scale in larger spaces.
- However you choose to stream your high-resolution music, MODEL M1 has you covered, with support for HEOS, AirPlay2, Bluetooth, Spotify Connect, and more.
- The expansive feature set yet the diminutive size of M1 makes it the ideal partner for multi-room listening.
- MMDF is a unique and sophisticated digital filtering technology that reveals the natural detail and tonality in sound.
- Unveil superb sound from movies and TV programs with MODEL M1 using HDMI eARC and onboard Dolby Digital+ processing.
Specifications of the Marantz Model M1 Wireless Streaming Stereo Amplifier
| Category | Details |
|---|---|
| Amplifier | |
| Power Amplifier Rated output & THD (8 ohm) | 100 W + 100 W (8 Ω, THD 0.05%) |
| Power Amplifier Rated output & THD (4 ohm) | 125 W + 125 W (4 Ω, 1 kHz, THD 0.05%) |
| Frequency Response | 20 Hz to 20 kHz : ±1 dB |
| Connected loudspeaker Impedance | 4 – 16 Ω |

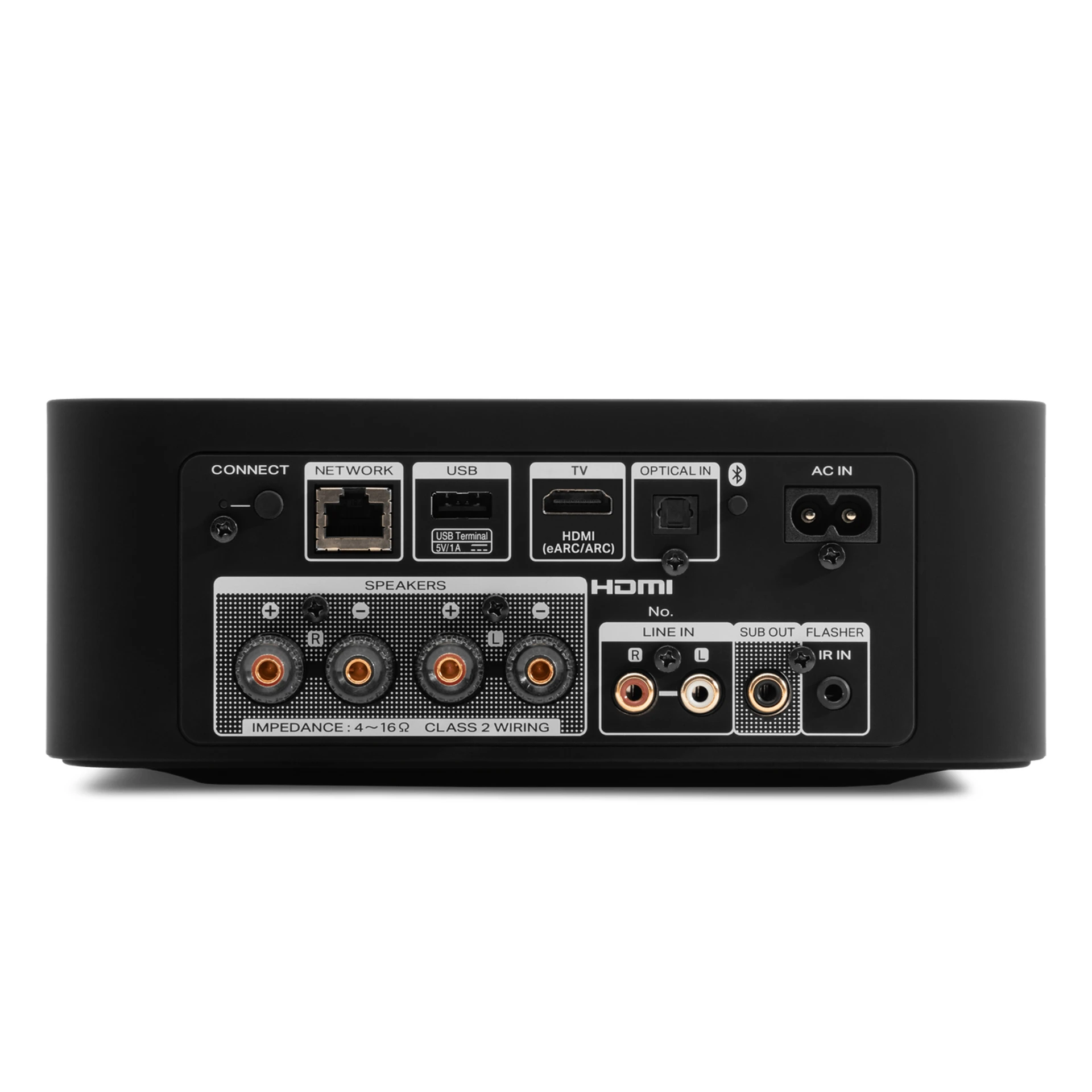

| Audio Inputs / Outputs | |
| Loudspeaker Binding Posts | 4-way binding posts |
| Digital Inputs | HDMI (eARC), TOSLINK |
| Analog Inputs | RCA L/R |
| Subwoofer Out | RCA Mono |
| Inputs Audio Options | |
| Channel Assignments | Stereo (Default), Dual Mono |
| Volume Limit | 80-100% |
| Balance | -15dB to +15dB |
| Adjustable High Pass / Low Pass Filters | 40-250 Hz / 40-120 Hz |
| EQ | Bass, Treble -5dB to +5dB |
| Sound Modes | Stereo, Direct, Virtual, Dialog Enhancer, Night Mode |
| TV Sound Grouping | Yes |
| Audio Format Support | |
| Decoding | Dolby Digital +, Dolby Digital, LPCM, DSD |
| Stereo PCM / Multi-channel PCM | Yes / Yes |
| Stereo File Formats (HEOS network share or USB) | WMA: up to 192 kbps, AAC & MP3: up to 320 kbps, WAV, ALAC, FLAC: up to 24-bit/192kHz, DSD: 2.8 MHz, 5.6 MHz |
| Streaming Technologies | |
| Bluetooth Receive | BT 4.2.X |
| Bluetooth Transmit | No |
| AirPlay | AirPlay 2 |
| Spotify | Spotify Connect |
| Music Services and Sources | |
| Music Services Supported (HEOS®, subject to change and local availability) | Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud |
| Music stored on mobile device | Yes (iOS, Android, Kindle Fire) |
| NAS (Network Attached Storage) | Network share |
| USB Storage Device Playback | Yes (FAT32, NTFS formatted drives) |
| Networking & Control | |
| Wired Connectivity | Ethernet |
| Wireless Connectivity | Dual band, 802.11 a/b/g/n/ac |
| IR Input | 3.5mm |
| IR Learning | Yes |
| Control System Compatibility via TCP/IP | Crestron, Control4, AMX |
| HEOS® App | iOS, Android, Kindle Fire |
| General | |
| Product Color | Black |
| User Interface | Volume up/down, Play / Pause, Multi-colored LED status indicator, Connect button (rear), Bluetooth button (rear) |
| Dimensions (W x D x H) Inches | 9.41 x 3.31 x 8.54 |
| Dimensions (W x D x H) mm | 239 x 84 x 217 |
| Weight (lbs) | 4.84 |
| Weight (kg) | 2.2 |
darpan bhuyan –
Marantz had some big shoes to fill when they named their new compact stereo amp after the legendary Model One and I must truly applaud them on the M1.
I’d first heard them in Tokyo powering a pair of B&W 705 S3 signatures and instantly fell in love with the presentation which was brimming with character while driving demanding speakers. I’d almost picked it up when I reasoned with myself that our friendly neighborhood Hifimart would be a better bet for after sales peace of mind.
Got the M1 immediately upon reaching these shores and while I don’t have any B&Ws, i put posed a tougher challenge with more demanding speakers in the Spendor Classic 2/3 and Tannoy Definition DC8 – feed these speakers ordinary amplification and you’ll get a rather lacklustre and underwhelming performance.
Not with the M1 however – the first thing that struck me when powering the abovementioned speakers was the transparency, refinement and detail in the midrange – you can hear deep into the singers voice and track every nuance without the presentation being thin or glassy as is typical of some class D amps. The M1 also impresses with the highs as it loses none of the sparkle and attack while maintaining incredible treble refinement. The only common characteristic it shares with other class D amps is the incredible bass control they typically exhibit.
How does the M1 compare to my other Class D amps such as the Crown XLS1502, SMSL DA9, 2 x Fosi ZA3 Monoblocks? Well, they are nowhere in the same ballpark SQ wise and as soon as you turn up the decibels, it becomes evident that their power ratings are hugely exaggerated. Only the Crown comes close to the M1 when it comes to bass control.
How does it compare to my Cambridge Audio CXA81 and Willsenton R8? All amps have their own strengths and weaknesses. The CXA81 has a big, bold, and rich presentation with a layered soundstage which trades some transparency and refinement as well as control in the bass to achieve the aforementioned presentation. The Willsenton R8 is a whole other kettle of fish presentation wise with a warm sound that permeates throughout all the frequencies but the treble is rolled off and the bass is nowhere as strong or controlled, not to mention it can’t go loud and sounds lacklustre with warm speakers such as the Spendor and Tannoys. The M1’s stands out in this bunch with its mid-range transparency, top notch treble refinement and bass definition and control.
Suffice to say I’m pleased as a punch that i’ve finally found the perfect small form factor amp that sounds great with higher end speakers.
Anurag K –
The Model M1 really brings the audio to life. It’s a bit on the pricier side, but for those who value high-end sound performance, it’s well worth the investment. It delivers superb sound quality with a remarkable sense of clarity and warmth. As someone who’s been using it for a while with my Bowers & Wilkins CM 5 speakers, I can confidently say it takes the speakers to another level of performance.
Nageshwar –
From the moment I powered it on, the combination delivered an impressive balance of clarity, warmth, and depth. The M1 brings out the best in the Lintons, giving them a smooth, natural sound with a rich midrange and detailed highs, while the bass is full without becoming overpowering. The pairing handles everything from subtle details to complex dynamics with ease. Overall, this setup provides an excellent synergy that elevates my listening experience.
Anand Rangaswamy –
An absolute GEM!
The Marantz Model M1 delivers phenomenal sound quality—crystal clear highs, rich mids, and deep, well-controlled bass. Despite being a Class D amplifier, it doesn’t sound like one at all; the warmth and natural tonality are truly impressive. The soundstage is wide, with excellent instrument separation and detail. It effortlessly drives my Dynaudio Contour bookshelf speakers, delivering ample power and control. Even at lower volumes, the clarity and depth remain outstanding. It’s a must-have for those seeking a network amplifier under one Lakh.
Amarendra –
Marantz has achieved something truly extraordinary with this amp. It is filled to the brim with power and there is no sign of class D or any listening fatigue. In a blind test it will be very difficult to say if it’s class AB or D. The presentation is enormous and the imaging spot on. It drives my difficult to drive KEF LS Meta speakers with ease and lot of enthusiasm. Goes well with all genre of music. Highly recommended.
Ranbir Chawla –
After talking to Anil for a replacement of my old PM8006, I recently got my hands on the Marantz Model M1 Amplifier at a special offer price and it has completely transformed my listening experience. Right out of the box, the design feels premium—sleek, compact, and well-built. Setting it up was straightforward, and it easily integrated into my existing system. Whether streaming music or playing high-resolution audio files, this amp delivers a clean, detailed, and powerful sound that exceeded my expectations.
Compared to the Marantz PM8006, the Model M1 feels like a more modern take on Marantz amplification. The PM8006 has a more traditional analog sound signature, with a warmer tone and slightly rounded top end with limited detail. On the other hand, the Model M1 has a cleaner, more neutral sound with excellent clarity and digital integration. It’s also much more compact and energy-efficient, making it a better fit for those who want high-end audio without the bulk of a traditional integrated amplifier. If you love the Marantz sound but want something more modern with streaming capabilities, the Model M1 is a fantastic choice.
The sound quality is where the Model M1 truly shines. It produces clear highs, rich mids, and a tight, punchy bass without distortion, even at higher volumes. It handles various music genres beautifully, from jazz and classical to rock and electronic. The built-in streaming capabilities are a great addition, allowing seamless access to my favorite music services. Plus, it stays cool even after hours of use, which speaks to its efficient design.
Devendhran –
Good crystal clear output , only issue in selecting the input source is being difficult .. if remote is provided it will be easier
Gurmeet Singh Kalsi –
It’s now more than a year that i am using it along with Q Acoustics 3050i tower speakers and a Subwoofer from SVS (SB3000).
Believe me, you just don’t need anything else. I am using it in a room of size 17 by 20 feet and a height of 10 feet. towers are kept at about 6.5 feet apart and hen you listen to the music while sitting right at the center and a distance of about 8 to 10 feet from the speakers, you only hear music coming right from the center and speakers seems to be doing nothing as if the sound is coming from behind the front wall and not from the speakers. Output of this M1 is so huge that i do not play beyond 30% of the max. volume level. Also I have offloaded the lower frequency loan to the Sub (low pass filter set at 80Hz) and set the High pass filter also at 80Hz. That way the load on the amplifier in M1 got shifted to the internal amplifier of the Sub. Overall M1 is the most compact and feature rich device which most of the audience may need. Only thing missing is phono amp and for that I bought RIGA P1 Pro (Which has a built in phono pre amp). That way my setup is now complete with
A TV attached via HDMI ARC,
A Turntable attached via RCA
A Projector attached via Optical
A Sub attached via Sub Out
A USB pend drive attached via USB Port (Contains my favourite songs)
My Phone attached via bluetooth (HEOS App.)
Now I am thinking of experimenting with High Current Class AB Amplifier to see what it do to the speakers. Will share my thoughts when I am done doing that. Hopefully i might be able to edit my review in the future.
Thanks for reading so long review.
Randhir Das –
As always was a great experience dealing with Anil. The amp has exceeded my expectations!!
