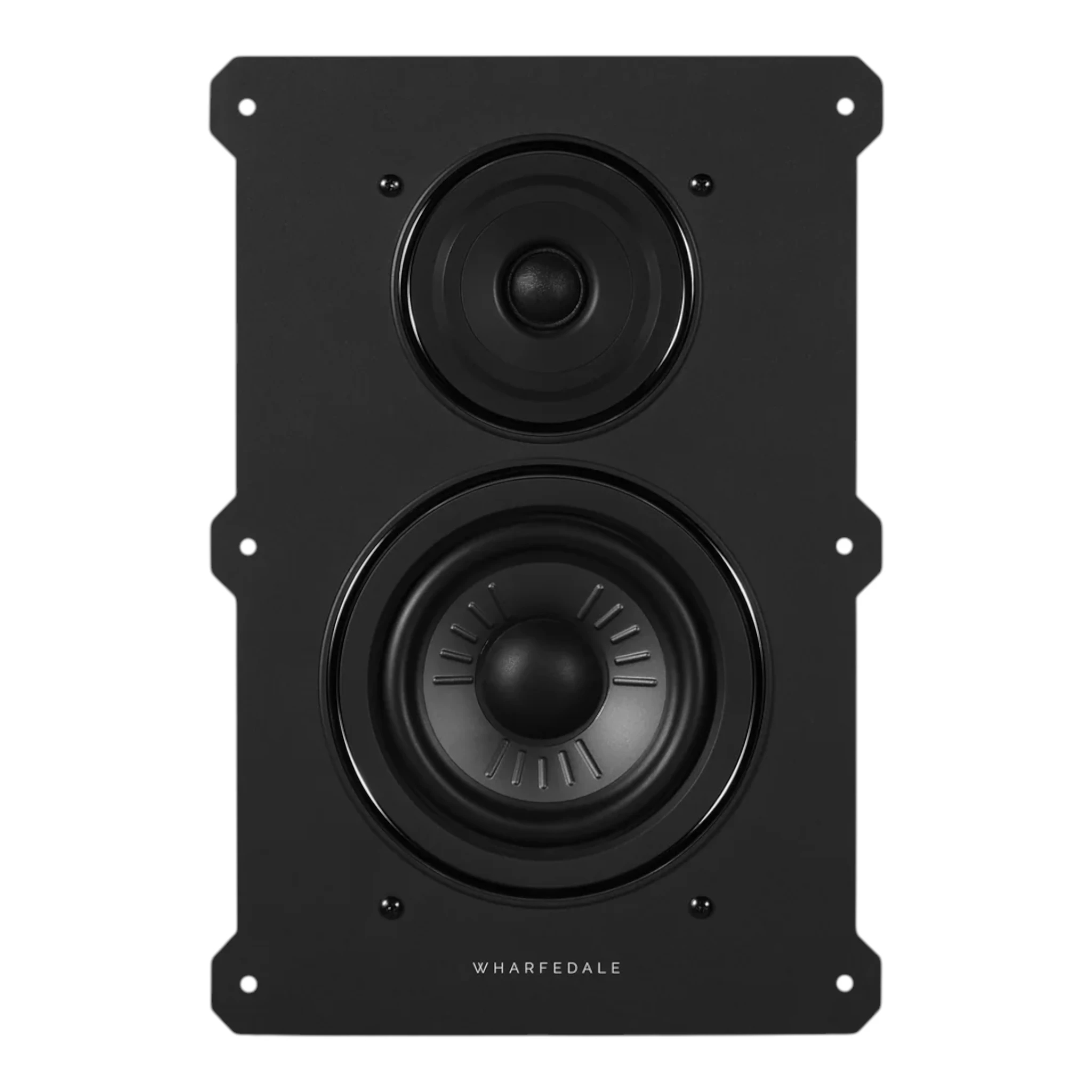

Wharfedale Diamond IW-1 In-Wall Speaker
The Wharfedale Diamond IW-1 In-Wall Speaker create a truly immersive audio experience that will transport you right into the heart of the action. These speakers are designed to blend seamlessly into your entertainment setup, offering a discreet and integrated solution that will take your movie-watching experience to the next level. With a lifelike sound that envelops you from all angles, you’ll feel as though you’re right in the middle of the action, experiencing every thrill and emotion in effortless yet stunning detail.
Wharfedale’s commitment to home theatre design has been consistent for many years and across product series. It is clear to see the DIAMOND 12 series’ success in this category. Now, with the DIAMOND IW and DIAMOND OW models, the emphasis is on hearing rather than seeing, allowing for a truly immersive audio experience.
Specification of the Wharfedale Diamond IW-1 In-Wall Speaker
| Model | DIAMOND IW-1 |
|---|---|
| General description | 2-way ‘in wall’ loudspeaker |
| Enclosure type | closed-box |
| Transducer complement | 2-way |
| Bass driver | 6.5″ (150mm) advanced PP Cone |
| Treble driver | 1″ (25mm) Textile Dome |
| AV shield | No |
| Sensitivity (2.83V@ 1m) | 86dB |
| Recommended amplifier power | 20-100W |
| Peak power handling | 100W |
| Peak SPL | 96dB |
| Nominal impedance | 4Ω Compatible |
| Minimum impedance | 3.9Ω |
| Frequency response (+/-3dB) | 80Hz~20kHz |
| Bass extension (-6dB) | 75Hz |
| Crossover frequency | 2.6kHz |
| Cabinet Volume (in litres) | 4.86L |
| Dimensions (mm) | |
| Height | 360mm |
| Width | 200mm |
| Depth (with grille+bracket) | 141mm |
| Carton size | 315 x 215 x 460mm |
| Net weight | 5.5kg/pcs |
| Gross weight | 6.0kg/ctn |
| Standard accessories | user manual, certificate |
| Optional accessories | L type bracket \ MS screw \ Hanging buckle \ W wall bracket |
