Audiolab 9000P Power Amplifier
The Audiolab 9000P Power Amplifier is a dedicated power amplifier designed specifically for the 9000 series, like the 9000Q preamplifier.
Technological Features

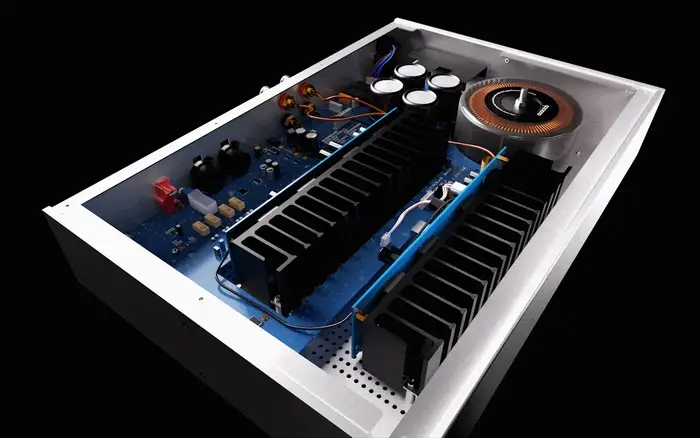

A key to the Audiolab performance is the Audiolab-standard CFB (Complementary Feedback) topology, which ensures superior linearity and excellent thermal stability, as the idle current is kept independent of the temperature of the output transistors. An all-new and custom-specified 320VA toroidal transformer, followed by 4 x 15,000uF reservoir capacity (60,000uF), helps the amp maintain firm control of the music whilst enabling excellent dynamic range.
Power and Performance
The Audiolab 9000P power amplifier matches the 9000A with a dedicated 100W per channel into 8 ohms, making it the perfect like-for-like accompaniment for the 9000Q preamplifier.
However, following the success and acclaim of the Audiolab 8300MB mono power amplifier option, the 9000P offers dual functionality with bridged-mode functionality, thus converting it to a ‘monoblock’ power amplifier that offers 300W into 8 ohms.
Design and Build
Designed in line with the smart aesthetic of the 9000 series—solidly built and impeccably finished—the Audiolab 9000P Power Amplifier is the perfect match for all 9000 components.
When it comes to power amplifiers, the Audiolab 9000P Power Amplifier stands unmatched at its price point, with few able to rival its exceptional specifications, performance, and quality. Its versatility is a testament to its greatness—whether used as a stereo power amplifier with a preamplifier, streamer, or transport, as an add-on to enhance an existing system or in a monoblock setup for those demanding higher power. The 9000P truly sets a new standard in the world of audio excellence.
Specifications of the Audiolab 9000P Power Amplifier
| Model | 9000P |
| General Description | Power Amplifier |
| Design Philosophy and Core Technology | Class AB power amplifier CFB (Complementary Feedback Technology) Stereo/Bridge mode |
| Inputs | 1 x Analogue (Stereo), 1 x XLR (Stereo), 1 x 12V Trigger |
| Outputs | 1 x Stereo Speaker |
| Power Amplifier Section (STEREO) | |
| Gain | 29dB (RCA) / 23dB (XLR) |
| Rated Power Output | Stereo: 2 x 100W (8 ohms, THD <1%) Stereo: 2 x 160W (4 ohms, THD <1%) Bridged (Mono): 300W (8 ohms, THD <1%) Bridged (Mono): 380W (4 ohms, THD <1%) |
| Frequency Response | 20Hz – 20kHz (+/-0.3dB) |
| Total Harmonic Distortion (THD) | <0.002% (1kHz) |
| Input Sensitivity | 1Vrms (RCA) 2Vrms (XLR) |
| Input Impedance | 10k ohms |
| Signal-to-Noise Ratio (S/N) | > 112dB (A-weighted) |
| Max. Output Current | 15A |
| General | |
| Standby Power Consumption | <0.5W |
| Net Weight | 9.2kg |
| Gross Weight | 10.6kg |
| Dimensions (mm) (W x H x D) | 444 x 90 x 327 mm |
| Carton Size (mm) (W x H x D) | 514 x 165 x 470 mm |
| Finish | Silver |
| Power Requirements (depending on region) | 220-240V – 50/60Hz |
| Standard Accessories | Power Cord, User Manual |
