Q Acoustics Concept 90 Centre Speaker
The Q Acoustics Concept 90 is a high-performance centre channel speaker to deliver astonishingly dynamic and ultra-clear dialogue.
Star role in home cinema
A centre channel speaker in a 5.1 home cinema set-up plays a crucial role to convey a realistic surround sound experience. More than just supporting the front left and right channel speakers, a centre channel anchors the dialogue while also seamlessly being part of the whole soundstage. As a key player in the Concept 5.1 package, the Concept 90 is our most advanced and striking centre channel speaker, featuring many anti-resonance technologies that appear in its Concept stablemates to deliver a focused but captivating cinema sound.

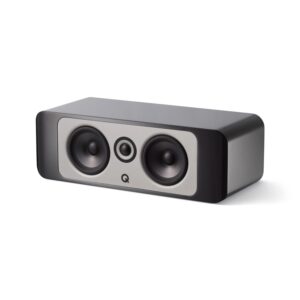

Boasting a three-way design with two 125mm mid/bass drivers flanking a 25mm tweeter, the Concept 90 brings ultra-clear dialogue and spellbinding effects to movie watching sessions through it specially developed driver designs.
With sound synergy important in a home cinema speaker system, the Concept 90 harbours the same hermetically sealed and decoupled tweeter enclosure and driver assembly baffle-mounted design as the Concept 30 and 50. The same isolation base, featuring two plates separated by suspension spheres, is also present to isolate the cabinet from external resonances – a crucial design when the speaker is placed straight onto a TV cabinet, while also providing tighter audio and greater depth to your music and movies.

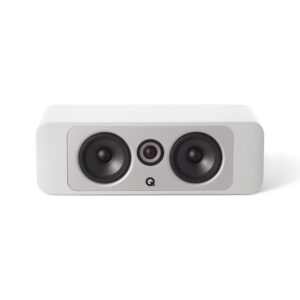

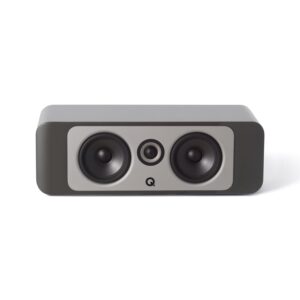

Matching the design profile of Concept 30 and 50, the Concept 90 arrives in a trio of finishes – black, white or silver – designed to blend into any Concept 5.1 speaker system you choose to assemble from the range. At the forefront of any surround sound set-up, this stylish centre channel will look at home perched on any cabinet in any interior space.
Gelcore™ cabinet design
All these resonances eliminating innovations are housed in a Gelcore™ cabinet design to deliver a speaker low on interior influences that can colour the sound. It ensures the Concept 90 can dispatch crystal clear dialogue and improved depth of sound that will elevate the film-watching experience.
Introduced in the original Concept speaker, the Gelcore™ cabinet construction is designed to minimise high-frequency noise. A unique design comprised of a non-setting gel sandwiched between two individual layers, this specially developed adhesive dissipates high-frequency vibrations, generated by the moving drivers, into heat to maintain a focused audio performance, whether watching movies or listening to music.
SPECIFICATIONS of the Q Acoustics Concept 90 Centre Speaker
- Bass unit 2 x 125 mm (5.0 in)
- Treble unit 1 x 25 mm (0.9 in)
- Frequency response(-6dB) 67 Hz – 30 kHz
- Nominal impedance 6 Ω
- Minimum impedance 3.7 Ω
- Sensitivity (2.83V @ 1kHz)90 dB/w/m
- Recommended amplifier power 25-150 W
- Crossover frequency 2.1 kHz
- Distortion (120Hz – 20kHz, @2.83Vrms) <0.2%
- Effective volume 11 L
- Dimensions (per loudspeaker / HxWxD) 184 x 550 x 259 mm (7.2 x 21.7 x 10.2 in)
- Weight (per loudspeaker) 12.3 kg (27.1 lbs)
IN THE BOX of the Q Acoustics Concept 90 Centre Speaker
- 1 x Concept 90 speaker
- 1x Speaker grille
- 2x Foam bungs
- 1x Owner’s manual
