Wharfedale DIY KIT
Fifty years after inspiring a generation of DIY enthusiasts, Wharfedale proudly presents a limited edition release of two brand-new kits. These kits not only celebrate our brand’s rich history but also honour the revival of the DIY movement, following the legacy of the Wharfedale Heritage Series. Each kit—available in both 2-way and 3-way configurations—is limited to just 500 units worldwide.
Inside each kit, you’ll find everything needed to build your own high-performance speakers: fully assembled crossovers, low-frequency drivers, midrange drivers (included in the 3-way kit), and meticulously matched high-frequency drivers. Each component is crafted to the exacting standards that Wharfedale is renowned for, with specifications and tuning overseen by Peter Comeau. The kit also includes terminal panels, connecting cables, full-size cutting templates, and detailed instructions—just like the kits of a half-century ago.

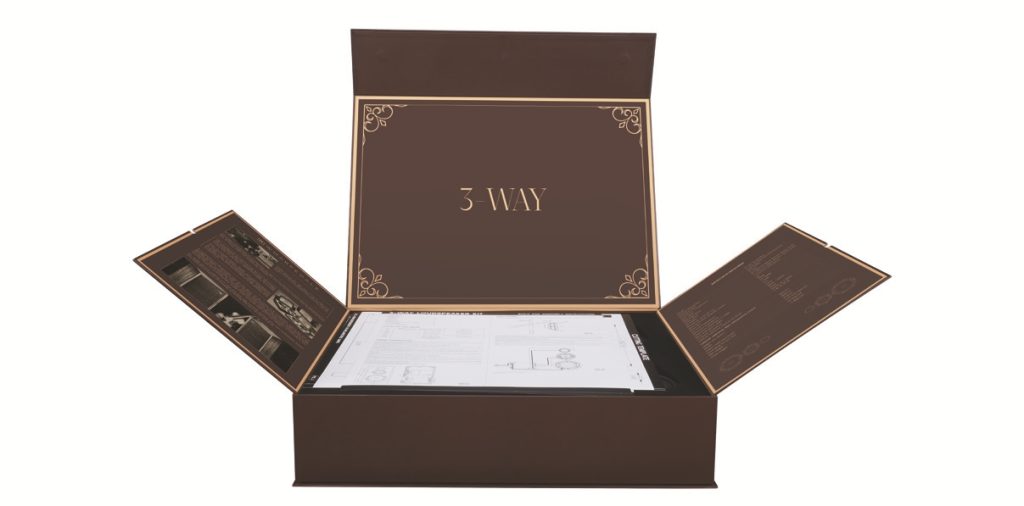

Presented in a luxurious gift box, these kits are not only collector’s items but also the perfect project for hobbyists. The Wharfedale 2-way and 3-way kits offer an exciting opportunity to create a masterpiece that you can take pride in.
Wharfedale DIY KIT Key Features:
50 Years in the Making
A luxurious reimagining of the classic Wharfedale DIY kit, honouring half a century of innovation.
Your Way: 2-Way or 3-Way
Choose between a 2-way kit featuring a 6.5” woven Kevlar low-frequency driver and a 1” soft dome high-frequency driver, or a 3-way kit with an 8” woven Kevlar low-frequency driver, a 5” woven Kevlar midrange driver, and a perfectly matched 1” soft dome high-frequency driver.
Everything You Need in One Box
Each kit includes all the speaker drivers, a crossover, cables, terminals, port tubes, comprehensive instructions, cutting templates and all necessary fixings.
Expertly Guided
Comprehensive instructions, cutting templates, and expert guidance are provided under the direction of Wharfedale’s Acoustic Director, Peter Comeau.
Limited Edition
Presented in a luxurious gift box, these 2-way and 3-way kits are limited to just 500 pieces worldwide.
2-Way DIY KIT Specifications:
- Model: 2-Way Kit Speaker
- General Description: 2-way vented-box/standmount
- Enclosure Type: Bass Reflex
- Transducer Complement: 2-way
- Bass Driver: 6.5″ (150mm) Black Woven Kevlar Cone
- Treble Driver: 1″ (25mm) Soft Dome
- AV Shield: No
- Sensitivity (2.0V @ 1m): 87dB
- Recommended Amplifier Power: 20-120W
- Peak SPL: 95dB
- Nominal Impedance: 4Ω
- Cabinet Reference Volume: 14L
- Cabinet Reference Max Dimensions:
- Height: 340mm
- Width: 240mm
- Depth (including terminals): 264mm
- Packaging Kit Box Size: 570 x 420 x 120mm
- Net Weight: 4.8kg/set
- Gross Weight: 5.8kg/ctn
3-Way DIY KIT Specifications:
- Model: 3-Way Kit Speaker
- General Description: 3-way vented-box/standmount
- Enclosure Type: Bass Reflex
- Transducer Complement: 3-way
- Bass Driver: 8″ (200mm) Black Woven Kevlar Cone
- Midrange Driver: 5″ (135mm) Black Woven Kevlar Cone
- Treble Driver: 1″ (25mm) Soft Dome
- AV Shield: No
- Sensitivity (2.0V @ 1m): 88dB
- Recommended Amplifier Power: 25-200W
- Peak SPL: 110dB
- Nominal Impedance: 4Ω
- Cabinet Reference Volume: 4.8L & 33.6L
- Cabinet Reference Max Dimensions:
- Height (on plinth): 565mm
- Width: 300mm
- Depth (including terminals): 318mm
- Packaging Kit Box Size: 710 x 510 x 160mm
- Net Weight: 10.5kg/set
- Gross Weight: 11.8kg/ctn
